J+J S55 Electric Actuator
Used
In stock1 unitReady to ship
289,99$
Electric Actuator
High-performance 1/4 turn electric actuator with 24“240 V AC/DC input, 60 Nm torque, 14 sec / 90° operation, and IP67 protection. Designed for reliable valve automation in industrial environments.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
J+J S55 Electric Actuator
The J+J S55 Electric Actuator from the J3CS series is a high-performance solution engineered for precise 1/4 turn valve automation. Designed for reliability, versatility, and smooth operation, it supports a wide voltage range and delivers consistent torque output, making it suitable for demanding industrial and commercial flow control systems. Its robust construction and IP67 protection rating ensure excellent durability in harsh environments, while the efficient actuation time provides fast and accurate positioning.

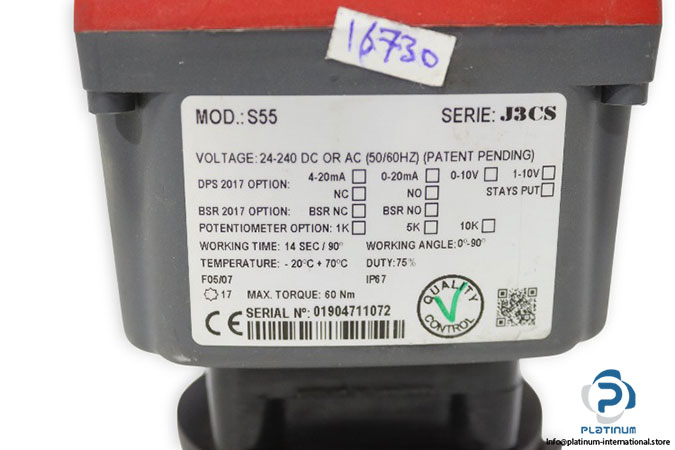

Manufacturer: J+J
Type: Electric Actuator For 1/4 Turn Valves
Model: S55
Series: J3CS
Serial No.: 01904711072
| Voltage | 24 to 240 V DC or AC (50/60 Hz), Patent Pending |
| Current | 1.1 A |
| Duty | 75% |
| Working Time | 14 sec / 90° |
| Working Angle | 0 to 90° |
| Max. Torque | 60 Nm |
| Temperature Range | -20°C to +70°C |
| Protection Rating | IP67 |
