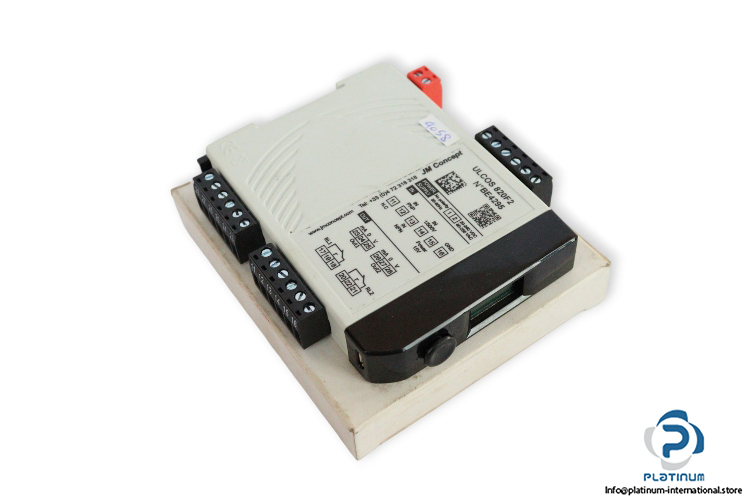

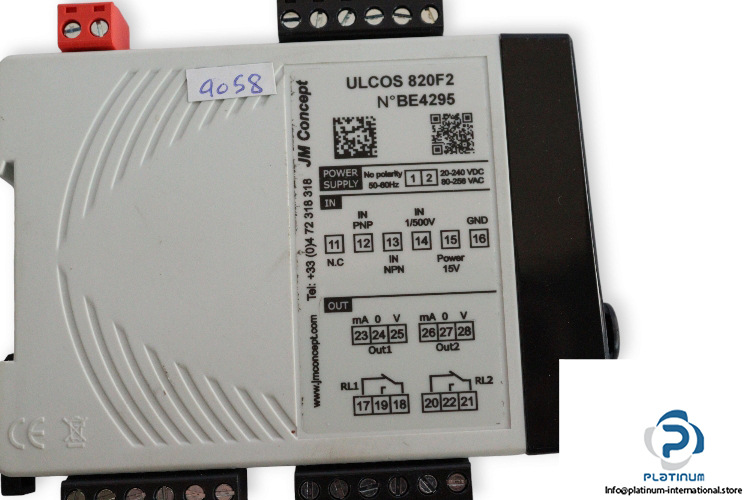

JM Concept Ulcos 820F2 Frequency Input Digital Transmitter

Manufacture: JM Concept
Type: Frequency Input Digital Transmitter
Model: ULCOS820F2

Power supply: 20 … 240 V DC,80 … 256 V AC
Current Output: Standard scales: 0 … 20 mA ; 4 … 20 mA
Adjustable scales: from 0 mA … 22 mA
Number of characters: 4
Numbers of lines: 4
Input analog/digital conversion: 16 bits
Output analog/digital conversion: 16 bits
Output relay: 2 change over contact
NPN voltage and PNP dry contact: 1 … 500 V
Operating temperature: -10 … 60°C
Protection degree: IP20
Dimensions: 76 x 17.5 x 106 mm
