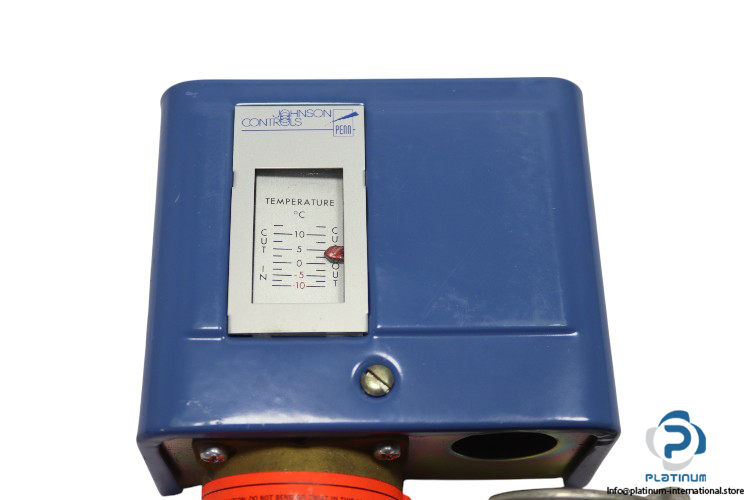

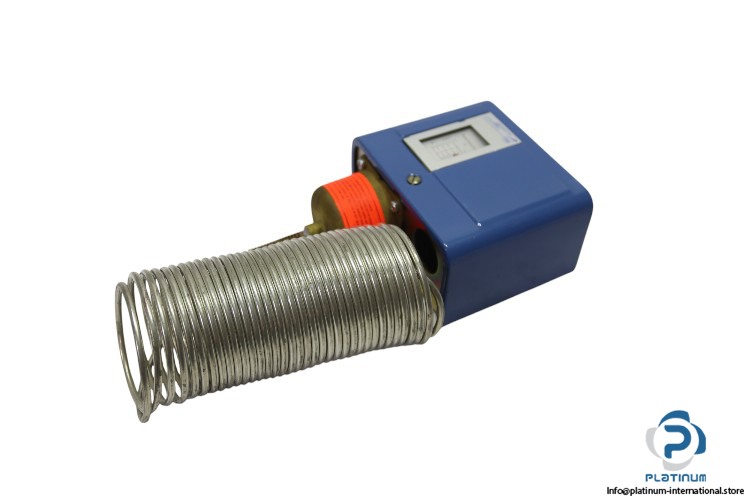

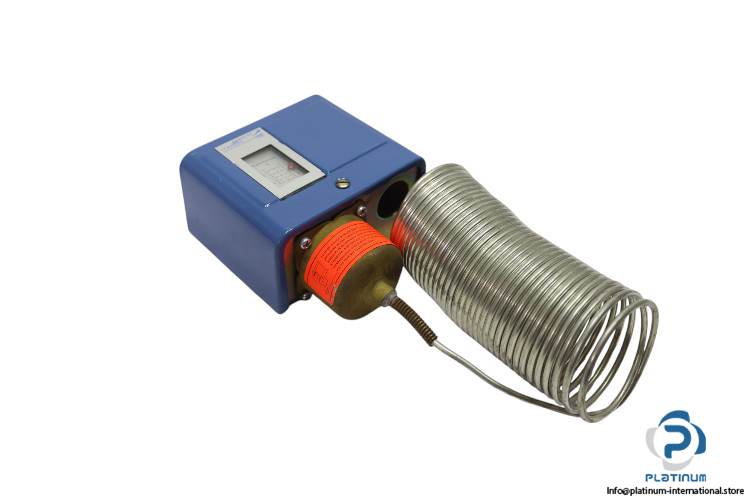

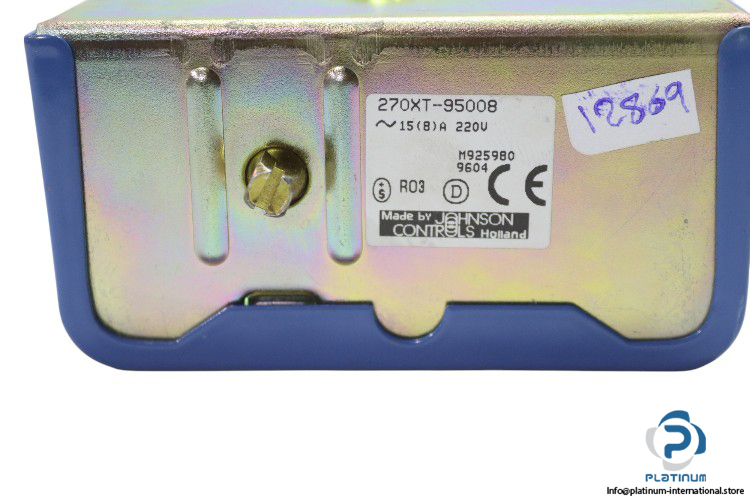

Johnson Controls 270XT-95008 Freeze Protection Thermostat

Johnson Controls 270XT-95008 Freeze Protection Thermostat

The Johnson Controls 270XT-95008 Freeze Protection Thermostat is designed to provide reliable temperature control in cold environments. With an adjustable temperature range of -10 to +12 °C and a maximum bulb temperature of 200 °C, it is ideal for preventing freezing in critical systems. Featuring a galvanized steel housing, it is built for durability and long-term performance.

Manufacturer: JOHNSON CONTROLS

Type: Freeze Protection Thermostat

Model: 270XT-95008

Technical Data:

• Bulb Length: 6 m
• Protection Class: IP30
• Sensing Element: 3.2 mm x 6 m
• Adjustable Temperature Range: -10 / +12 °C
• Operating Temperature: -24 / +18 °C
• Maximum Bulb Temperature: 200 °C
• Housing Material: Galvanized steel
• Dimensions: 82 x 101 x 53 mm
