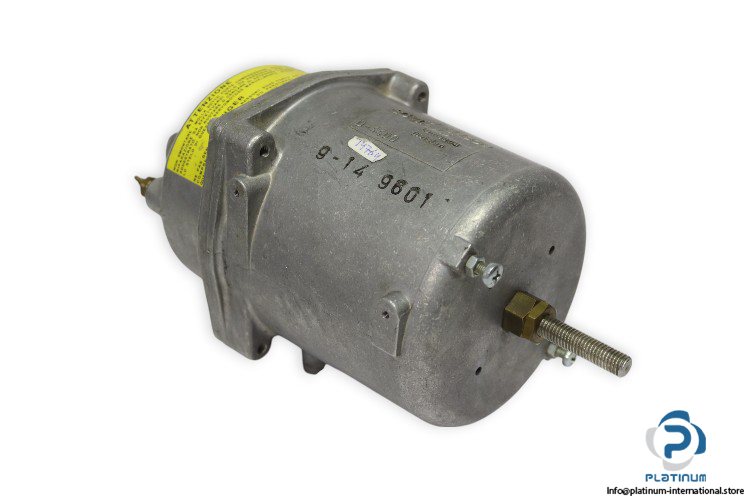

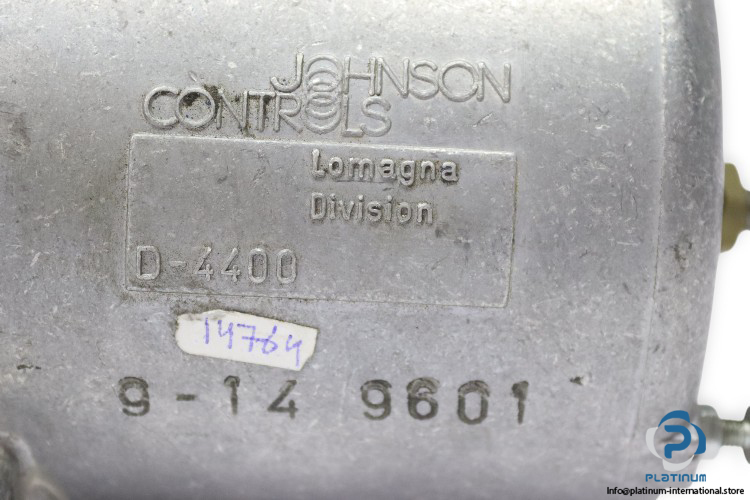

Johnson Controls D-4400 9-14 9601 Pneumatic Piston Actuator
Used
In stock1 unitReady to ship
388,88$
PNEUMATIC PISTON ACTUATOR
Direct-acting actuator with 64“76 mm stroke and V-9502 pilot positioner. Built for HVAC and damper control applications with durable die-cast aluminum housing.ActingActuatorAirAluminumCastconnectionControlsD4400damperDieDirectG1/8HousingHvacIndustrialJohnsonModelPilotPistonPneumaticPositionerReturnspringV-9502
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
JOHNSON CONTROLS D4400 PNEUMATIC PISTON ACTUATOR
Engineered for precision airflow control in HVAC and industrial applications, this pneumatic piston actuator offers a robust, direct-acting mechanism for consistent and accurate performance. Designed to withstand harsh operating conditions, it is ideal for damper regulation with reliable spring return action.
Manufacturer: Johnson Controls
Type: Pneumatic Piston Actuator
ID No.: 9-149601
Series: D4400
| Fluid | Air |
| Stroke | 64 to 76 mm |
| Supply Pressure | 138 to 172 kPa |
| Nominal Spring Range | 21 to 103 kPa |
| Principle | Direct Acting |
| Control Air Pressure | 25 PSIG (172 kPa) max |
| Damper Area | 97 cm² |
| Pilot Positioner | V-9502 |
| Ambient Temperature Range | -30 to 65°C |
| Connection | G1/8 |
| Material | Die Cast Aluminum |
