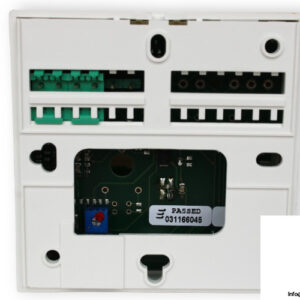

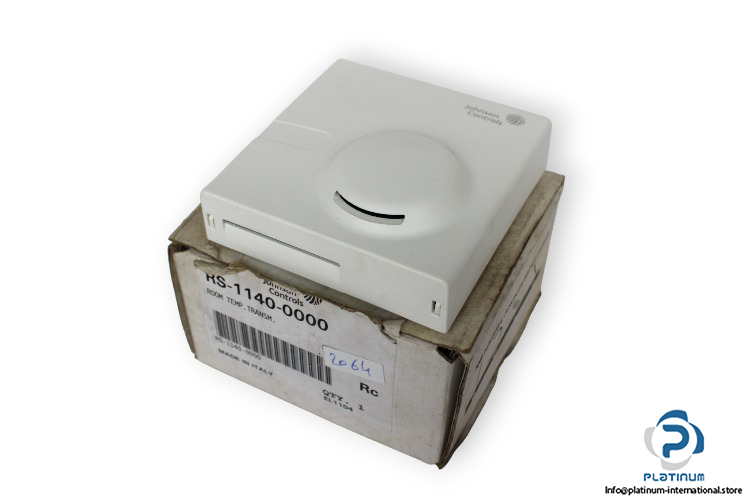

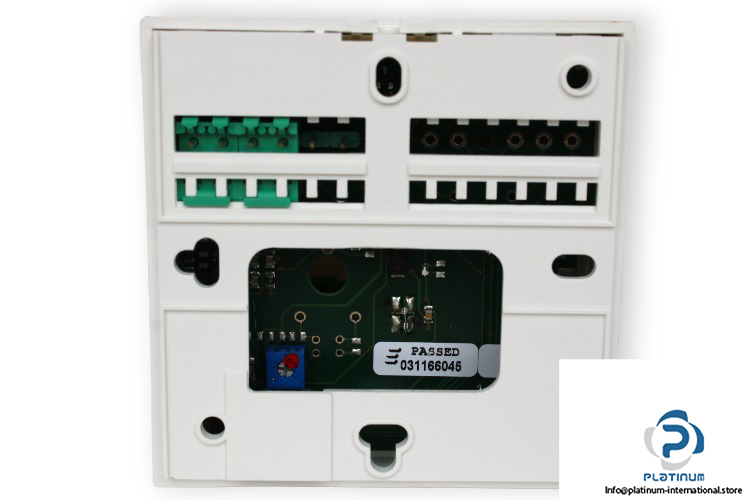

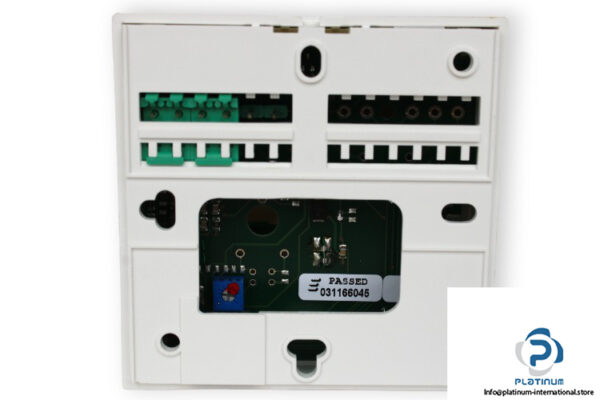

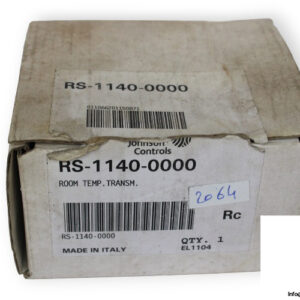

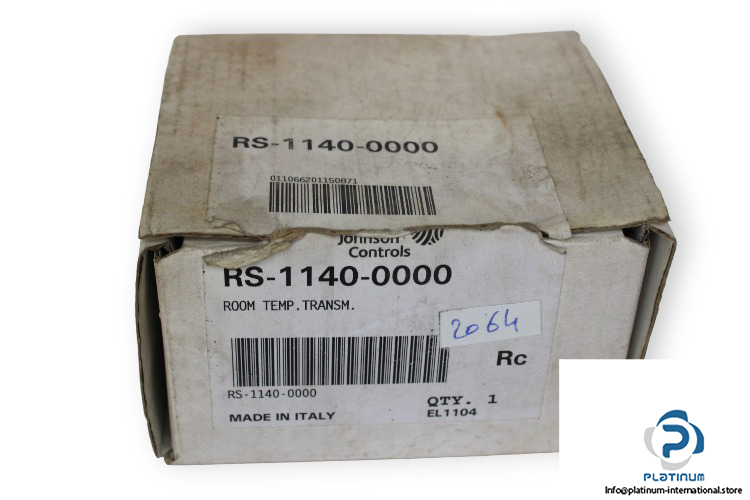

Johnson Controls RS-1140-0000 Room Command Module

Manufacturer: Johnson Controls

Type: Room Command Module

Model: RS-1140-0000

Supply Voltage: 15 Vdc ± 5

Power Consumption: 7 mA, no load / 9.5 mA, max load

Sensing Element: Pt1000 class B, EN 60751

Output signal for temperature: Active 0…10 V DC, linear 0 V ≡ 0°C, 10 V ≡ 40°C

Output load: min. 5 kΩ, max. 2mA

Mode Selector: momentary contact switch (5 V at 1 mA)

Mode Indicator: green LED (5 V, 4 mA)

Terminations: Screw terminal box mounted on base for 1 x 1,5 mm² / 14 AWG (maximum) cable

Material: ABS+PC; self estinguishing UL 94 HB

Degree of protection: IP30

Dimensions: 80 x 80 x 32 mm
