Joucomatic 437 00 816 Pneumatic Cylinder
Used
In stock2 unitsReady to ship
Pneumatic Cylinder
The Joucomatic 43700816 Pneumatic Cylinder features a 100 mm bore, 100 mm stroke, and double-acting operation for heavy-duty applications such as press machines, textile, packaging, and automation systems.10043700816ActingActuatorAutomationboreCylinderDoubleDutyHeavyIndustrialJoucomaticLinearMachinemmPackagingPneumaticPneumaticsPress
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

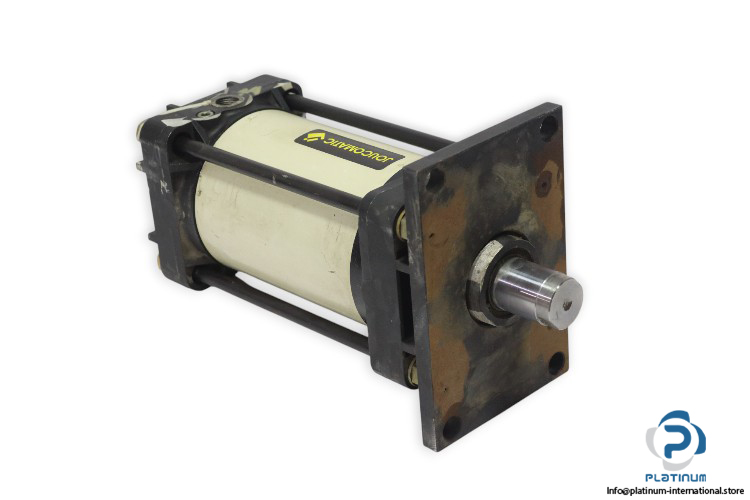

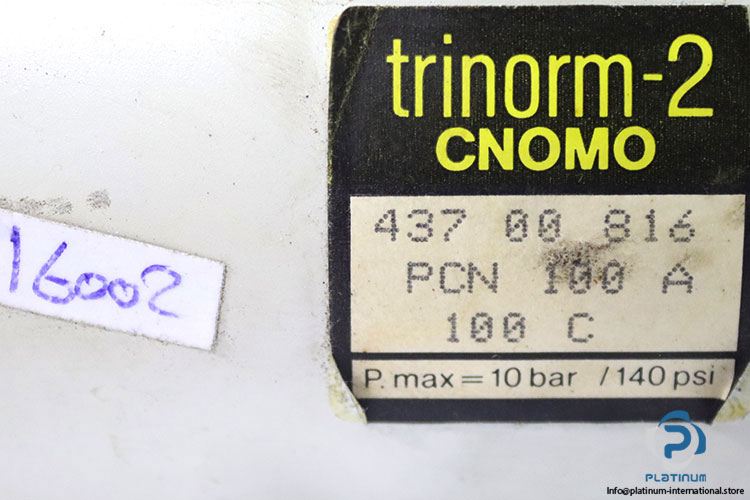

Joucomatic 43700816 Pneumatic Cylinder
The Joucomatic 43700816 Pneumatic Cylinder is designed for heavy-duty industrial applications requiring reliable linear actuation. With its robust construction, large bore diameter, and double-acting operation, it ensures high performance in demanding environments such as press machines, textile, packaging, and general automation industries.
Manufacturer: Joucomatic
Type: Pneumatic Cylinder
Model: 43700816
| Applications | Heavy-duty linear actuation, Press machines, Textile, paper, packaging, and general automation, Suitable for high-force actuation due to large bore |
| Medium | Compressed air, filtered and lubricated (optional non-lubricated use depending on seals) |
| Bore Diameter | 100 mm |
| Stroke Length | 100 mm |
| Rod Diameter | 30 mm |
| Operating Pressure | 10 bar / 140 psi |
| Rod Direction | One Side |
| Piston Rod End | Male |
| Port Size | G3/8 |
| Operation | Double-acting |
| Ambient Temperature | 100°C |
| Construction | Barrel: Aluminum; End Covers: Cast iron / steel with tie rods; Piston Rod: Hardened steel, chrome plated |
