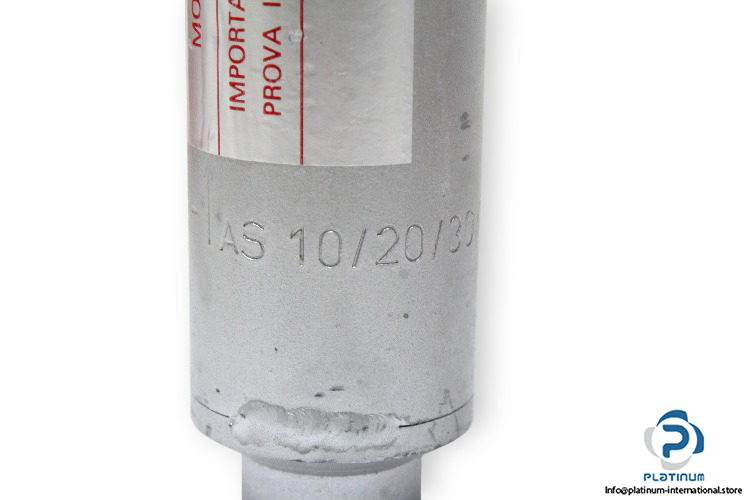

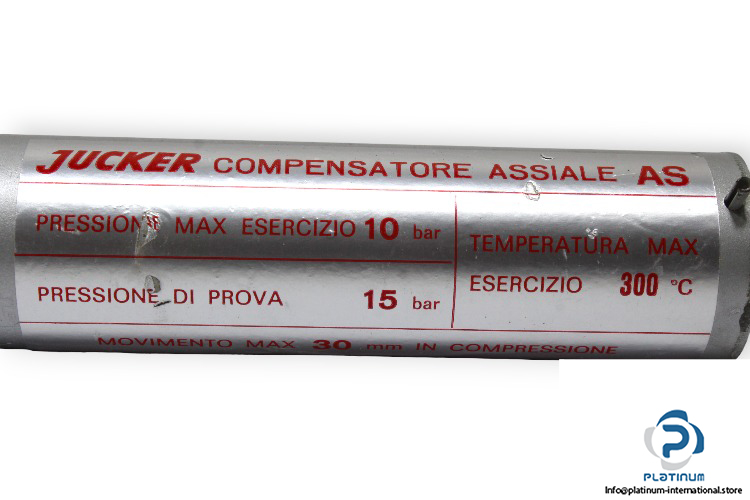

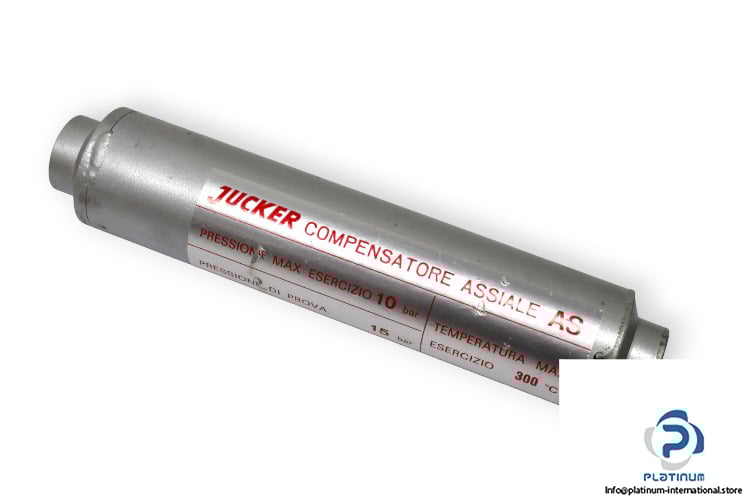

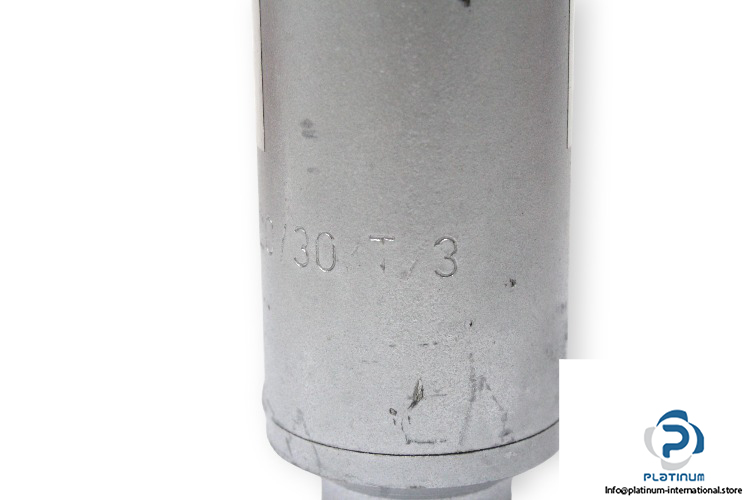

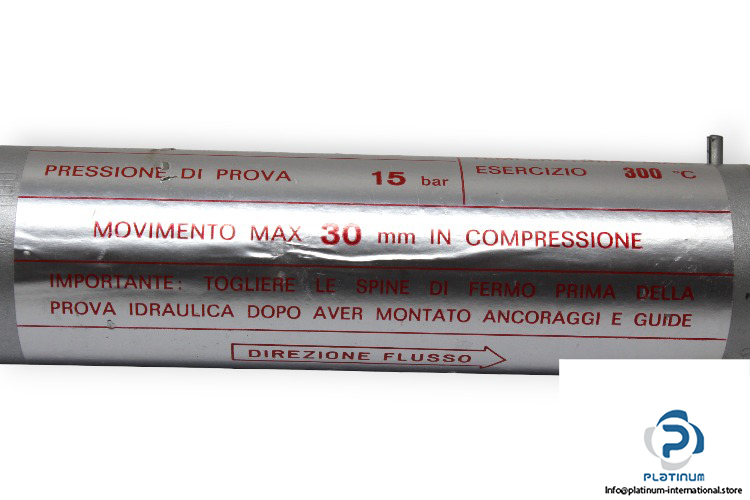

Jucker AS 10/20/30/T/3 Expansion Compensator

Manufacturer: JUCKER
Type: Expansion Compensator
Model: AS 10/20/30/T/3

Media: Saturated and superheated steam, hot and superheated water, diathermic oil.
Max. Pressure: 10 bar
Proof Pressure: 15 bar
Size: DN 20
Average Duration: 5000 cycles with maximum movement
Max. Movement: 30 mm, in compression
Diameter of hole: 26,9 mm
Length,Outer Diameter: 206,42 mm
Max. Temperature Range: 300 °C
