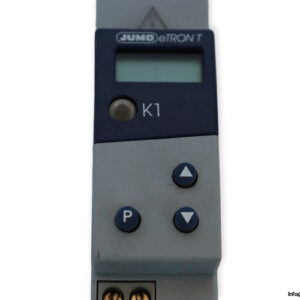

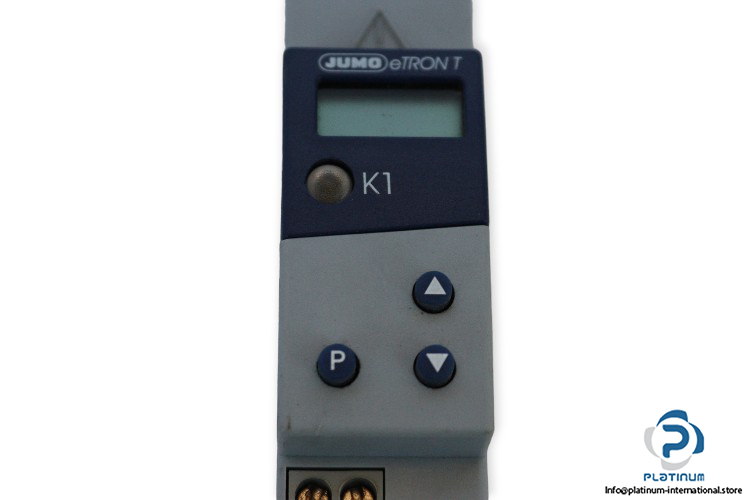

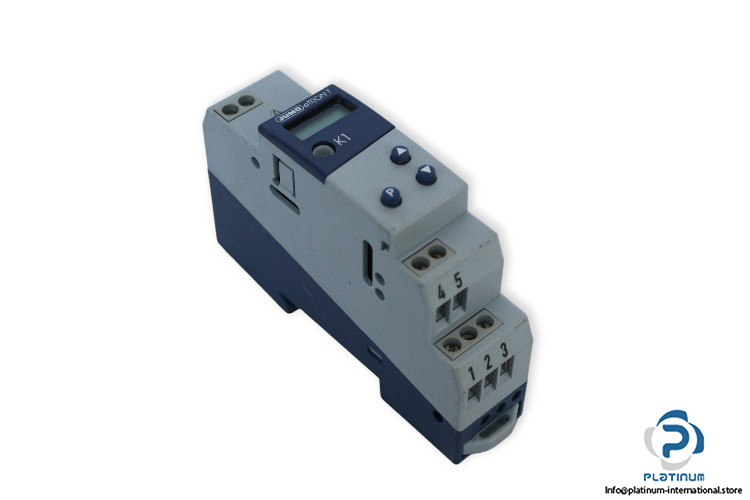

Jumo 701050/811-31 Digital Thermostat

Manufacture: Jumo
Type: Digital Thermostat
Model: 701050/811-31

Supply Voltage: 12 … 24 V DC / 24 V AC
Power consumption: < 4VA
Input Measurement: Pt100
Temperature Measurement range: -200 … 600°C
Frequency: 48 … 63 Hz
Number of Relays: 1 changeover contact (CO) 10 A,250 V AC
Protection degree: IP20
Data backup: EEPROM
Connection: via screw terminals for wire cross-sections up to 2.5 mm²
Material: polycarbonate
Mounting: 35mm x 7.5mm DIN rail to EN 50 022
Ambient temperature range: 0 … +55°C
Dimensions: 93.5 x 22.5 x 61.5 mm
