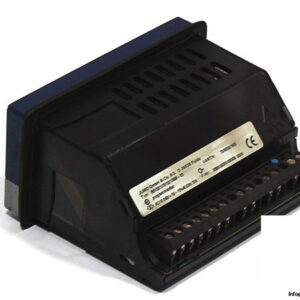

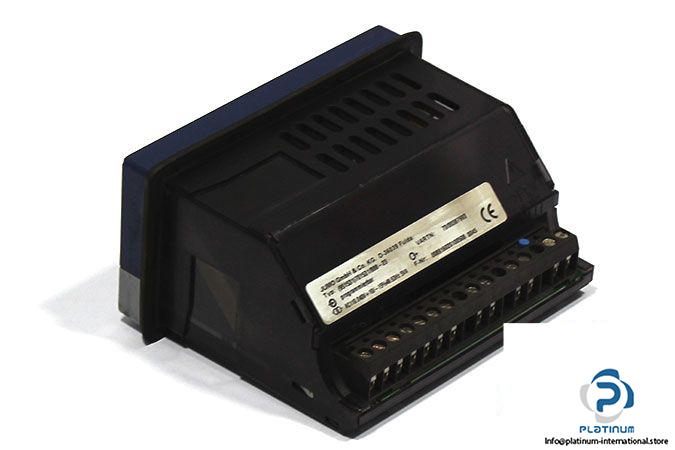

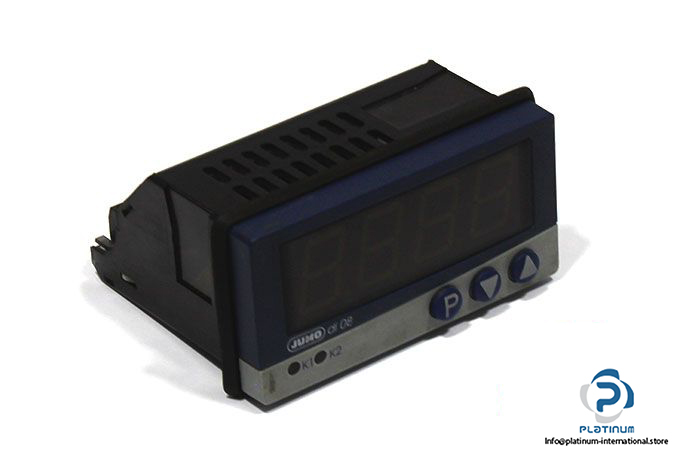

Jumo 701531/888-23 Digital Microprocessor Indicator

Manufacturer: Jumo

Type: Digital Microprocessor Indicator

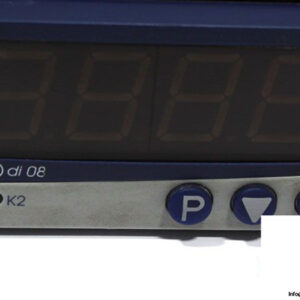

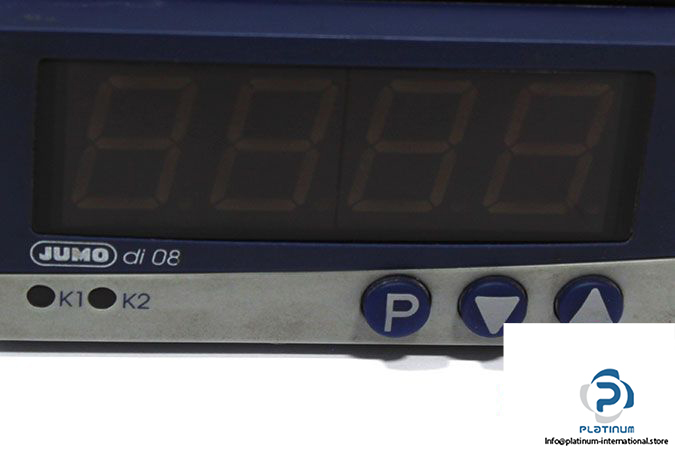

Series: di 08

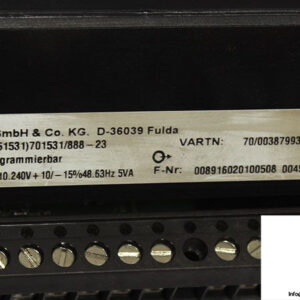

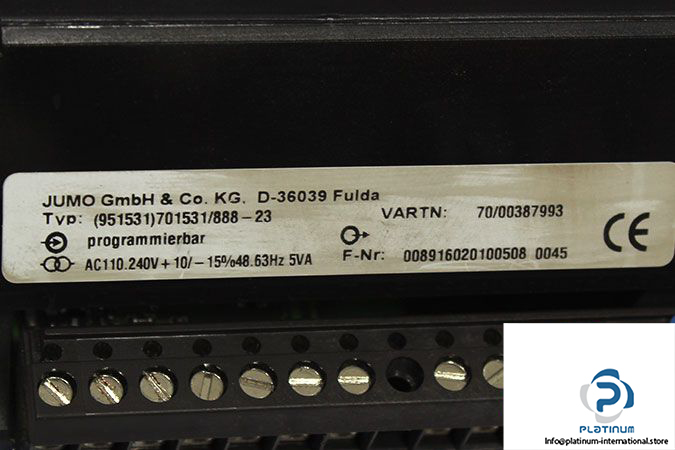

Model: (951531) 701531/888-23

Features

• Structured Operating and Programming Layout
• Customer-Specific Linearization Correction
• 2 Limit Comparators for Limit Monitoring
• Digital Input Filter with Programmable Filter Time Constant
• Time-Delayed Switching, Programmable Per Relay
• Switch-on Delay After Power-on is Programmable

Application

• Thermocouples Type L, J, U, T, K, E, N, S, R, B, D, C
• RTD Temperature Probe Pt100, Pt1000, KTY11-6
• Resistance Transmitter, Potentiometer

Signal Input Current: 0…20mA, 4…20mA

Signal Input Voltage: 0…10V, 2…10V

Supply Voltage: 110…240 V AC

Current Limiting: 20 mA

Load Resistance: Rload ≥ 250 Ω

Frequency: 48…63 Hz

Rated Power: 5 VA

Power Drawn: 7VA max.

Operation: Through Floating Contact

Output 1: Relay

Output 2: Relay and Parallel Logic Output

Data Backup: EEPROM

Ambient Temperature: -0…55 °C

Dimensions: 80 x 96 x 47 mm

Protection Class: IP20

Interference Emission: Class B

Weight: 0.17 kg
