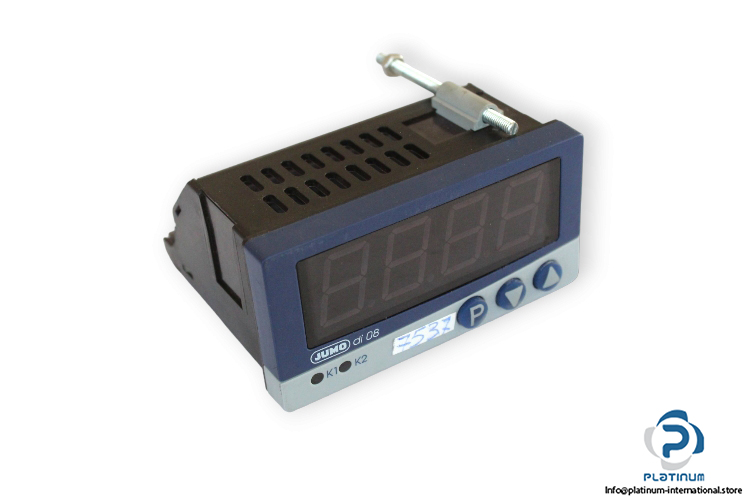

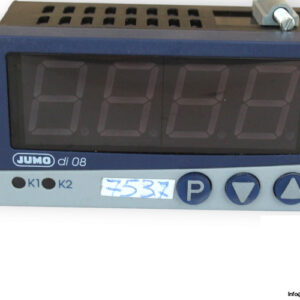

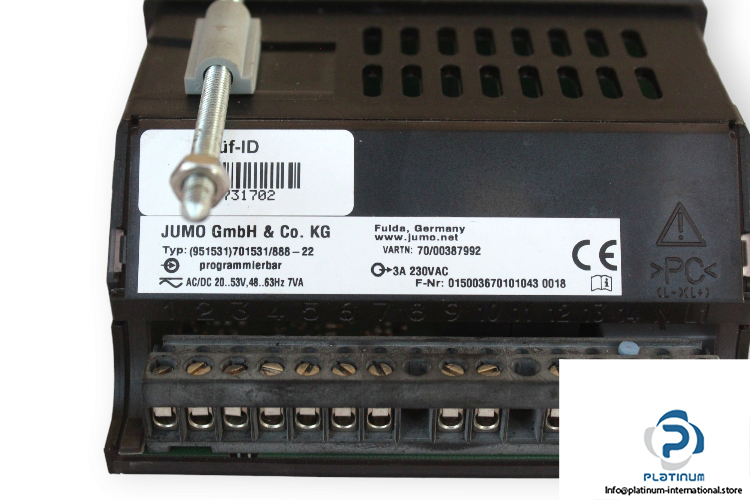

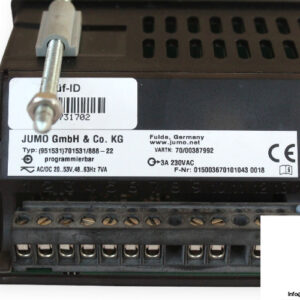

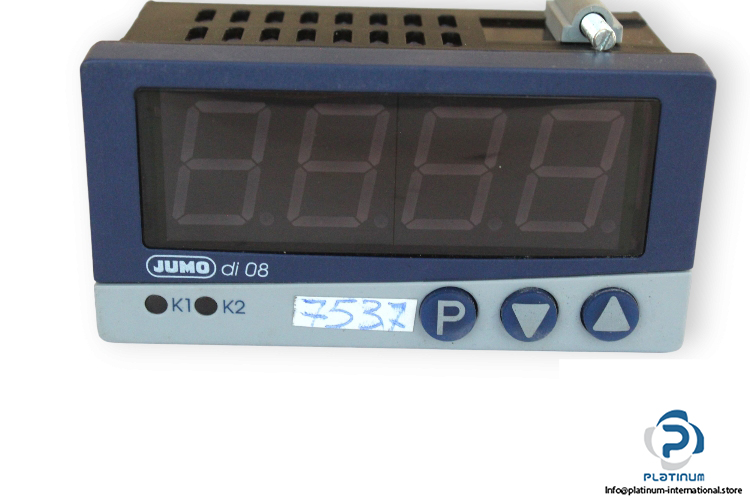

Jumo (951531)701531/888-22 Digital Microprocessor Indicator

Manufacture: Jumo
Type: Digital microprocessor indicator
Model: (951531)701531/888-22
Series: di 08

Features
·Structured Operating and Programming Layout
·Customer-Specific Linearization Correction
·2 Limit Comparators for Limit Monitoring
·Digital Input Filter with Programmable Filter Time Constant
·Time-Delayed Switching, Programmable Per Relay
·Switch-on Delay After Power-on is Programmable
Supply voltage: 20 … 53 V AC/DC
Frequency: 48 … 63 Hz
Power: 7 VA
Input Operation: through floating contact
Input Function (configurable): Hold, Min/Max reset, level inhibit
No. of logic input: 1
Output 1: Relay
Output 2: Relay and Parallel Logic Output
Contact rating: 1 NO,3 A at 230 V AC
Current limiting: 20 Ma
Data Backup: EEPROM
Display: 7-segment display, 4 digits, red
Display range/unit: -1999 … +9999 digit / °C/ °F
Ambient temperature range: 0 … 55°C
Protection Degree: front IP66, rear IP20
Bezel Dimensions: 96 × 48 mm
