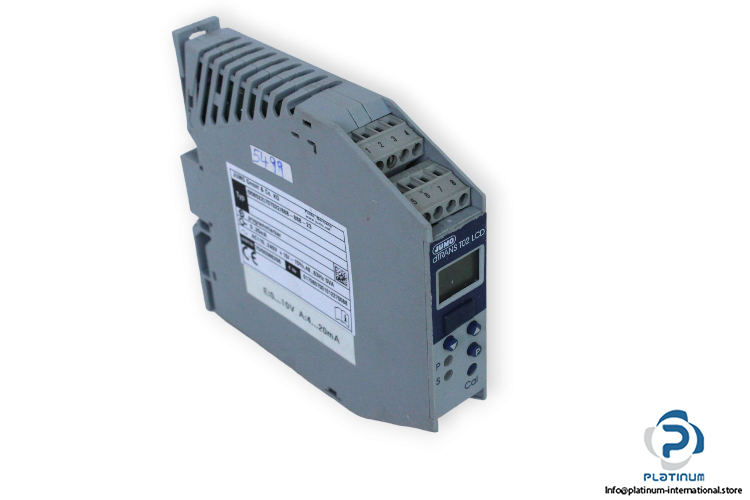

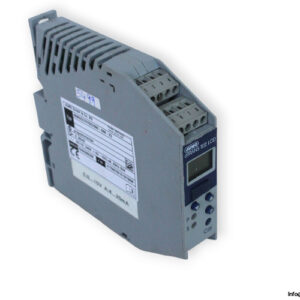

Jumo Dtrans T02 LCD Programmable Transmitter

Manufacturer: Jumo
Type: Programmable Transmitter
Model: DTRANS T02 LCD
Part No: 956522

Supply Voltage: 110 … 240 V AC
Frequency: 48 … 63 Hz
Current: 0 … 20 mA
Output Voltage: 0 … 10 V
Output Current: 4 … 20 mA
Protection: Explosion Proof
Supply Circuit: 230 V AC
Sensor Type: Thermocouple
Screw Connection: Screw Terminal
Mounting: on 35mm x 7.5mm DIN rail
Housing Material: Polyamide
Operating Temperature: -10 … 60 °C
Degree of protection: IP20
Dimensions: 109 X 124.8 X 22.5 mm
