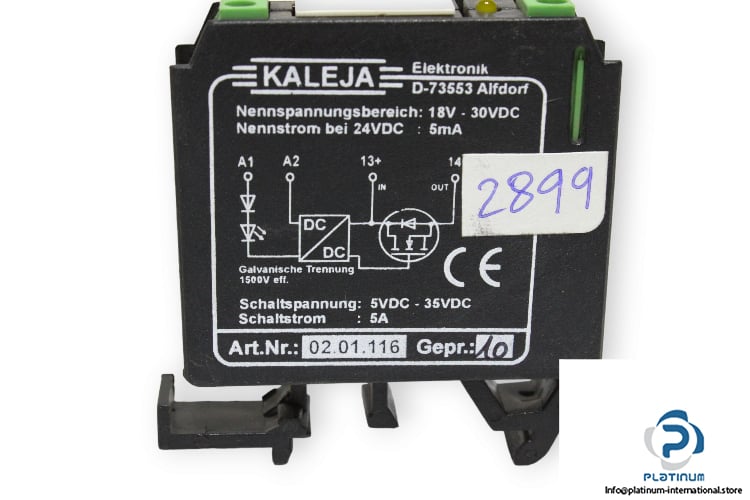

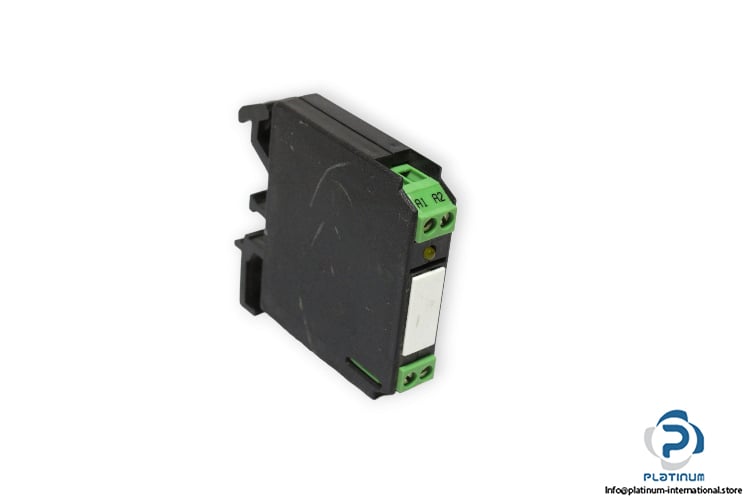

Kaleja 02.01.116 Electronic Load Relay

Manufacturer: Kaleja
Type: Electronic load relay
Part No.: 02.01.116

Threshold voltage: 24 V DC (18 … 35 V DC)
Input current during rated voltage: 5 mA
Range of switching voltage: 5 … 35 V DC
Max. permanent load current: 5 A
Min. load current: 1 mA
Impulse current: 25 … 35 A
Switching frequency: 100 Hz
Ambient temperature range: -20 … 60°C
Dimensions: 56 x 13 x 67 mm
