Kaller K 750/25 HE GAS Spring Actuator
Used
In stock1 unitReady to ship
Gas Spring Actuator
The Kaller K750/25HE Gas Spring Actuator delivers reliable force with a 50.5 mm piston diameter and 25 mm rod diameter. Offering 2470 lbf of end force and operating within a wide temperature range, it is designed for high-performance applications in industrial environments.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

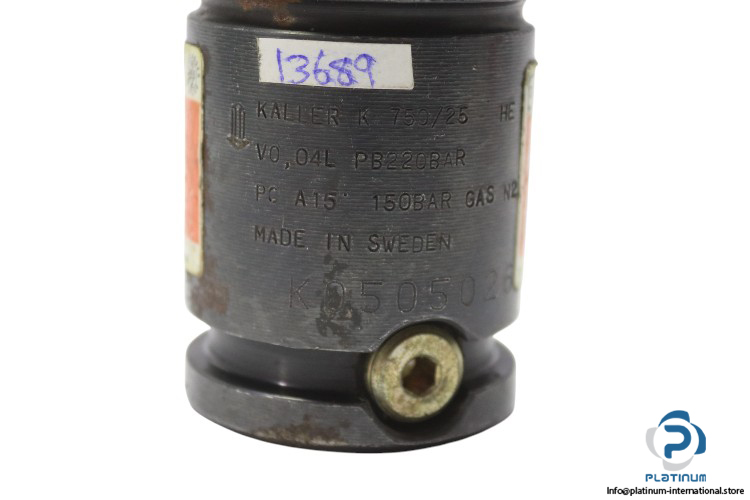

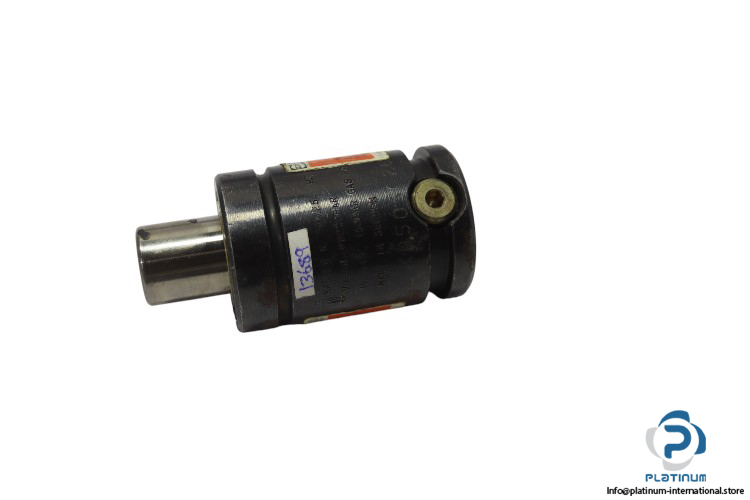

Kaller K750/25HE Gas Spring Actuator
The Kaller K750/25HE Gas Spring Actuator is designed for high-performance applications requiring reliable force generation and precise movement control. With a piston diameter of 50.5 mm and a rod diameter of 25 mm, it offers a stroke length of 26 mm and is capable of delivering substantial force at full stroke, making it ideal for heavy-duty industrial tasks.
Manufacturer: KALLER
Type: Gas Spring Actuator
Model: K750/25HE
Technical Data:
- Rod Diameter: 25 mm
- Piston Diameter: 50.5 mm
- Stroke: 26 mm
- Total Length: 100 mm
- End Force at Full Stroke (LBF): 2470
- Force Increase by Temperature Percent Per (°F): 0.17
- Gas Volume (CuF): 0.001412587
- Initial Force at Max. Pressure (lbf): 1665
- Max Charging Pressure (Psi): 2175
- Max Piston Rod Velocity (FtMin): 314.96
- Max. Operating Temperature (°F): 176
- Min Charging Pressure (Psi): 362
- Min. Operating Temperature (°F): 32
