Kaller R12-25 GAS Spring Actuator
Used
In stock2 unitsReady to ship
Gas Spring Actuator
The Kaller Fibro R12-25 Gas Spring Actuator provides precise force control with a 12mm piston diameter, 25mm stroke, and a 180 bar maximum charging pressure. Designed for high-performance mechanical applications.12mm18025mmActuatorbarControldiameterFibroForceGashigh-pressureIndustrialKallerMechanicalPistonspringStrokeVelocity
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

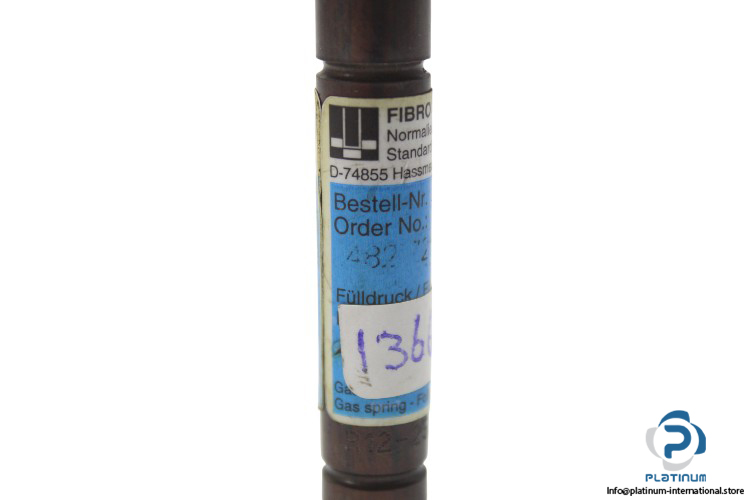

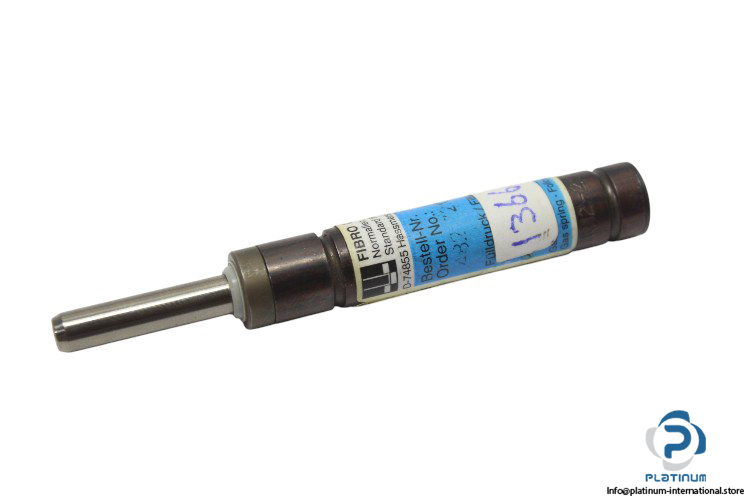

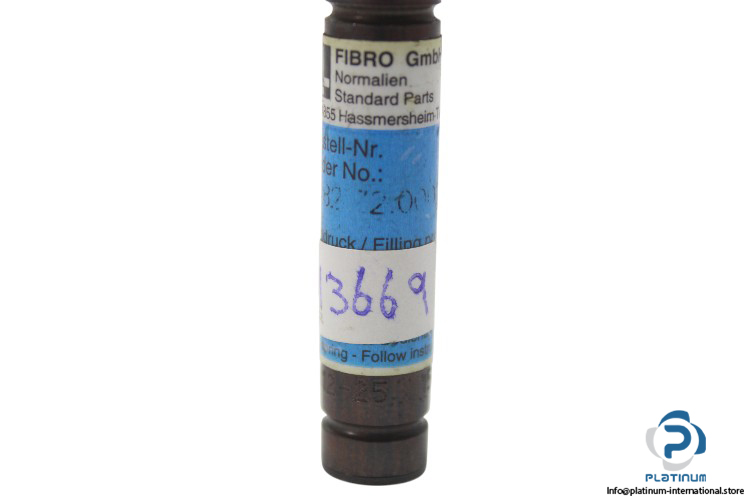

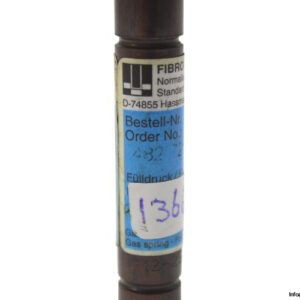

Kaller Fibro R12-25 Gas Spring Actuator
The Kaller Fibro R12-25 Gas Spring Actuator is designed for precise force control in mechanical and industrial applications. With a 12 mm piston diameter and a 25 mm stroke length, this actuator offers reliable performance under high pressure, with an impressive maximum charging pressure of 180 bar.
Manufacturer: Kaller Fibro
Type: Gas Spring Actuator
Model: R12-25
Technical Data:
- PISTON Diameter: 12 mm
- Stroke: 25 mm
- Total Length: 92 mm
- Rod Diameter: 6 mm
- Max. Charging Pressure: 180 bar
- End Force At Full Stroke (LBF): 159
- Force Increase By Temperature Percent Per (°F): 0.17
- Gas Volume (CuF): 0.000070629
- Initial Force at Max. Pressure (LBF): 112
- Max Piston Rod Velocity (FtMin): 314.96
- Max. Operating Temperature (°F): 176
- Min Charging Pressure (PSI): 290
- Min. Operating Temperature (°F): 32
- Recommended Max Strokes Per Minute: 40-100
