Kammer 20038-I/P Control Valve
Control Valve

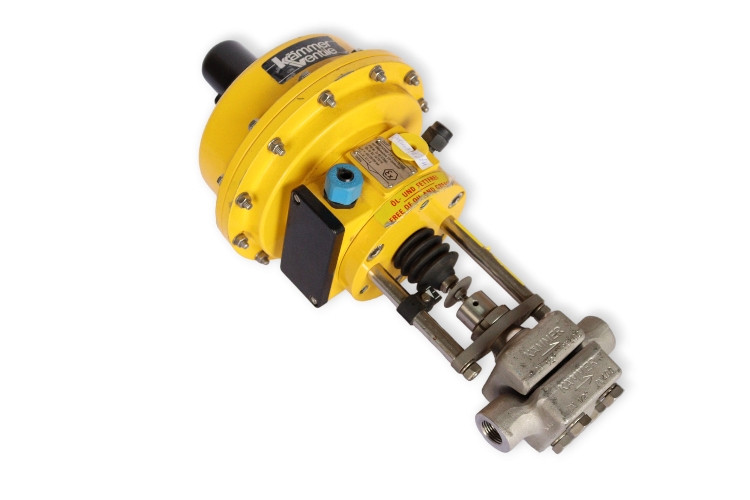

High-performance Kammer Ventile control valve with pneumatic I/P actuator, engineered for precise flow regulation, explosion-proof operation, and reliable process control in industrial fluid systems.Kammer Ventile 20038 I/P Control Valve with Pneumatic I/P Actuator
A high-precision control valve designed for demanding industrial applications requiring accurate flow control, stable actuation, and explosion-proof operation. Equipped with a pneumatic I/P actuator, this unit ensures dependable response to 4“20 mA signals for automated process control in pipelines, chemical plants, refineries, and general fluid-handling systems.
Manufacturer: Kammer Ventile
Type: Control Valve with Pneumatic I/P Actuator

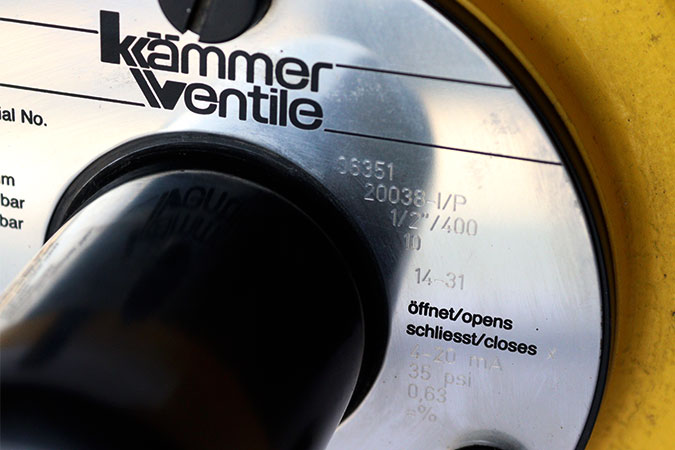

Model: 20038 I/P

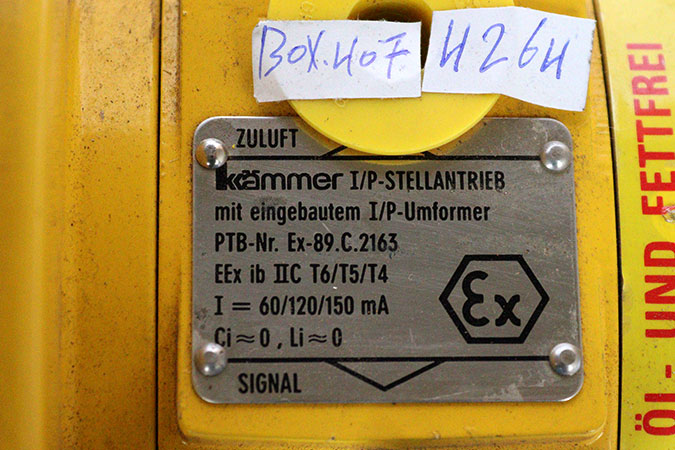

Ptb. Nr.: Ex.89.C.2163
Serial No.: 06351
Size: G1/2
Pressure: PN 40
Stroke Range: 14 to 31 mm
Spring Pressure: 10 bar
Valve Plug Signal: 4 to 20 mA
Seat Ring Pressure: 35 Psi
Bellows Seal: 0.63
Explosion Class: EEx ib IIC T6 / T5 / T4
Indicators: opens, closes
Ports:
ZULUFT (Supply Air)
SIGNAL (Signal Input)
Current (I): 60 / 120 / 150 mA
Valve Body Material: Stainless steel

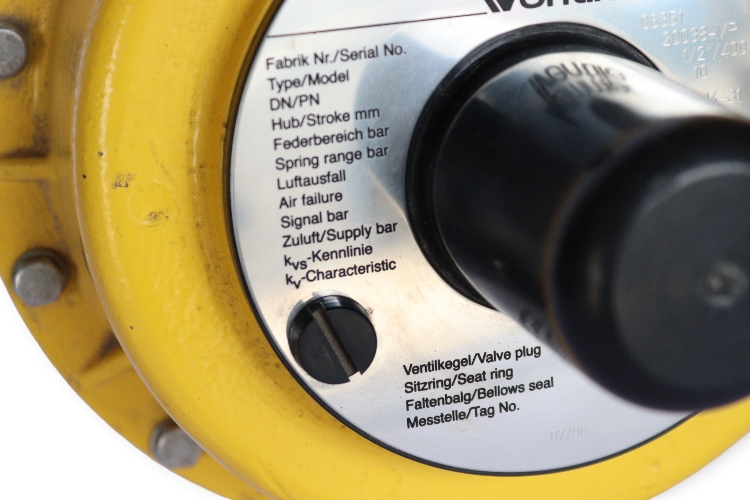

Valve Components: Valve plug, seat ring, bellows seal, tag number line
Recommended Category: Hydraulic System “ Industrial Valves
Why This Product Stands Out:
Built for precision process control, this Kammer Ventile valve offers exceptional response accuracy, stable modulation, and reliable long-term performance even under high pressure and hazardous conditions. The explosion-proof I/P actuator and stainless-steel construction ensure maximum safety and durability in industrial environments.
Recommendation:
An ideal choice for customers requiring dependable automated flow regulation in oil & gas, chemical processing, pharmaceutical production, and high-pressure fluid systems. Pairing this valve with Platinum International™s range of hydraulic accessories and industrial motion components helps achieve higher system efficiency, reduced downtime, and enhanced operational control.
