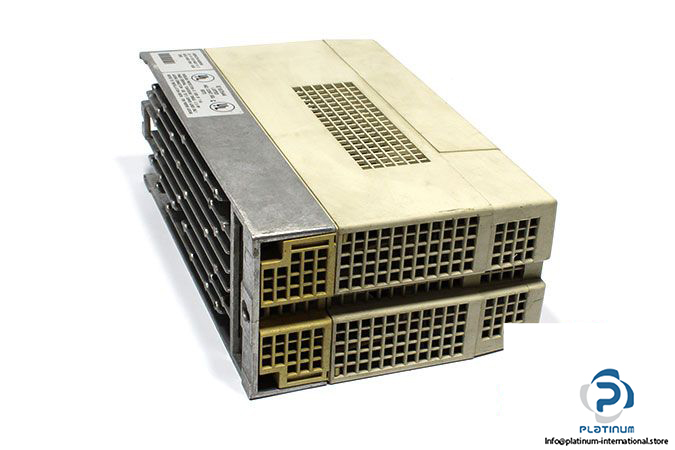

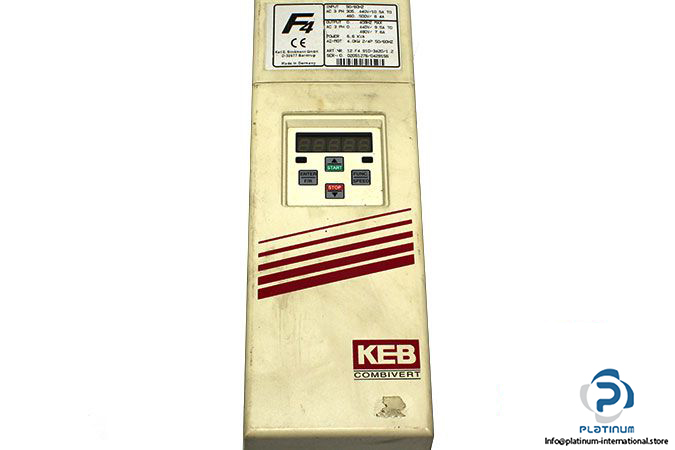

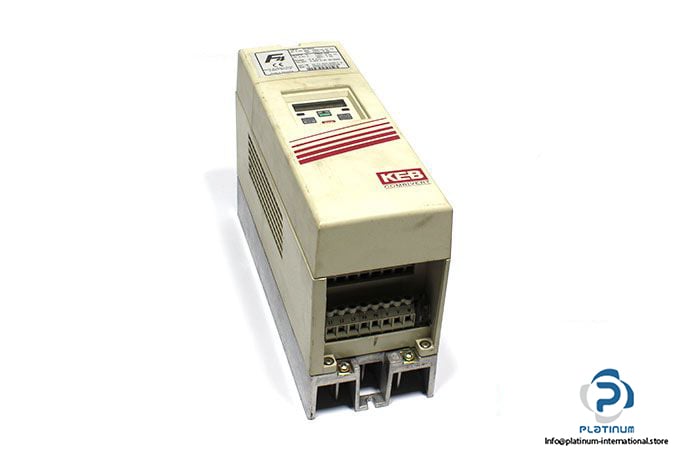

KEB 12.F4.S1D-3420/1.2 Inverter Drive

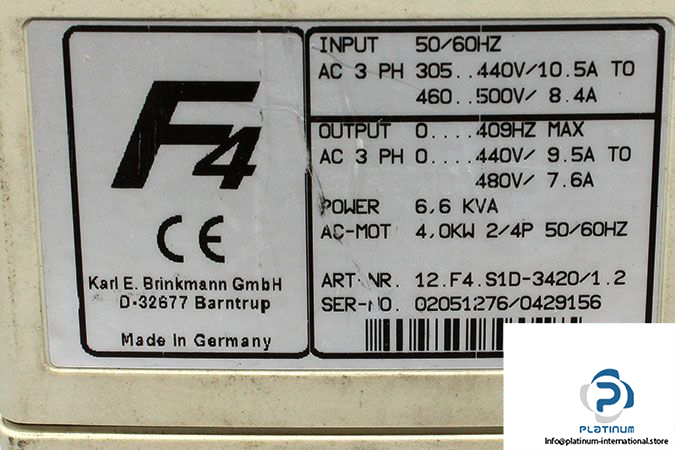

Manufacturer: KEB / F4 Karl E. Brinkmann Gmbh
Type: Inverter Drive
Art No: 12.F4.S1D-3420/1.2
Input
Voltage: 3 Phase
- At 10.5 A: 305…440 V
- At 8.4 A: 460…500 V
Frequency: 50/60 Hz
Output
Voltage: 3 Phase 0…480 V AC
Frequency: 0…409 Hz
Current Rating: 9.5/7.6 A
Inverter Capacity: 6.6 kVA
Power: 4 kW
AC Motor: 4 kW 2/4P 50/60 Hz
Ambient Temperature: -10…45 °C
Protection Class: IP20
Dimensions: 249 X 90 X 158 mm
Weight: 2.10 Kg
