KEB 16.F5.M1E-344A Frequency Inverter Drive
New
In stock1 unitReady to ship
1 499,99$
Frequency Inverter Drive
KEB F5 series frequency inverter drive for three-phase motor control, rated at 15 kW with wide input and output voltage ranges for industrial automation systems.
Used
In stock 1 199,99$
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

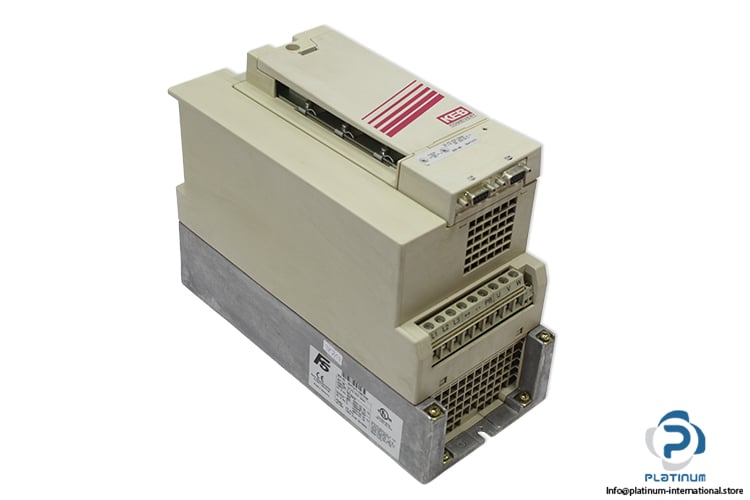

KEB 16F5M1E344A Frequency Inverter Drive
The KEB F5 series frequency inverter drive is designed for precise motor speed and torque control in industrial automation systems. This model supports a wide input voltage range, high output frequency, and robust performance for demanding variable-speed drive applications.
Manufacturer: KEB
Type: Frequency Inverter Drive
Model: 16.F5.M1E-344A
Version: 1.1
Serial No.: 05202646 / 0582762
Series: F5
| Input Supply Voltage | 3-Phase 305 / 440 / 460 / 500 V AC |
| Input Rated Current | 42.9 / 35.1 A |
| Input Frequency | 50 / 60 Hz |
| Output Rated Voltage | 3-Phase 0 / 440 / 480 V AC |
| Output Rated Current | 33 / 27 A |
| Output Frequency | 0 / 1600 Hz |
| Rated Power | 23 kVA |
| Motor Power | 15 kW |
| Protection Class | IP20 |
| Operating Temperature | -10 / 45 °C |
| Dimensions | 220 × 90 × 160 mm |
