KEB 32.SM.200-34B0 Synchronous Servo Motor
Used
Available on request
750,00$
SYNCHRONOUS SERVO MOTOR
KEB 32.SM.200.34B0 is a 330 V IP64-rated synchronous servo motor offering 1.15 Nm rated torque and 3000 rpm speed. It features self-cooling, resolver feedback, and flange B5 compatibility for industrial automation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
KEB 32.SM.200.34B0 SYNCHRONOUS SERVO MOTOR
The KEB 32.SM.200.34B0 synchronous servo motor is engineered for dynamic precision and consistent performance in automated systems. This motor delivers high-speed operation with dependable torque characteristics, ideal for demanding industrial applications. With IP64 protection and self-cooling via flange, it ensures long-lasting efficiency in compact environments.

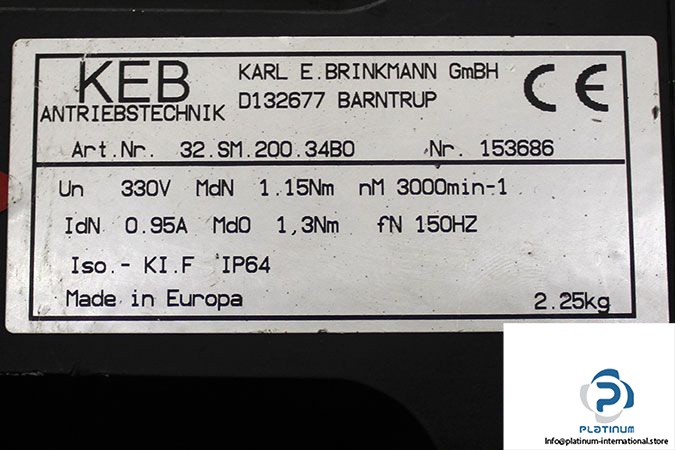

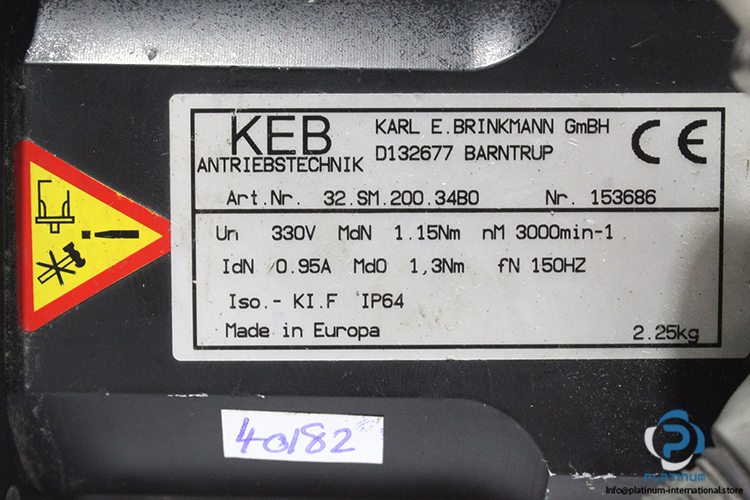

Manufacturer: KEB
Type: Synchronous Servo Motor
Model: 32.SM.200.34B0
Part No.: 153686
| Size | 32 |
| Speed | 3000 rpm |
| Rated Voltage | 330 V |
| Stall Torque | 1.3 Nm |
| Rated Torque | 1.15 Nm |
| Rated Current | 0.95 A |
| Voltage Constant | 66.5 V/1000min»¹ |
| Frequency | 150 Hz |

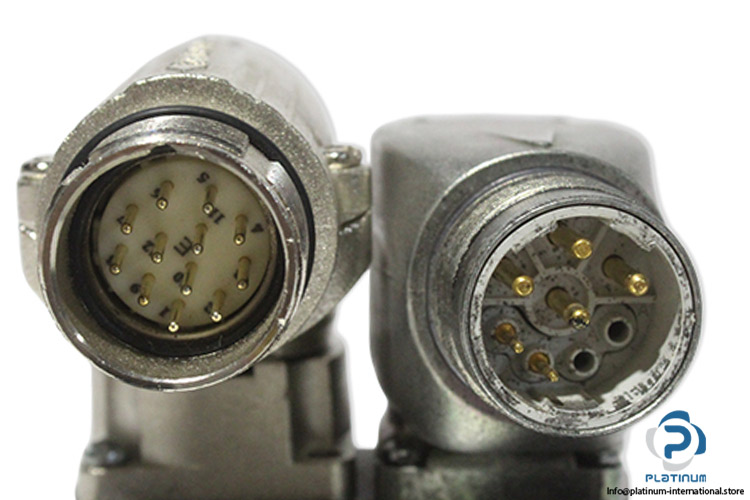

| Connection | Connector / Turnable Angular Flange Connector |
| Cooling | Self-Cooling with Flange B5 IFT5 Compatible |
| Version | Without Brake; with Feather Key |
| Encoder | 2-Pole Resolver |
| Insulation Class | F |
| Protection Class | IP64 |
