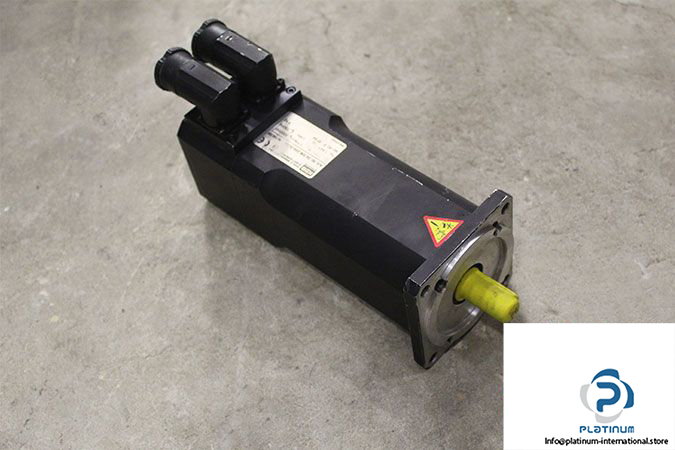

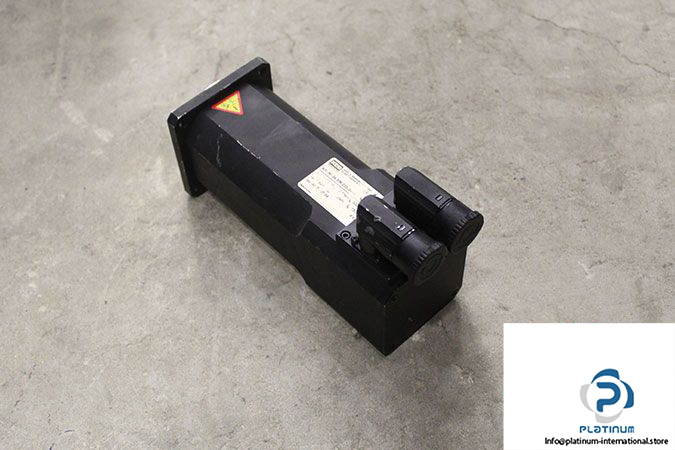

KEB 34.SM.200-340A Synchronous Servo Motor

Manufacturer: KEB

Type: Synchronous Servo Motor

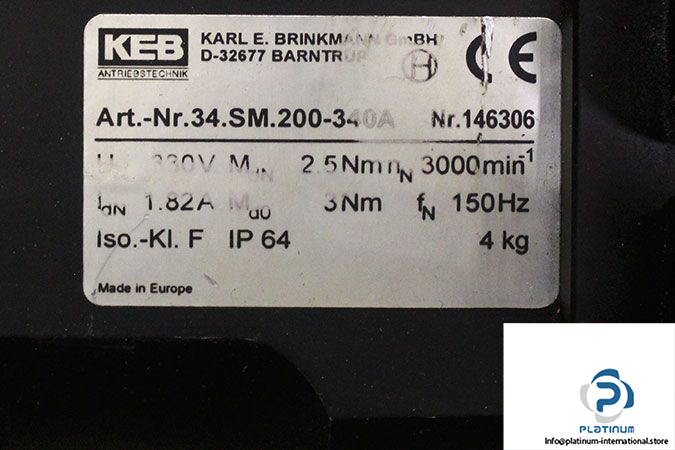

Model: 34.SM.200.340A

Size: 34

Speed [rpm]: 3000

Rated Voltage [V]: 330

Stall Torque [Nm]: 3.0

Current at Stall Torque: [A]: 2.1

Rated Torque [Nm]: 2.5

Rated Current [A]: 1.82

Rated Power [W]: 790

Voltage Constant [V/1000min^-1]: 123.0

Max. Torque [Nm]: 12.0

Max. Current [A]: 9.0

Frequency [Hz]: 150

Encoder: Stegmann Hiperface Singleturn SRS 50/60

Cooling: Self-Cooling with Flange B5 IFT5 Compatible

Version: Without Brake; with Feather Key

Insulation Class: F

Protection Class [IP]: 64

Weight [kg]: 4.0
