Kert KAL1207DIN Switching Modular Power Supply
New
In stock1 unitReady to ship
Switching Modular Power Supply
The KERT KAL1207DIN provides a stable 12 V DC output with 7.5 A capacity, high efficiency, IP20 protection, and DIN-rail mounting for industrial and automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

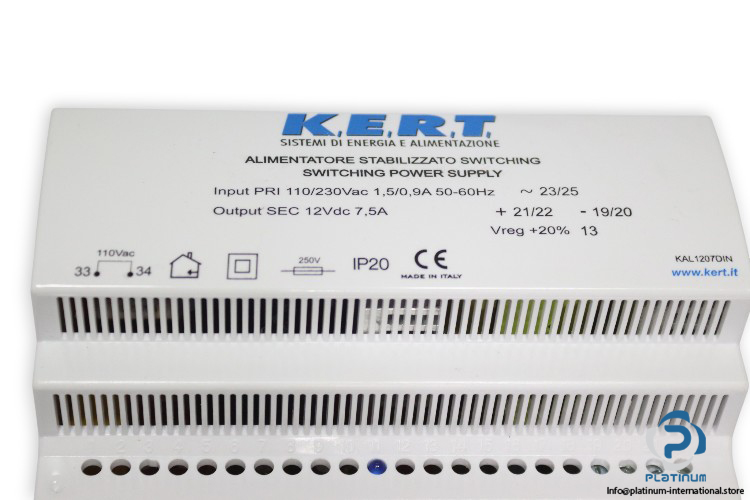

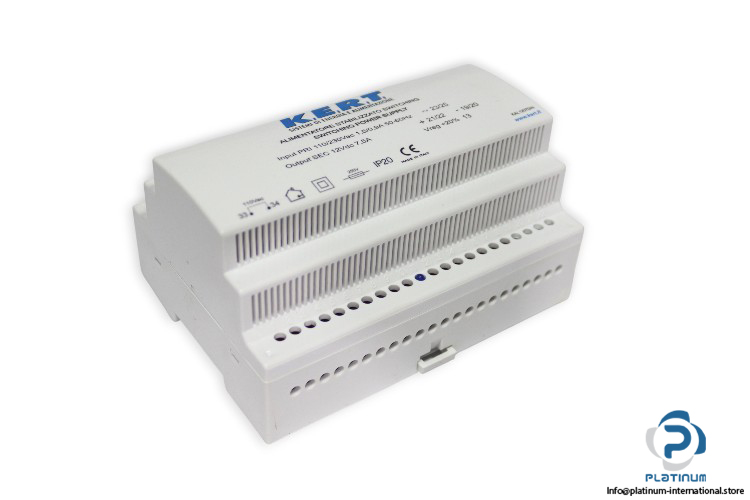

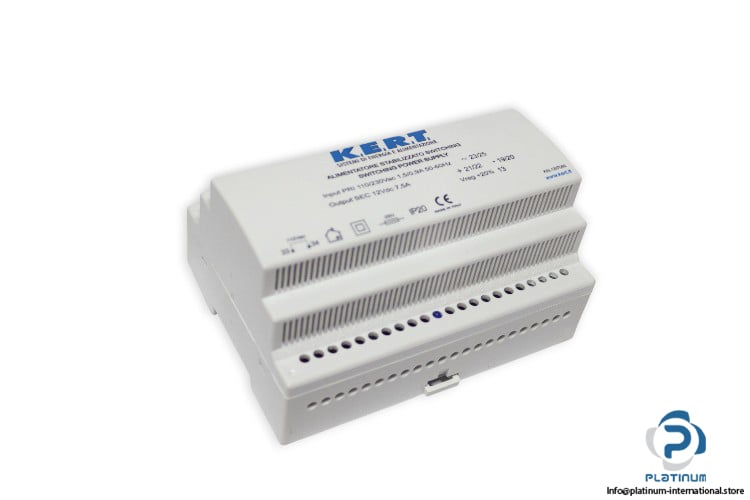

KERT KAL1207DIN Switching Modular Power Supply
The KERT KAL1207DIN is a reliable switching modular power supply designed for stable DC output in industrial, automation, and control panel applications. It offers high efficiency, compact DIN-rail mounting, and wide operating temperature capability.
Manufacturer: KERT
Type: Switching Modular Power Supply
Model: KAL1207DIN
| Input Voltage | 110 to 230 Vac single phase |
| Input Frequency | 50 to 60 Hz |
| Input Current | 1.5 A at 110 Vac / 0.9 A at 230 Vac |
| Inrush Current | 60 A |
| Nominal Output Voltage | 12 V DC |
| Adjustable Output Range | 10 to 14 V DC |
| Output Current | 7.5 A |
| Efficiency | greater than 86 percent |
| Power Dissipation at 230 Vac | 14 W |
| Operating Temperature Range | minus 20 to plus 60 degree Celsius |
| Cooling | Natural convection |
| Protection Rating | IP20 |
| Mounting | DIN rail vertical orientation |
| Dimensions (H x W x D) | 90 x 124 x 66 millimeters |
