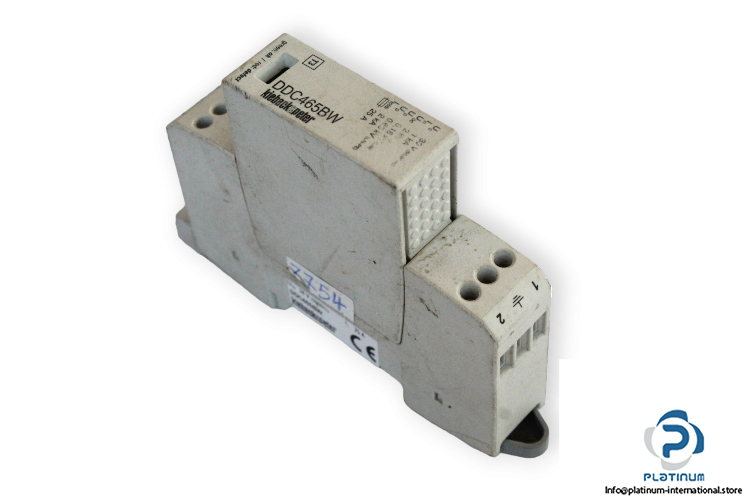

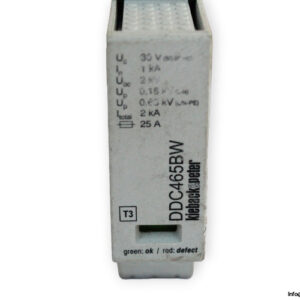

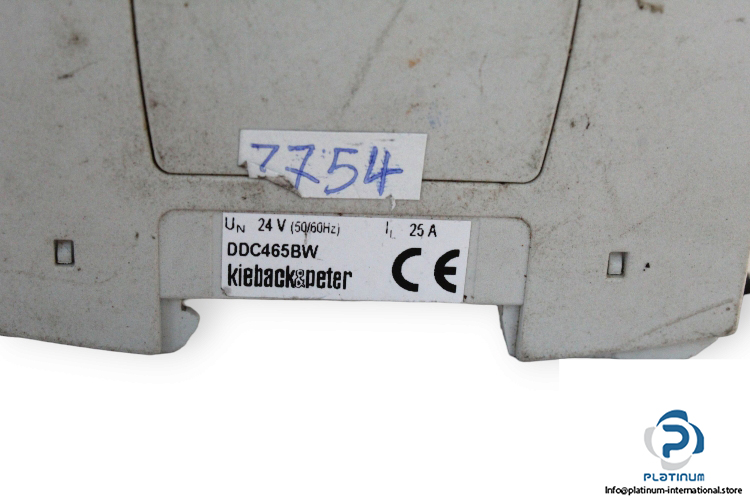

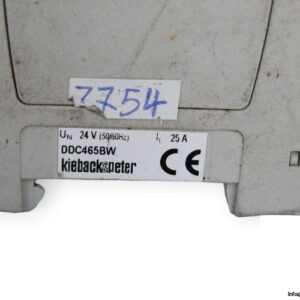

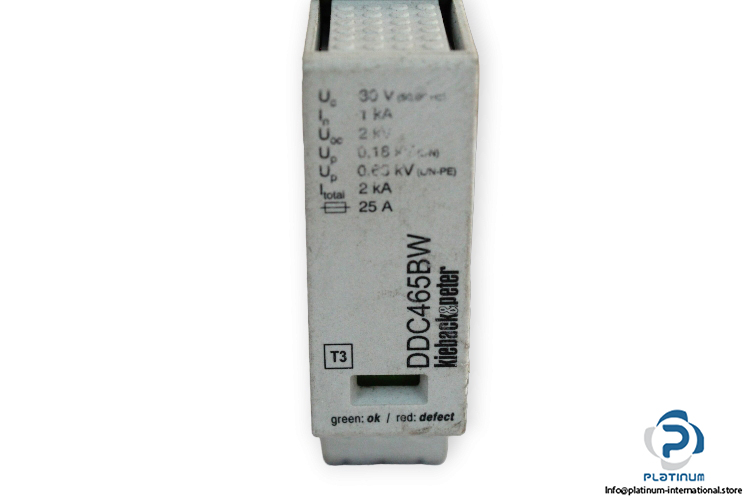

KIEBACK&PETER DDC465BW OVERVOLTAGE PROTECTION

Manufacture: Kieback&Peter
Type: Overvoltage Protection
Model: DDC465BW

Application:
used to discharge voltage and current peaks in power/bus lines as well as in connection lines for sensors/actuators
Nominal voltage Un: 24 V AC,50/60 Hz
Highest voltage: 30 V AC
Nominal discharge surge current In: 1 Ka
Total discharge surge current L+N-PE Itotal: 2 kA
Pre-fuse, max: 25 A
Torque: 0,4 Nm (Size 0)
Operating temperature: -40 … 80 °C
No. of Ports: 1
Housing: Thermoplastic UL 94 V-0
Degree of protection: IP20
Dimensions: 18 x 90 x 65 mm
