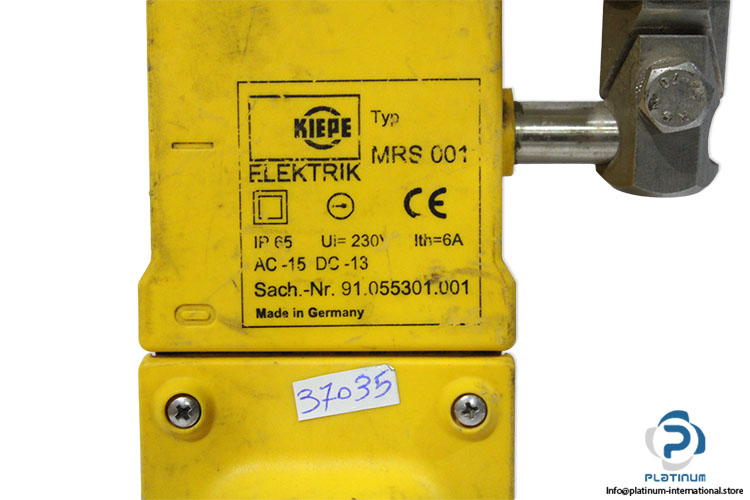

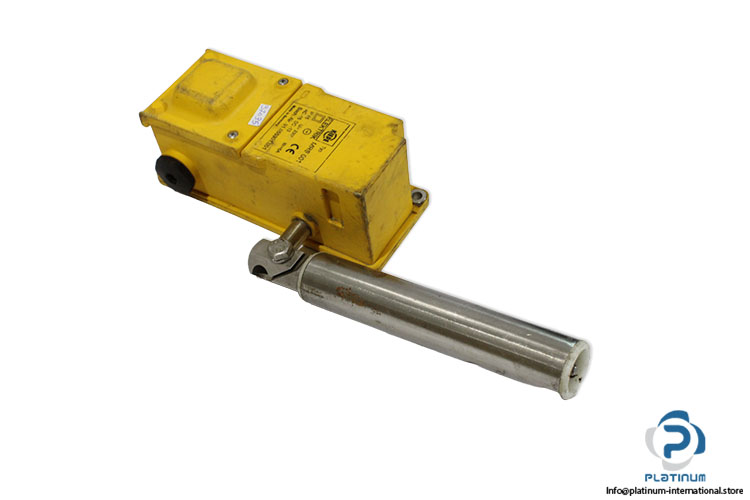

Kiepe 91.055301.001 Belt Misalignment Switch
Used
In stock1 unitReady to ship
Belt Misalignment Switch Kiepe Elektrik MRS001 belt misalignment switch with pre-alarm actuation, dual SPDT contacts, IP65 protection, and stainless steel roller for conveyor belt monitoring and industrial safety applications.
alarmAlignmentBeltConveyorDeviceElektrikIndustrialIP65KiepeMisalignmentmonitoringMRS001preProtecSafetySpdtSwitchTracking
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 91.055301.001 |
| Suited for | Control circuits in accordance with DIN EN 60204-1 |
| Rated insulation voltage Ui | 230 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Conventional thermal current Ith | 6 A |
| Type of actuation | Pre-alarm |
| Switching capacity | AC-15: AC 230V/1,5A -DC-13: DC 24V/2A |
| Contact | 2 changeover contacts (SPDT with snap action) |
| Mounting | Threaded holes 2x M6 |
| Certificate | CE |
| Protection degree | IP65 |
| Housing material | PBT (glass fiber reinforced); yellow, similar to RAL 1004, Plastic-housing |

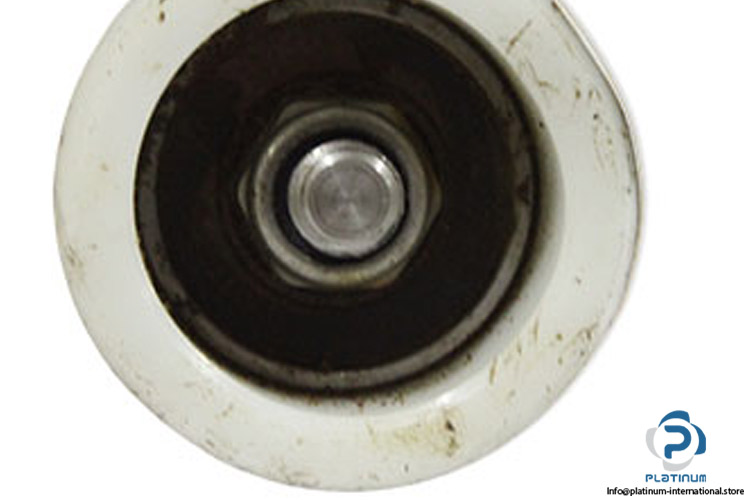

| Roller material | Stainless steel diameter 30 mm |
| Permissible ambient temperature | -25 to +70°C |
| Dimensions | 220 x 105 x 83.5 mm |
| Condition | Used |
| SKU | 1097766 |
| Weight | 0,80 |
More From KIEPE ELEKTRIK
Used
KIEPE ELEKTRIK

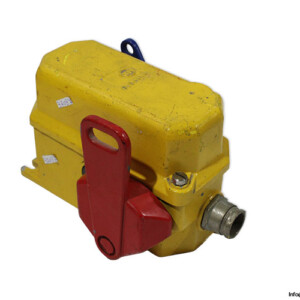

Kiepe 91.043 450.001 Pull-Rope Emergency Switch
