Klaschka OAS/L/A-M30RG-II+IV/1SK Inductive Sensor

Manufacturer: KLASCHKA

Type: Inductive Sensor

Model: OAS/L/A-M30RG-II+IV/1SK

Sensing Range: 10 mm

Real Sensing Range: 10 ± 10 % mm

Operating Voltage: 8 … 30 V DC

Operating Current: 400 mA

Switching Output: Normally Open + Normally Closed

Electrical Design: PNP

Mounting: Flush Mountable

Protection Class: II

Enclosure rating: IP67

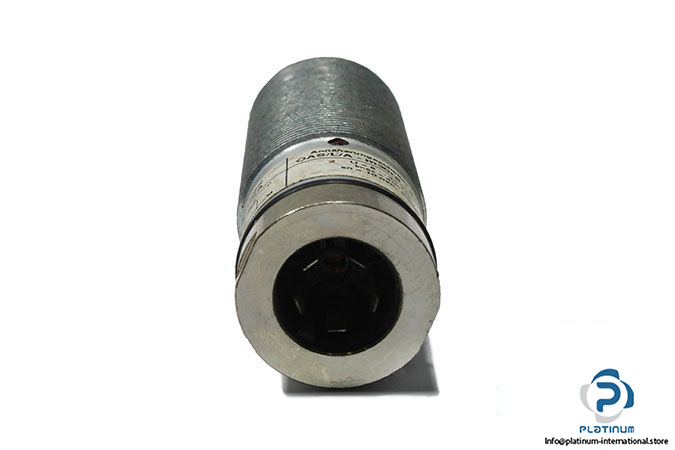

Diameter of Connection: 16.5 mm Connector

Housing: Threaded type

Diameter, Housing Length: 30, 94 mm

Ambient Temperature: -25 … 80 °C

Material: Brass nickel-plated; PBT

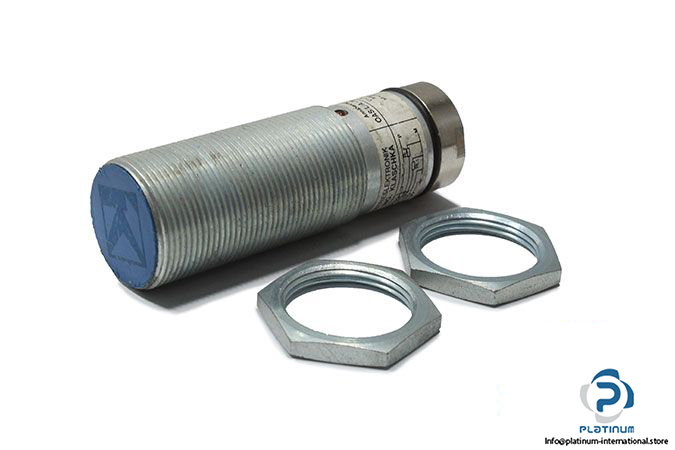

Supplied Accessories: 2 lock nuts

Weight: 0.23 kg
