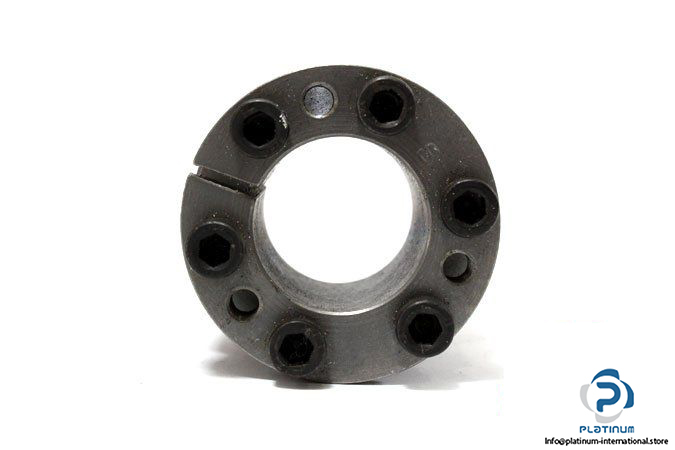

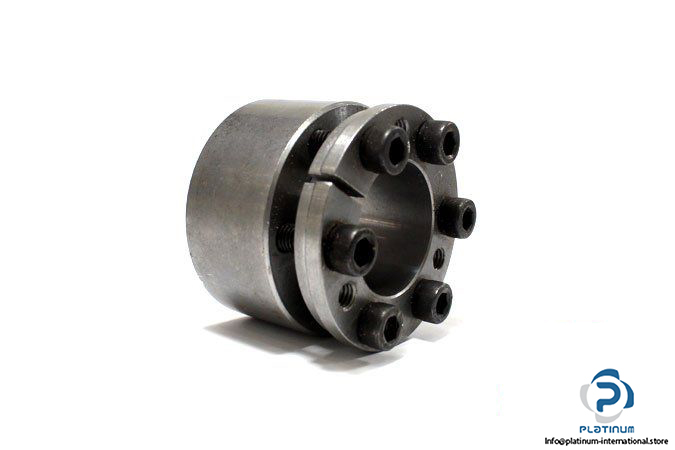

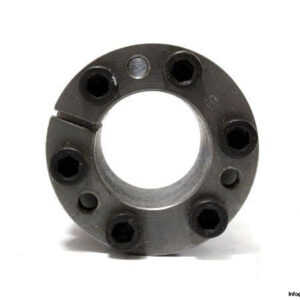

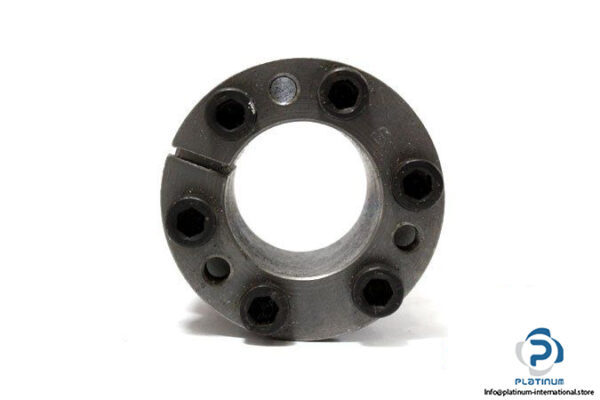

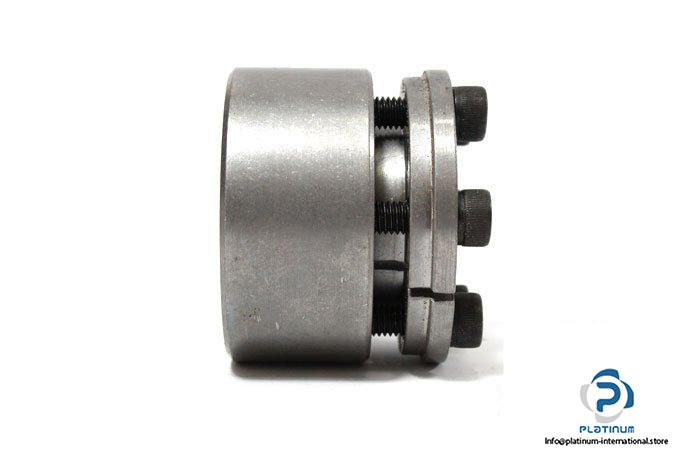

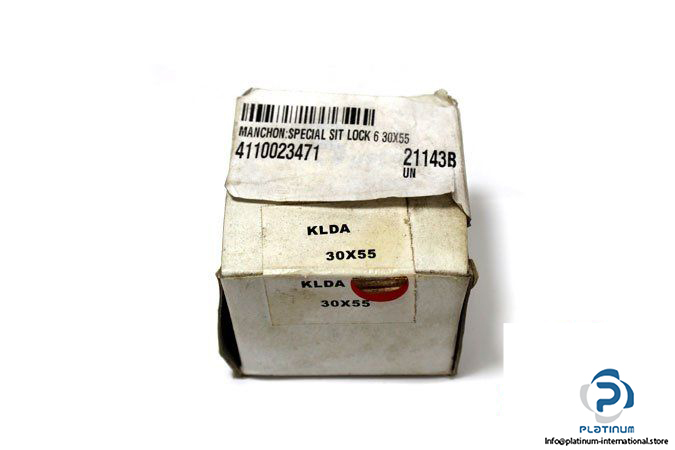

Klda 30X55 Locking Assembly

Manufacturer: KLDA

Type: LOCKING ASSEMBLY

Model: 30X55 KLDA

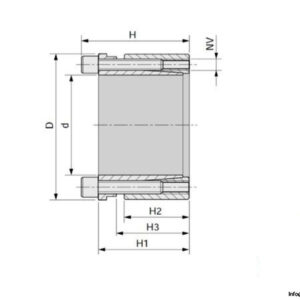

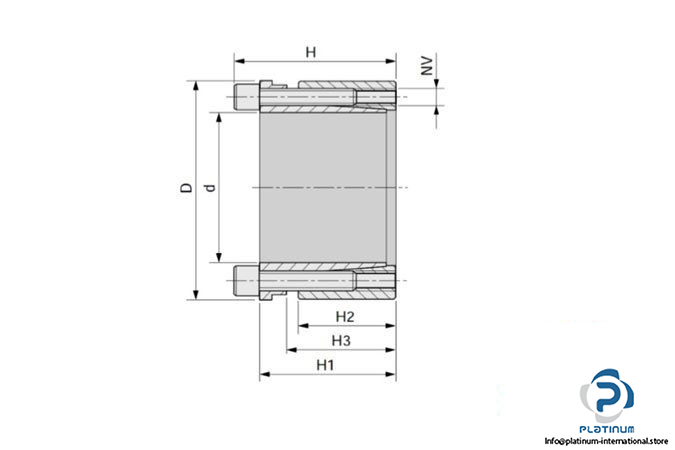

Inner diameter (d): 30 mm

Outer diameter (D): 55 mm

Overall length (H): 45 mm

Overall length, without screws (H1): 39 mm

Width of ring (L3): 31 mm

Max. Tightened torque of the clamping screws: 17 Nm

Transmissible torque max.: 727 Nm

Surface pressure on shaft (given TA): 183 N/mm²

Surface pressure on hub (given TA): 100 N/mm²

Weight: 0.5 Kg

Applications: chain wheels, Levers, pulleys, slip-on gear mechanisms, belt, drums, running, wheels, cable sheaves
