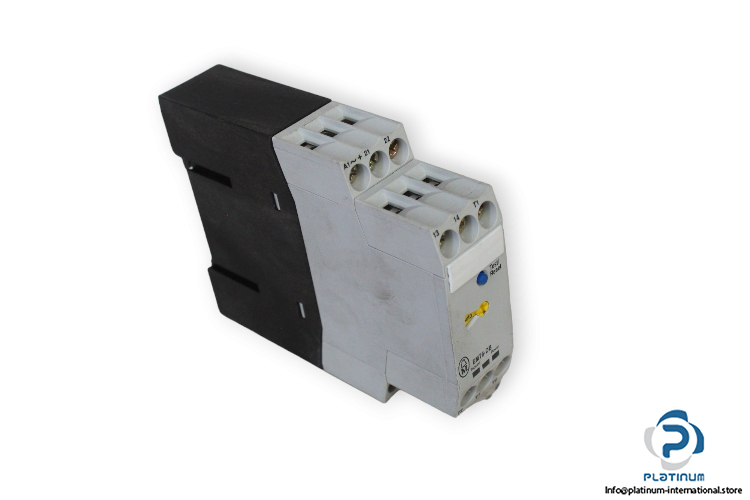

Klockner Moeller EMT6-DB Thermistor Overload Relay

Manufacturer: Eaton Klockner Moeller
Type: Thermistor overload relay

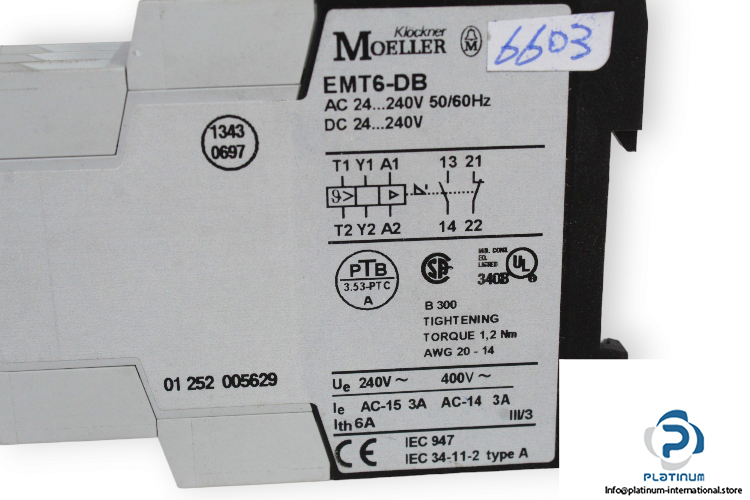

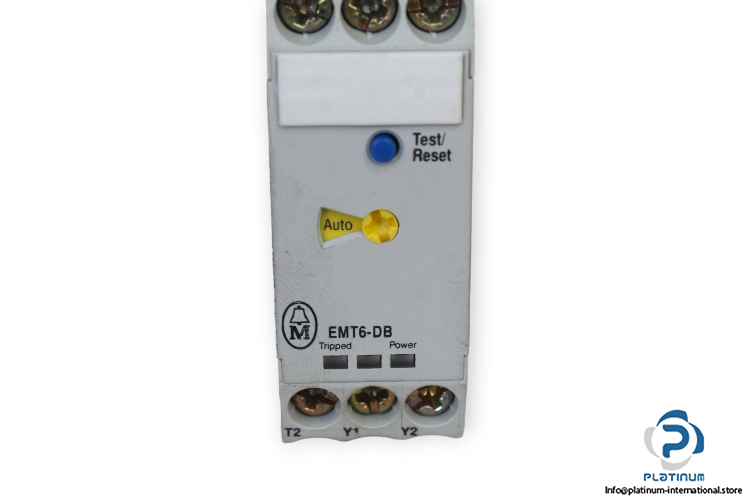

Model: EMT6-DB
Part No.: 01 252 005629

Number of contacts (normally closed contacts): 1
Number of contacts (normally open contacts): 1
Conventional thermal current ith of auxiliary contacts (1-pole, open): 6 A
Power consumption:
2 W at DC
3.5 VA at AC
Rated control supply voltage (Us) at AC, 50 Hz – min: 24 V
Rated control supply voltage (Us) at AC, 50 Hz – max: 240 V
Rated impulse withstand voltage (Uimp):
6000 V AC
4000 V AC
Contact discharge: 6 kV
Voltage type: AC/DC
Degree of protection: IP20
Electric connection type: Screw connection
Tightening torque: 1.2 Nm
Dimensions: 103 x 83 x 23 mm
Temperature Range: -25 … 60 °C
