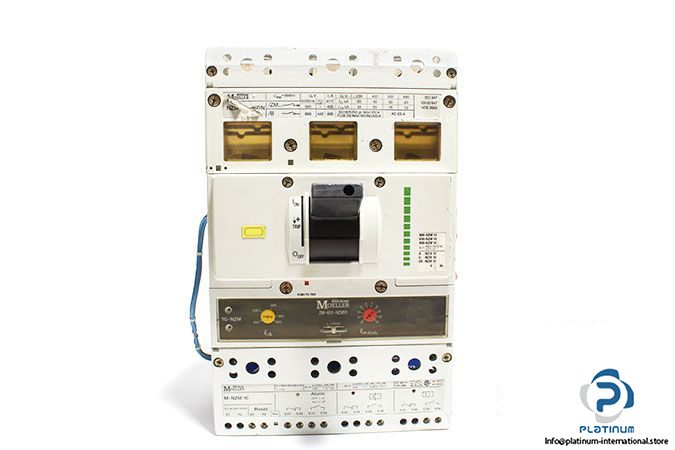

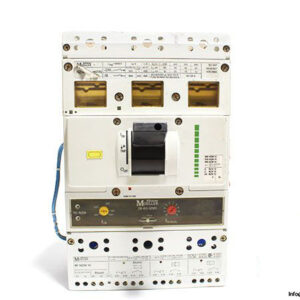

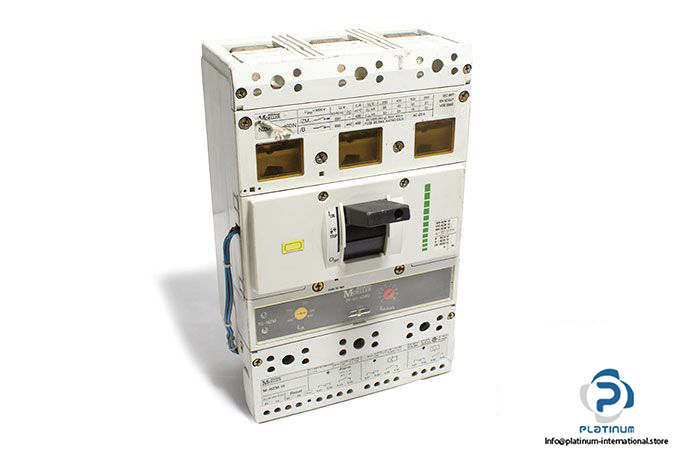

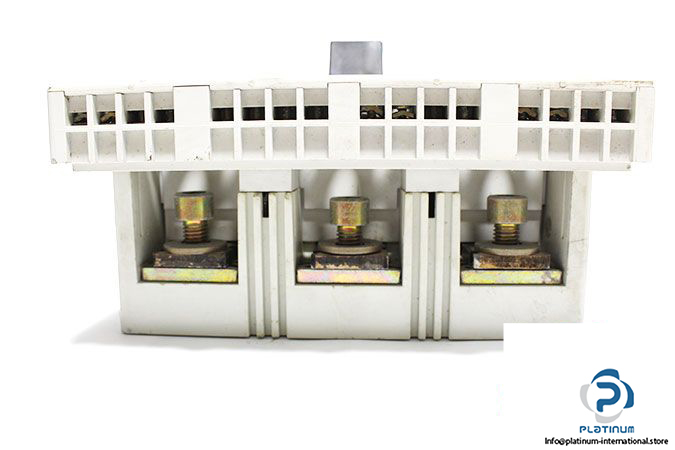

Klockner Moeller NZM10-400N / ZM-400 Molded Case Circuit Breaker
Manufacturer: Eaton Klockner Moeller
Type: Molded Case Circuit Breaker / Disconnect Switch
Series: NZM
Consists of:
- Klockner Moeller NZM10-400N CIRCUIT BREAKER
Type: Basic Breaker
Model: NZM10-400NNumber of Poles: 3
Operating Frequency: 50/60 Hz
Rated Surge Voltage Resistance (Uimp): 8 kV
Rated Operational Voltage (Ue): 690 V AC

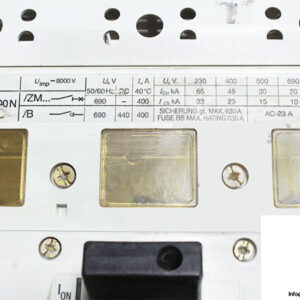

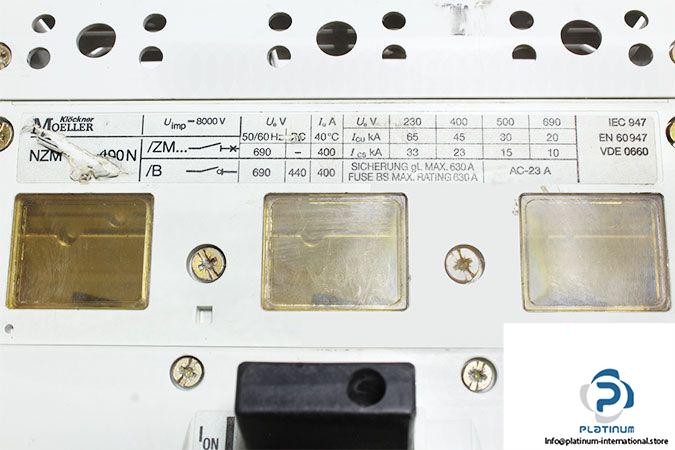

Rated Breaking Capacity (Icu):
65kA/230V AC
45kA/400V AC
20 kA/690V AC
Standards: IEC 947 / EN 60947 / VDE 0660

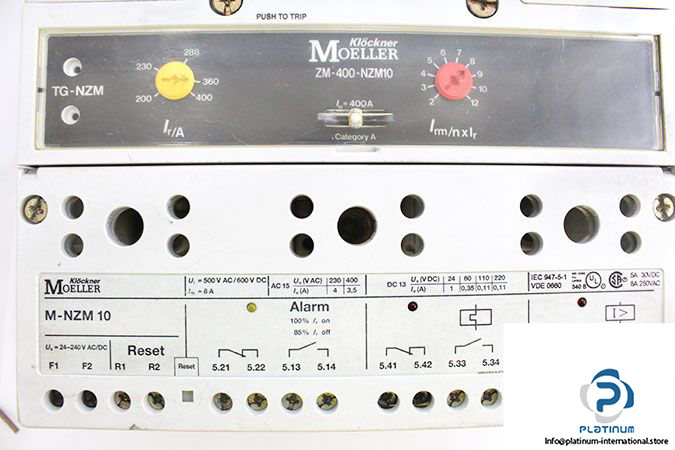

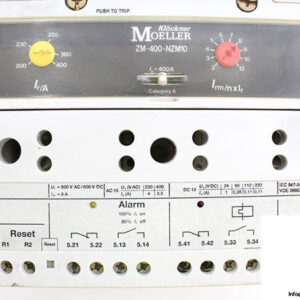

- Klockner Moeller ZMV-250-NZM10 TRIP UNIT
Type: Overcurrent Trip Unit
Model: ZM-400-NZM10Long Description: Solid State Trip Modules
Rated Current (Iu): 400 A
Overload Protection Current (IR): 200…400 A
- KLOCKNER MOELLER M-NZM10 SIGNALLING BLOCK
Type: Signalling Block
Model: M-NZM10
Switching Contact: Pair of Contacts (1 N.O. And 1 N.C.)
Dimensions (H x W x D): 332 X 210 X 160 mm
Weight: 10 kg
