KN 2701 Level Switch Sensor
Used
In stock1 unitReady to ship
Level Sensor
Conductive level switch KN2701 designed for monitoring conductive liquids in industrial tanks and process systems, featuring adjustable switching sensitivity and robust industrial construction.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

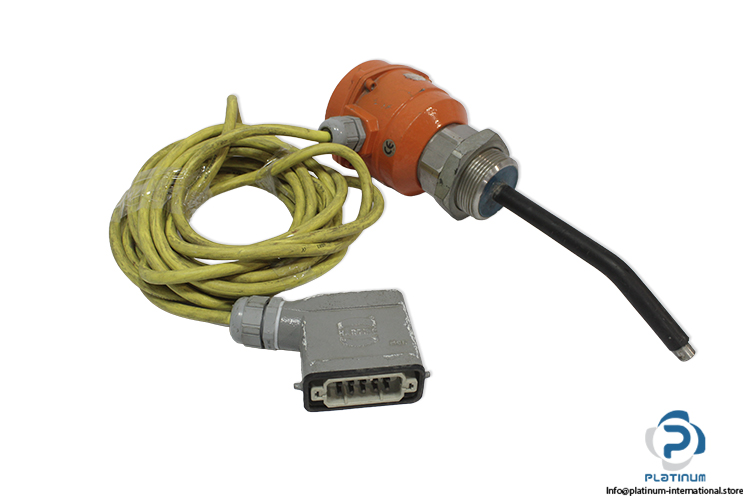

KN2701 Conductive Level Switch
The KN2701 Conductive Level Switch is an industrial level detection sensor designed for reliable monitoring of conductive liquids in tanks and process systems. Based on conductivity sensing technology, this rod-type probe provides stable switching performance and accurate level detection in demanding industrial environments.
Type: Conductive Level Switch / Level Sensor
Model: KN2701

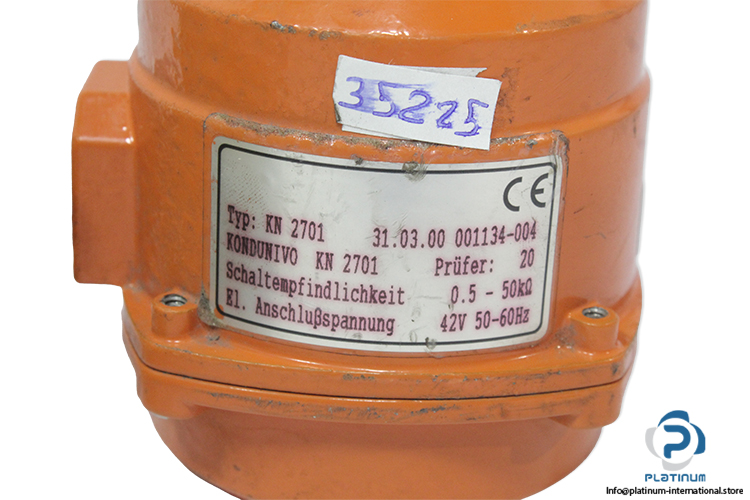

Part No.: 31.03.00 001134-004
Connector:
| Tester | 20 |
| Switching Sensitivity | 0.5“50 kohm |
| Electrical Voltage | 42V, 50/60 Hz |
| Measurement Principle | Conductive level detection (conductivity-based sensing) |
| Sensor Type | Rod-type conductive level probe |
| Probe Design | Angled probe rod with insulated sensing tip |
| Housing | Industrial metal housing |
| Cable Type | Shielded industrial cable |

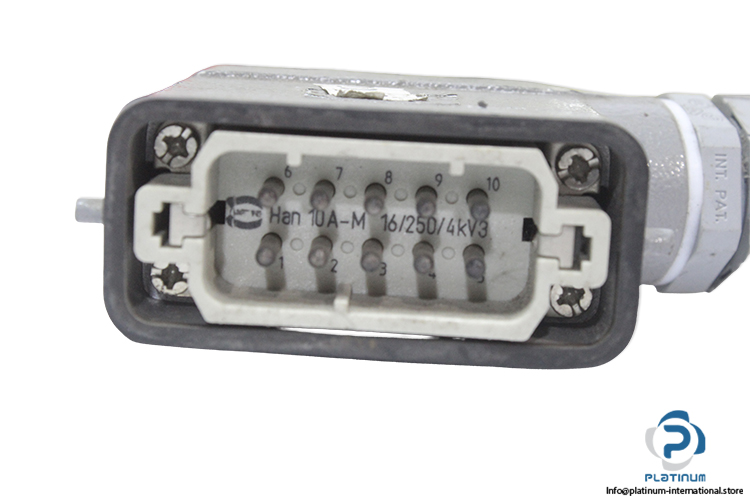

| Connector Type | Industrial 10 poles connector |
| Connector Model | Han 10A-M |
| Connector Rating | 16 A / 250 V |
| Insulation Rating | 4 kV |
| Recommended For | Industrial liquid level monitoring systems, process automation installations, and conductive fluid detection applications. |
