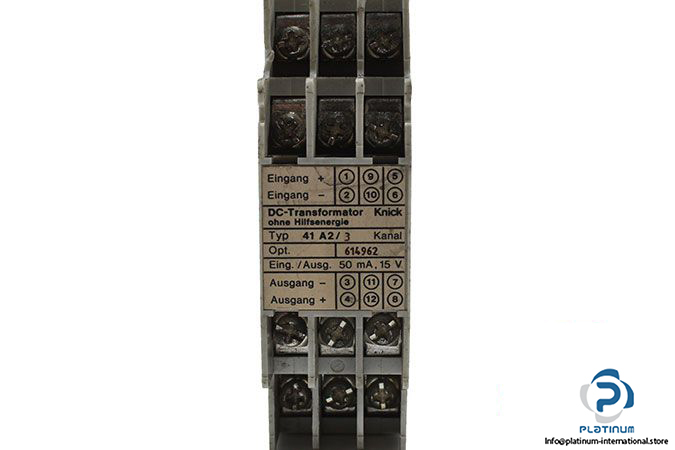

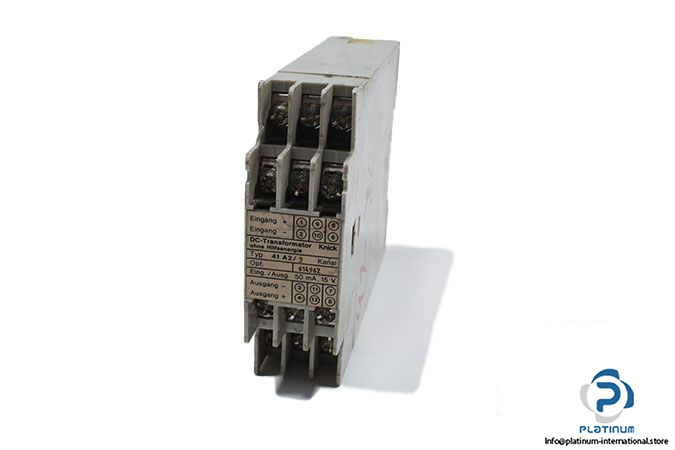

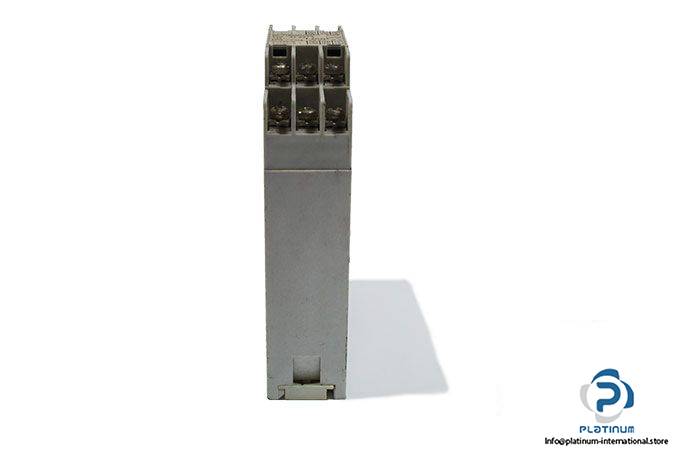

Knick 41 A2 / 3 Loop-Powered Isolators FOR Standard Signal

Manufacturer: KNICK

Type: Loop-Powered Isolators for Standard Signal

Model: 41 A2 / 3

Input Data:

Inputs: 0(4) … 20 mA, 0 … 50 mA

Min. Operating Current: < 2 µA
Voltage Drop: Approx. 1.2 V(20 mA), Approx. 1.6 V(50 mA)

Overload Capacity: 100 mA, 20 V

Output Data:

Output: 0(4) … 20 mA / max. 15 V(corresponds to a 750 Ω load), 0 … 50 mA (corresponds to a 300 Ω load)

Offset: < 5 µA Mounting: Snap-on mounting for 35 mm or M4 screw mounting

Device: 3-channel, A2 modular housing

Ambient Temperature: -25 … 80°C

Dimensions: 22.3 X 99 X 75 mm

Weight: Approx. 0.21 Kg
