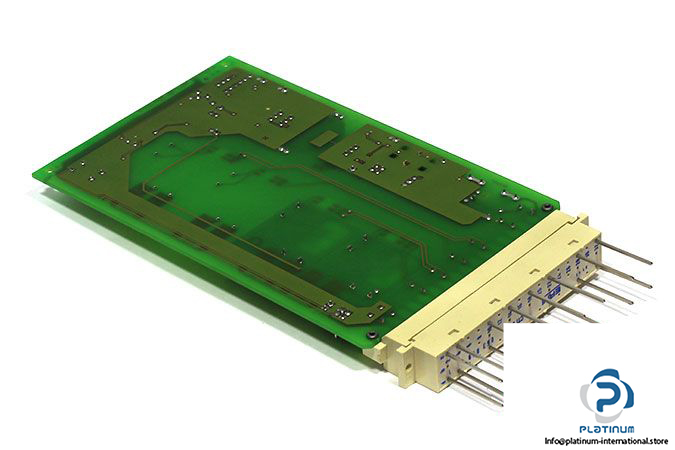

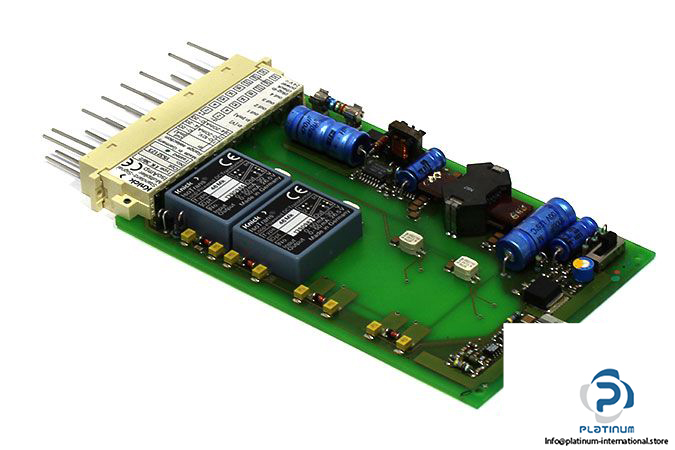

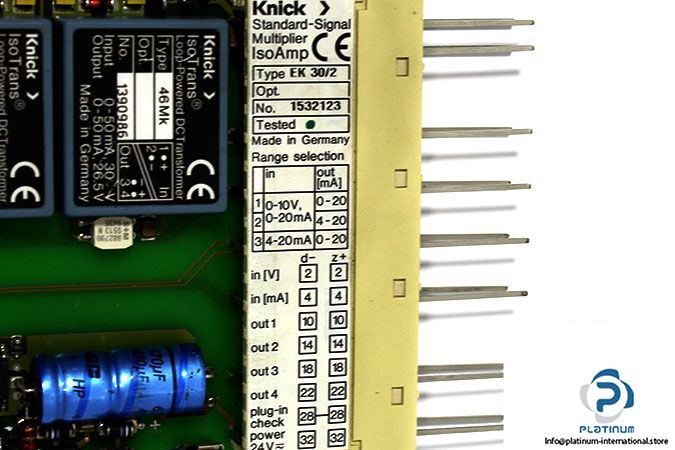

Knick EK 30/2 Standard-Signal Multipliers

Manufacturer: Knick

Type: Protection System

Model: EK30/2



For: Isolation and Conversion of Impressed Measurement Signals

Input Data

• Input1: 0…20 mA or 4…20 mA, voltage drop approx. 400 Mv 0…10 V, input resistance 1 MΩ
• Equipment: 4 Output Channels
• Overload Capacity: 100 Ma

Output Data

• Output: up to 4 channels, 0…20 mA or 4…20 mA
• Load: ≤500 ohms per channel at 20 mA

Power Supply: 24 V AC/DC

Design: Eurocard, 4 HP, Also Refer to Dimension Drawing

Output Channels: 2

Galvanic Isolation: 3-Port Isolation Between Input, Output and Power Supply

Connector: Type F According to DIN 41612

Ambient Temperature: -10…70 °C

Weight: 0.26 kg
