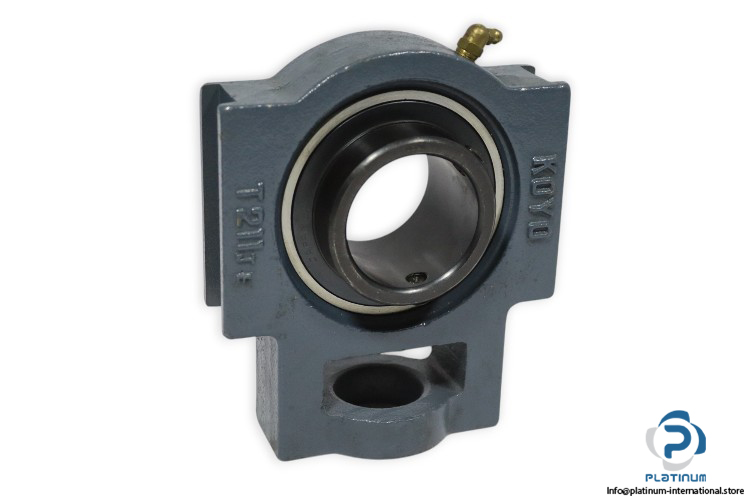

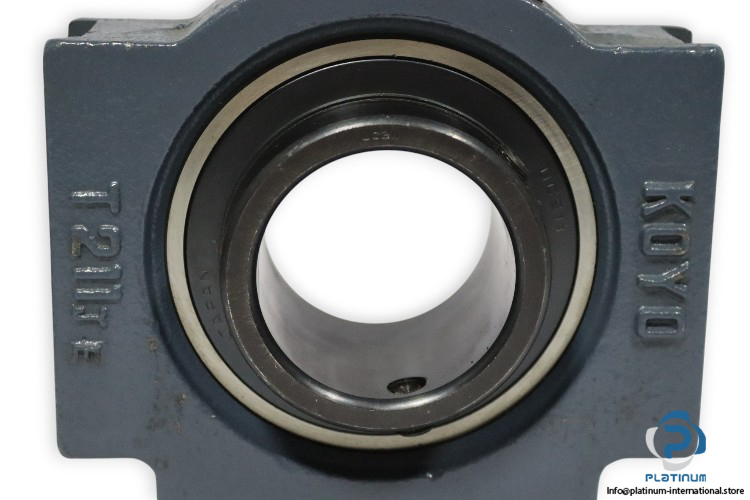

Koyo UCT211 JE Take UP Ball Bearing Unit
New
In stock1 unitReady to ship
Koyo UCT211 JE Take-Up Ball Bearing Unit with a 55 mm shaft diameter, cast iron housing, and a dynamic load capacity of 43.4 kN. Designed for durability and precision alignment.
29.443.455BallbearingCastDynamicHousingIronJEkNKoyoLoadlockingmmscrewSetshaftStaticT211Take-upUCS11UCT211Unit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Koyo TAKE UP BALL BEARING UNIT – UCT211 JE
The Koyo UCT211 JE is a high-performance Take-Up Ball Bearing Unit engineered for durability and reliability. This unit is ideal for applications requiring precision alignment and robust load handling. Below are the detailed specifications:
- Manufacturer: Koyo
- Type: Take-Up Ball Bearing Unit
- Model: UCT211 JE
- Housing No.: T211 JE

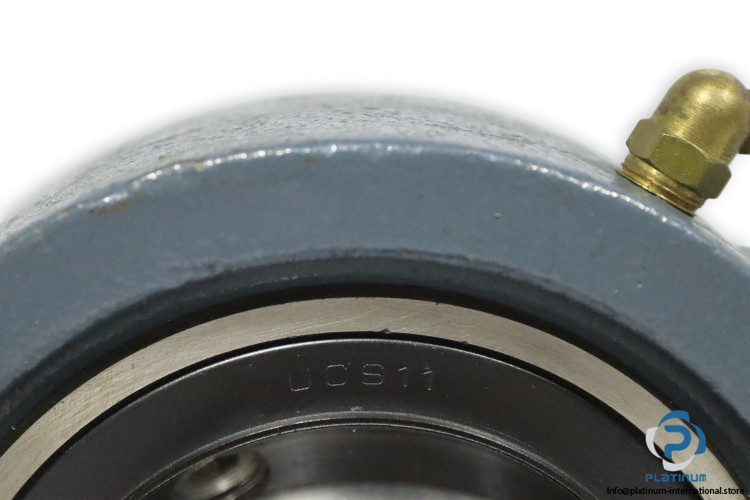

- Bearing No.: UCS11
- Shaft Diameter d: 55 mm
- Overall Width A: 64 mm
- Width of Inner Ring B: 55.6 mm
- Width of Piloting Groove A1: 22 mm
- Overall Height H: 146 mm
- Height of Attachment End H2: 102 mm
- Overall Length L: 171 mm
- Diameter of Attachment Bolt Hole N: 35 mm
- Length of Attachment Slot N1: 25 mm
- Height of Attachment Slot N2: 64 mm
- Length of Piloting Groove L3: 95 mm
- Basic Load Rating:
- Dynamic: 43.4 kN
- Static: 29.4 kN
- Fatigue Load Limit: 1.34 kN
- Housing Type: Take-up
- Material, Housing: Cast Iron
- Locking Device: Set Screw Locking
