Krupp HB-35A Hammer Drill
6 666,66$
Hammer Drill

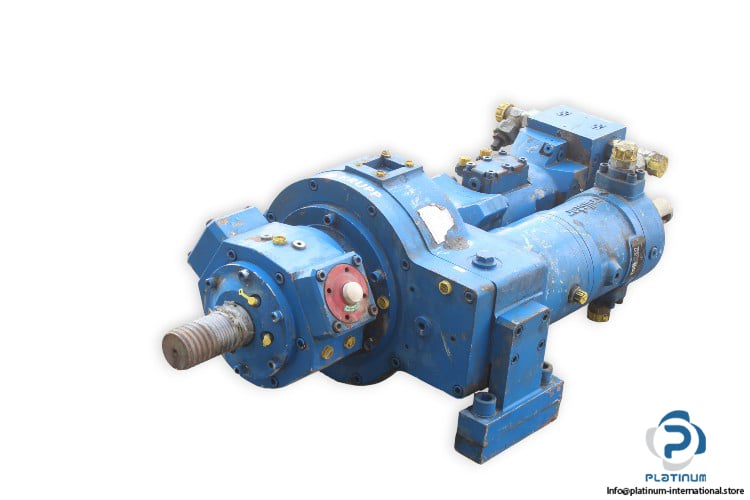

KRUPP HB 35 A hydraulic hammer drill with adjustable impact performance, supplied with Rollstar AM110-1/3/9 MK shiftable planetary gear reducer for flexible speed and torque control.KRUPP HB 35 A Hammer Drill
The KRUPP HB 35 A is a robust hydraulic hammer drill engineered for versatile and demanding drilling applications. It delivers adjustable impact performance and reliable power output, making it suitable for heavy-duty industrial and foundation drilling operations.

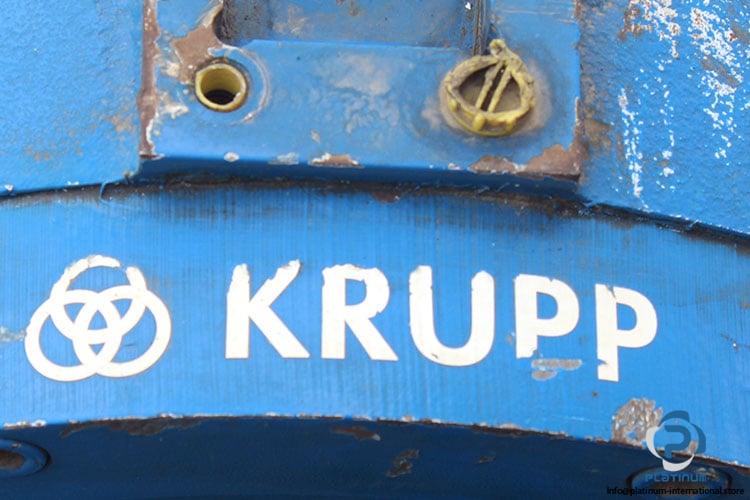

Manufacturer: KRUPP
Type: Hammer Drill

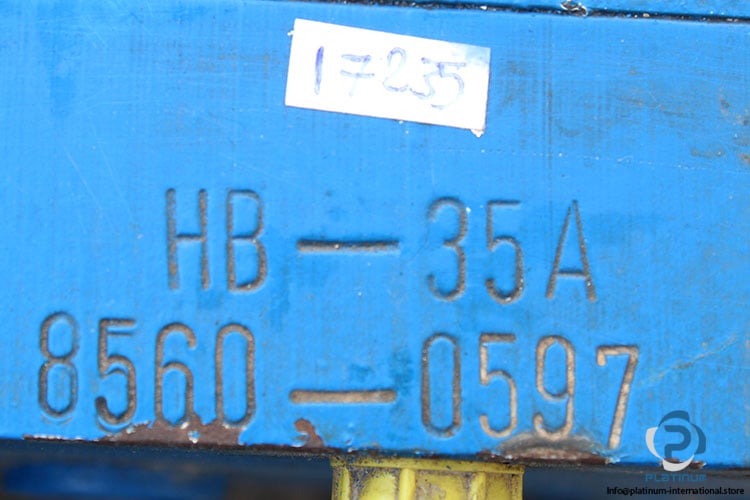

Model: HB 35 A
Part No.: 8560-0597

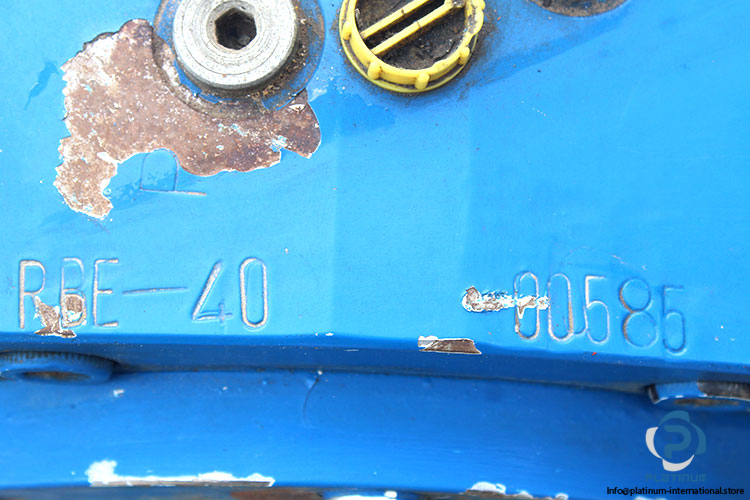

Code: RBE-40 00585
Attachment “ Rollstar AM110-1/3/9 MK Shiftable Planetary Gear Reducer
The Rollstar AM110-1/3/9 MK is a shiftable planetary gear reducer designed to provide flexible speed and torque selection. It is engineered for continuous and intermittent heavy-duty operation when integrated with hydraulic drilling systems.
Technical Information
Output Torque at Continuous 210 bar:
350 / 1165 / 3300 Nm
Output Torque at Intermittent 315 bar:
525 / 1750 / 4950 Nm
Output Speed (per Ratio):
1000 / 296 / 105 min»¹
| Design | Designed for versatile drilling applications |
| Operating Pressure | 180 BAR |
| Oil Flow Rate | 90 liters per minute (lpm) |
| Impact Rate | 1,200 / 1,800 / 2,500 bpm |
| Single Impact Energy | 590 / 400 / 340 Nm |
| Capacity | Suitable for casing diameters up to 133 mm (5 inches) and threaded hollow bars up to 73 mm |

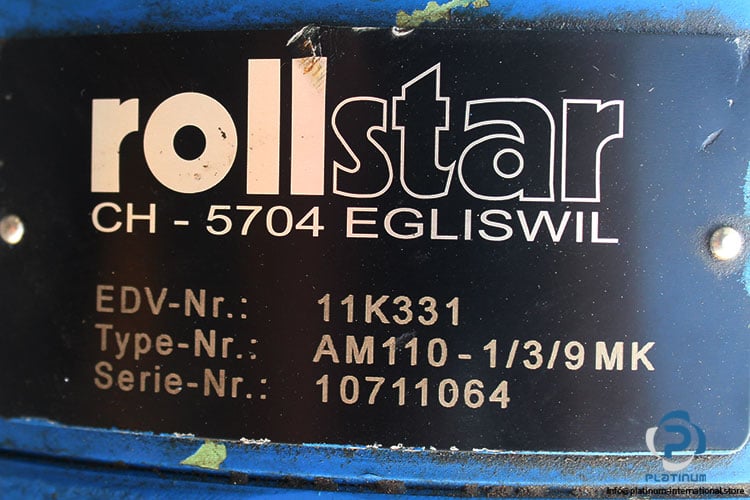

| EDV-No. | 11K331 |
| Serial No. | 10711064 |
| Series | AM |
| Gear Ratios | 1:1 / 1:3.375 / 1:9.550 |
| Output Speed | 0 “ 1800 rpm |
| Displacement | 0.111 / 0.375 / 1.060 liters per revolution |
