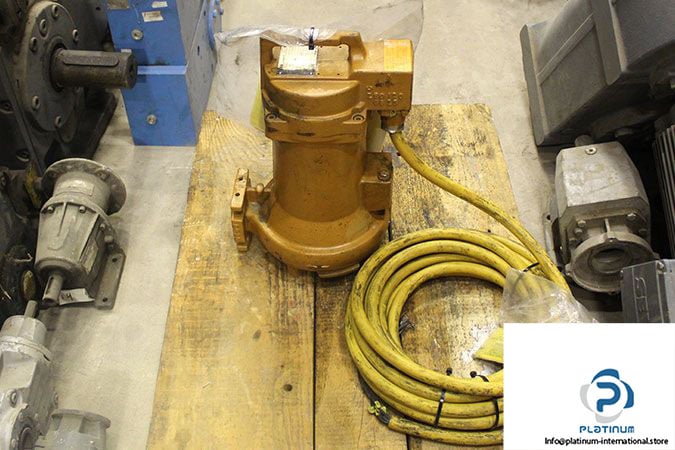

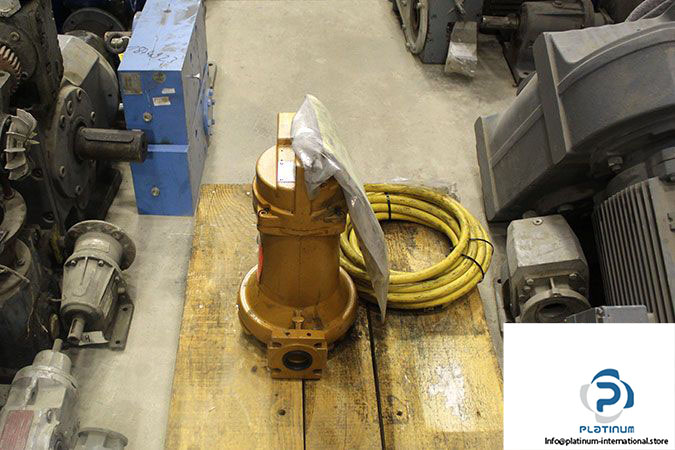

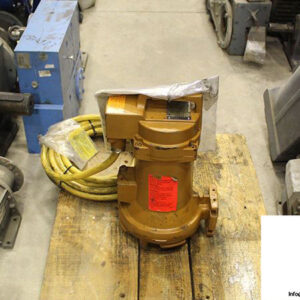

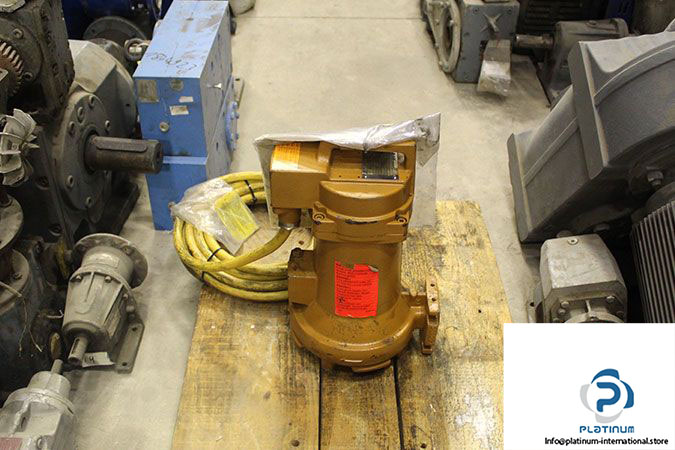

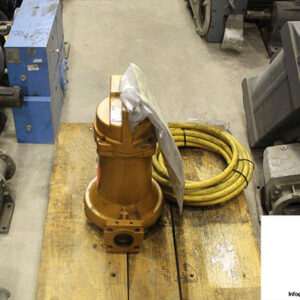

KSB KRT S 40-160/22XG-160 Submersible Pump

Manufacturer: KSB

Type: Submersible Pump

Model: KRT S 40-160/22XG-160

Application

• Automatic Drainage of Pits
• Shafts
• Yards and Cellars at Risk of Flooding
• Lowering of Surface Water Levels
• Drainage
• Drainage of Underground Passages
• Water Extraction from Rivers and Reservoirs

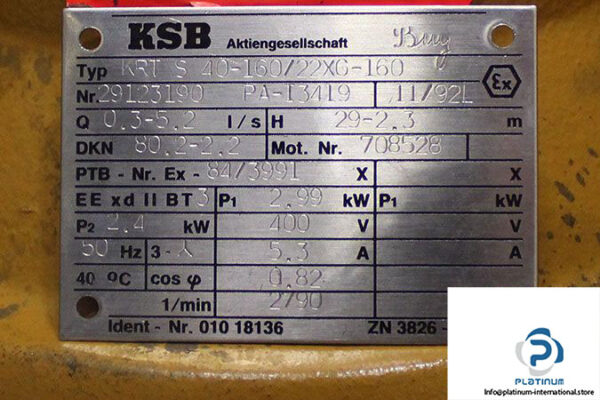

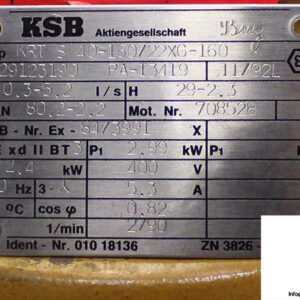

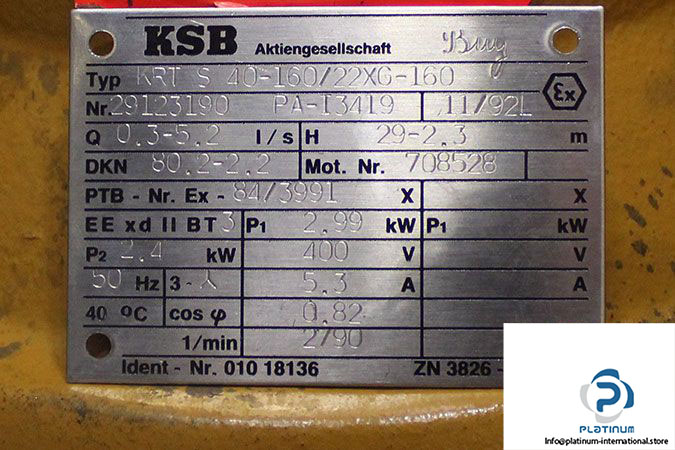

Pump Type: KRT

Motor Type: 80.2-2.2

Impeller Type: Stationary Wet-Well Installation Without Cooling Jacket

Hydraulics Dimension: 40…160

Motor Size: 22

Rated Voltage (Star): 400 V

Rated Current: 5.3 A

Rated Speed: 2790 min^-1

Frequency: 50 Hz

Flow Rate: 0.3…5.2 L/S

Head loss: 2.3…29 m

Rated Power (P₁): 2.99 kW

Rated Power (P₂): 2.4 Kw

Power Factor: 0.82 cos.φ

Explosion Protection Marking: (Ex) Explosion-Proof, to Class I

Weight: 41.2 kg
