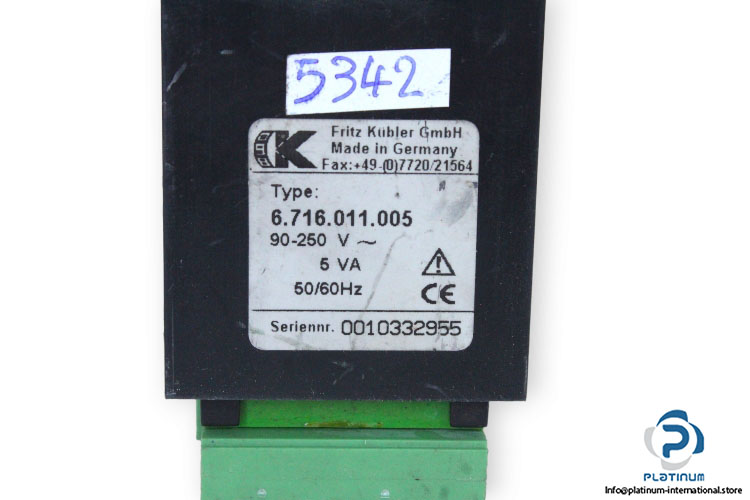

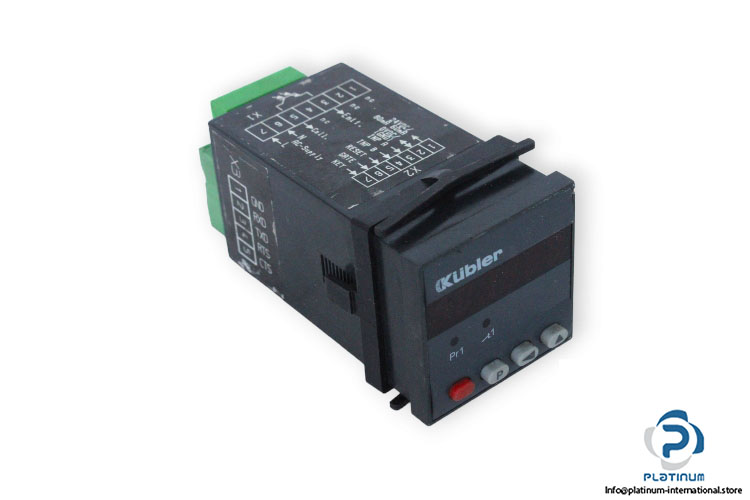

Kubler 6.716.011.005 Preset Counter Electronical
Manufacture: Kubler
Type: Preset counter electronical
Model: 6.716.011.005
Supply voltage: 90 … 250 V AC
Power: 5 VA
Frequency: 50/60 Hz

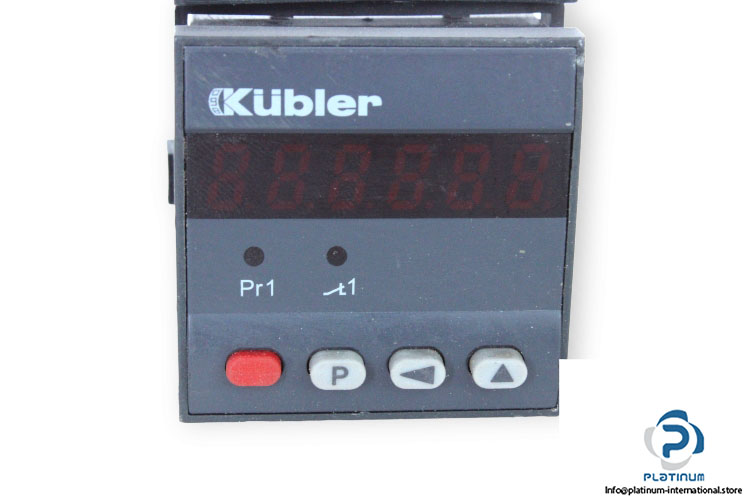

Display: 6-digit red 7 segment LED; 8 mm high

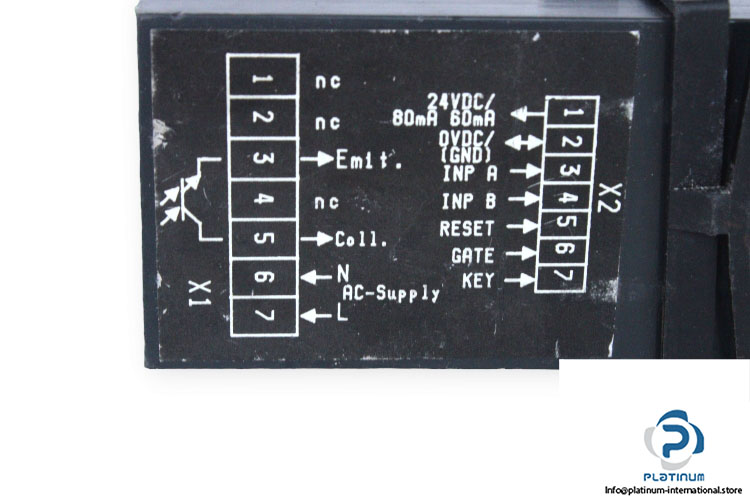

Counting inputs: 2 counting inputs, 4 types of programmable inputs
Input resistance: appr. 10 kΩ
Output: Optocoupler

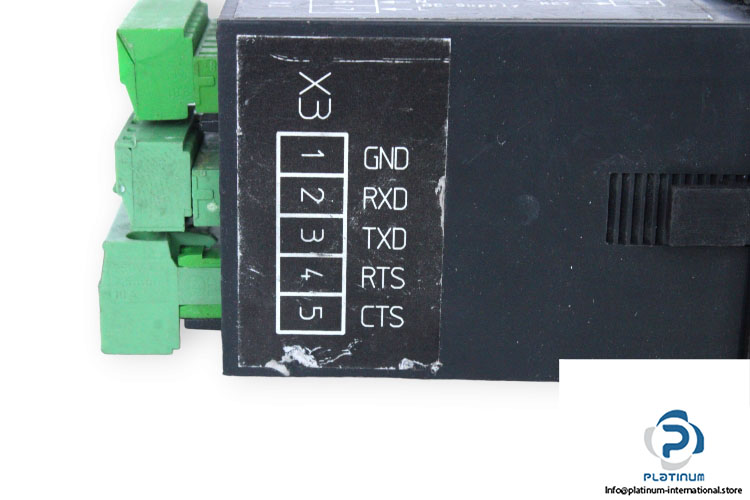

Interface: serial interface RS 232
Transmitter voltage: 24 V DC
Transmitter current: 20 mA/80 mA
Counting frequency: 20 kHz, cab be reduced to 30 Hz Minimum pulse 5 ms
Operating Temperature: -10 … +50 °C
Dimensions: 45 x 102.7 x 45 mm
