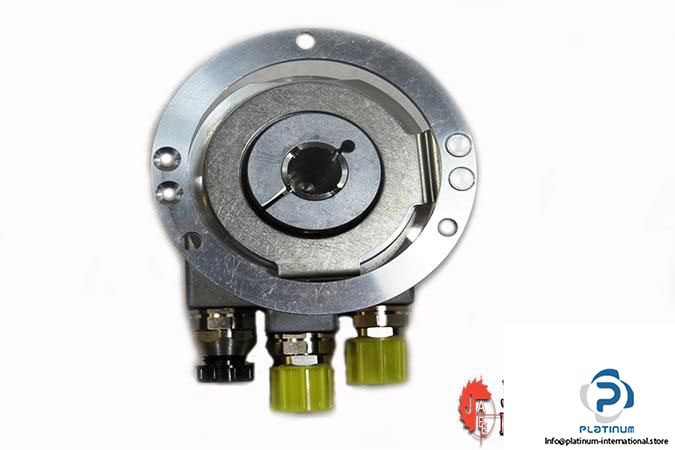

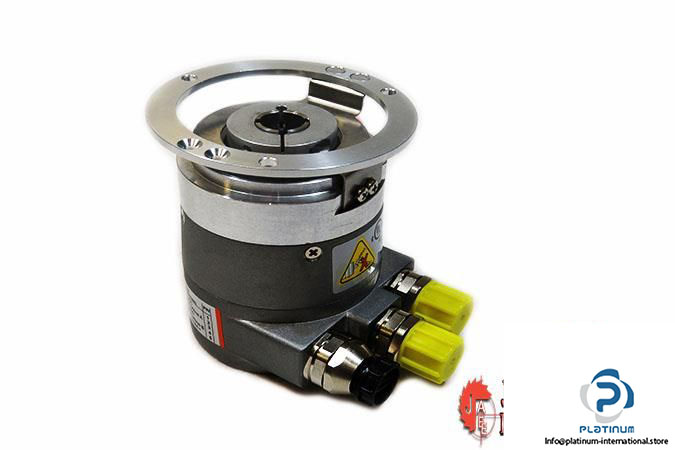

Kubler 8.5878.4432.3112 Absolute Encoder
New
In stock5 unitsReady to ship
245,00$
ABSOLUTE ENCODER
Kübler 8.5878.4432.3112 Absolute Encoder with 16-bit resolution, PROFIBUS DP interface, IP65 protection, and 12 mm blind hollow shaft. Ideal for industrial automation systems.168.5878.4432.3112AbsoluteAutomationBitBlindConnectorDeviceDPEncoderFeedbackhollowIndustrialIP65KüblerM12Profibusshaft
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
KÃœBLER 8.5878.4432.3112 ABSOLUTE ENCODER
The Kübler Absolute Encoder 8.5878.4432.3112 is a robust and highly precise encoder, engineered for demanding industrial environments. With high resolution and reliable PROFIBUS DP communication, it ensures optimal position feedback performance even in harsh conditions.
Manufacturer: Kübler
Type: Absolute Encoder

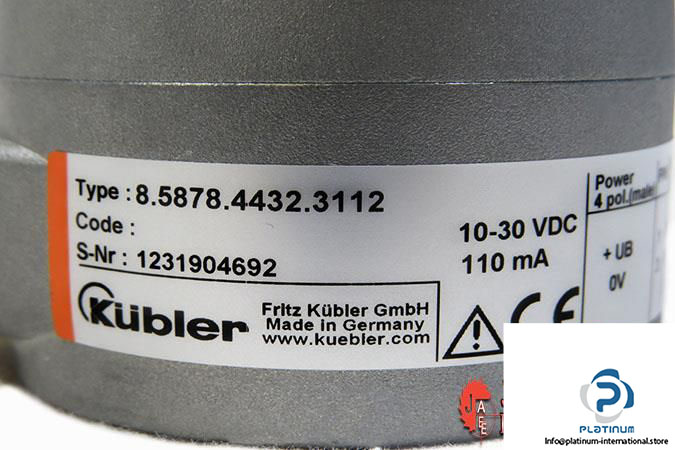

Model: 8.5878.4432.3112
Serial No.: 1231904692

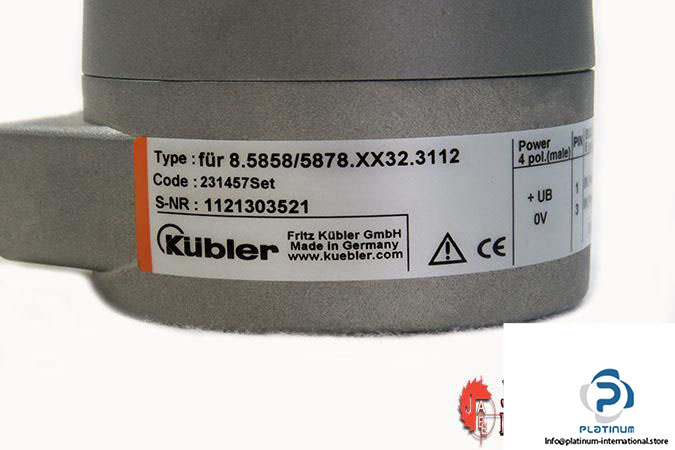

Order No.: 8.5858/5878.XX32.3112
Code: 231457set
Reference No.: 1121303521
| Flange Design | Stator Coupling |
| Shaft Design | Blind Hollow Shaft |
| Shaft Diameter | 12 mm |
| Voltage Supply | 10 / 30 VDC |
| Resolution | 16 bit (Singleturn) |
| Max. Current Consumption | 110 mA |
| Interface | PROFIBUS DP |

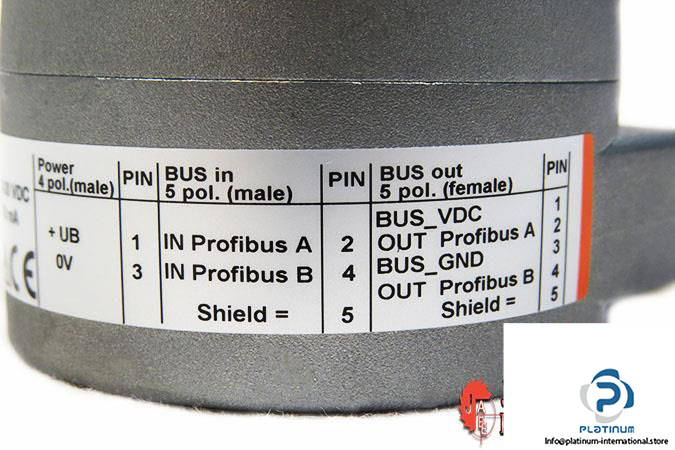

| Type of Connection | M12 Connector, 12-Pin, Radial |
| Baud Rate | Max. 12 Mbit/s |
| Protection Class | IP65 |
| Operating Temperature | -40 / 80 °C |
