Kuhnke 701.002 Rotary Actuator
Used
In stock1 unitReady to ship
Rotary Actuator
Kuhnke 701.002 spring return rotary actuator with clockwise rotation, designed for precise 90-degree angular motion in pneumatic automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

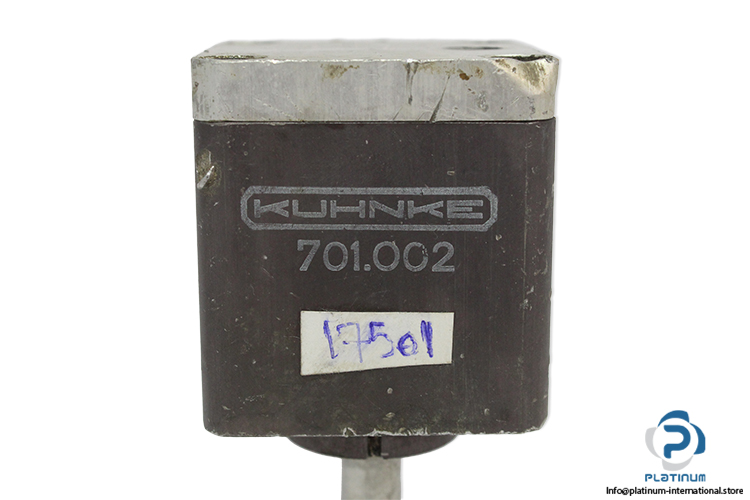

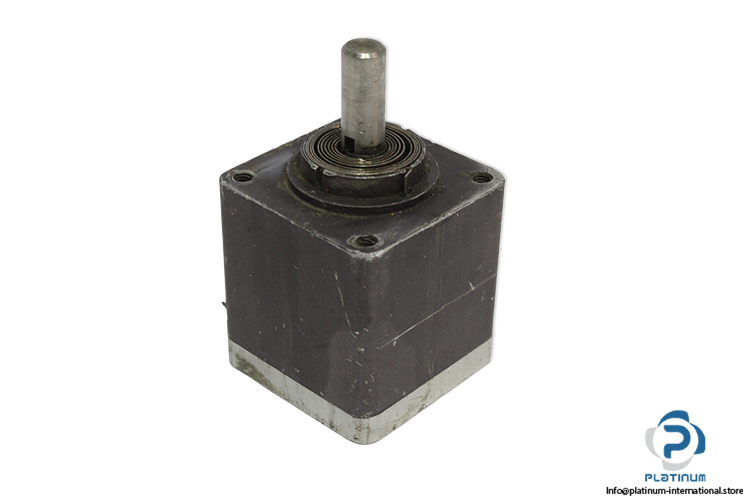

Kuhnke 701.002 Rotary Actuator “ Spring Return, Clockwise Rotation
A precision rotary actuator manufactured by Kuhnke, designed with spring return mechanism and clockwise rotation for reliable angular motion control in pneumatic automation systems. This actuator is suitable for applications requiring defined return torque, compact design, and stable operation with lubricated or non-lubricated compressed air.
Manufacturer: Kuhnke
Type: Rotary Actuator, Spring Return, Clockwise Rotation
Part No.: 701.002
| Operating Medium | Lubricated or non-lubricated compressed air |
| Pressure Range | 2 to 8 bar |
| Temperature Range | -10 to 70 °C |
| Return Torque (Md) | Approx. 0.165 Nm |
| Stroke Volume | Approx. 7 cm³ |
| Angular Travel | 90° + 10° |
| Housing / Shaft | Aluminum alloy / CrNi steel |
| Seals | Perbunan |
| Lubricant | Shell Tellus C10 |
| Filtration | 5 microns filtered |
| Pneumatic Connection | G 1/8 |
