Lafert B36D8P-07013 Servo Motor
Used
In stock1 unitReady to ship
Servo Motor
LAFERT Servo Motor B36D8P-07013 is designed for precise motion control with 0.8 Nm stall torque, 4500 rpm rated speed, and IP 65 protection. It operates at a rated voltage of 150 V and brake voltage of 24 VDC.0.815024450065BrakeControlforhigh-performanceIndustrialIPMotionmotorNmProtectionRatedrpmServoSpeedUseVVDCvoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

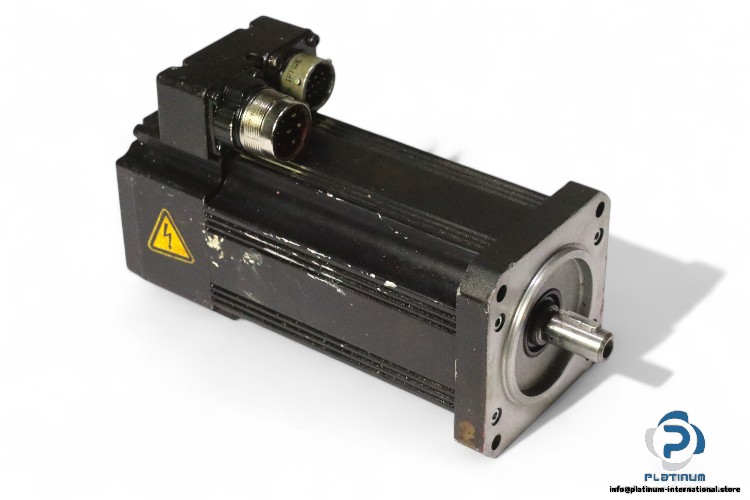

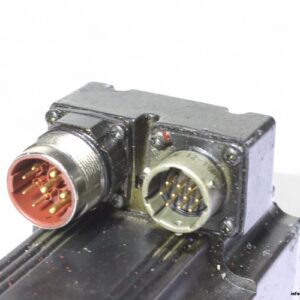

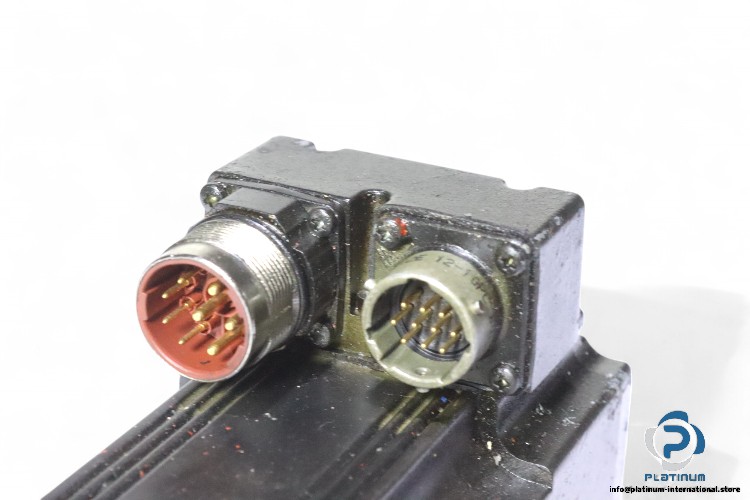

LAFERT Servo Motor B36D8P-07013
The LAFERT Servo Motor B36D8P-07013 is a high-performance motor designed for precise motion control applications. With a rated speed of 4500 rpm and a rated voltage of 150 V, this servo motor provides reliable and efficient performance, making it ideal for industrial and automation systems.
Manufacturer: LAFERT
Model: B36D8P-07013

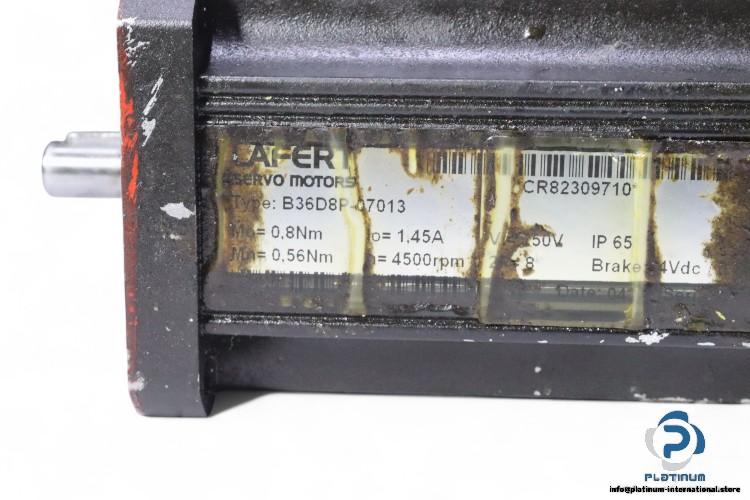

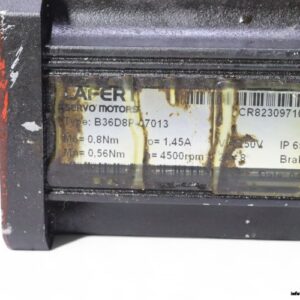

Technical Specifications
- Stall Torque: 0.8 Nm
- Rated Torque: 0.56 Nm
- Stall Current: 1.45 A
- Rated Voltage: 150 V
- Rated Speed: 4500 rpm
- Protection Class: IP 65
- Brake Voltage: 24 VDC
