Lammers 1TZ90011BB622JA4-Z Three-Phase AC Motor
Used
In stock1 unitReady to ship
Three-Phase AC Motor
Lammers 1TZ9001-1BB622JA4-Z industrial motor with 5.5 kW power, dual voltage operation, and IP55 protection, designed for reliable and efficient performance.112M1TZ9001230v400V5.5kWACAutomatDeltaEfficiencyElectricGermanyHighIMB35inductionIndustrialIP55LammersmotorPhasethree
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Lammers 1TZ9001-1BB622JA4-Z Three-Phase AC Motor
The Lammers 1TZ9001-1BB622JA4-Z three-phase AC motor is engineered for high efficiency and reliable performance in demanding industrial environments. Built مطابق EC/EN 60034 standards, this motor delivers consistent power output, robust construction, and optimal operation across multiple voltage configurations.

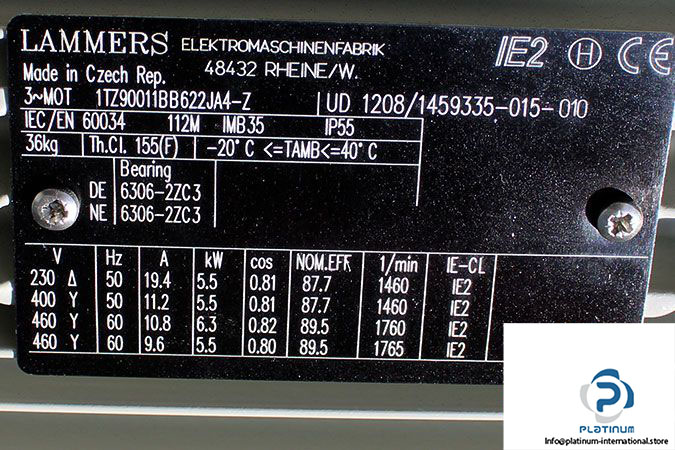

Manufacturer: Lammers
Type: Three-Phase AC Motor
Model: 1TZ9001-1BB622JA4-Z
Part No.: ud 1208/1459335-015-010
Code: 112M IMB35
Bearing:
DE 6306-2ZC3
NE 6306-2ZC3
At 50 Hz
Voltage:
Current:
At 60 Hz
| Standard | EC/EN 60034 |
| Star | 400 V AC |
| Delta | 230 V AC |
| Star | 11.2 A |
| Delta | 19.4 A |
| Power | 5.5 kW |
| Speed | 1460 1/min |
| Power Factor | 0.81 |
| Voltage | Star: 460 V AC |
| Current | 10.8 / 9.6 A |
| Power | 6.3 / 5.5 kW |
| Speed | 1760 / 1765 r/min |
| Power Factor | 0.82 / 0.80 |
| Temperature | -20 / 40 °C |
| Thermal Class | F |
| Protection Class | IP55 |
