Lapp AB-C4-10,0PUR-M8FS Sensor/Actuator-Cable
New
In stock17 unitsReady to ship
Sensor/Actuator Cable
LAPP UNITRONIC® SENSOR M8 AB-C4-10,0PUR-M8FS cable with 4-pin connector, IP65/IP67/IP68 protection, and 4 A rated current for harsh industrial environments.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

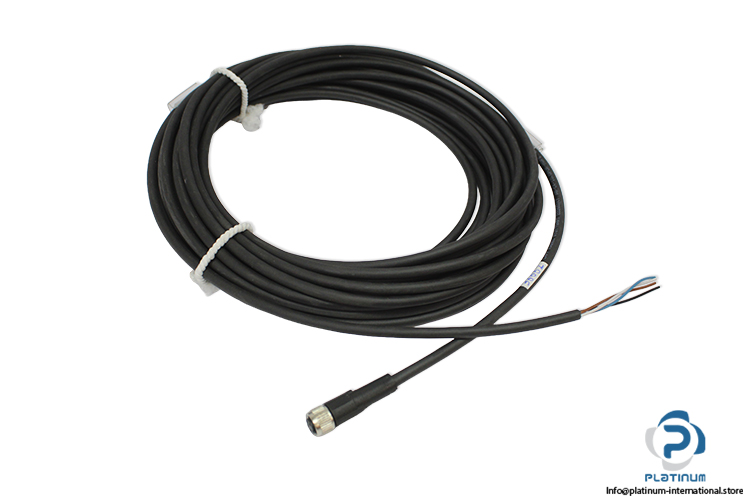

LAPP AB-C4-10,0PUR-M8FS Sensor/Actuator Cable
The LAPP AB-C4-10,0PUR-M8FS UNITRONIC® SENSOR M8 cable is a high-quality sensor/actuator patch cord designed for increased mechanical stress and harsh operating conditions. It provides reliable signal and power transmission in industrial automation environments.
Manufacturer: LAPP
Type: Sensor/Actuator Cable
Model: AB-C4-10,0PUR-M8FS
Item No.: 22260317
Product Series: UNITRONIC® SENSOR M8
Material:
Minimum Bending Radius:
Ambient Temperature (Operation):
Classification ETIM 6:
| Connector 1 | 4-Pins |
| Connector 2 | 4-Wire |
| Cable Information | 30 V, 4 A, UL |
| Rated Current | 4 A |
| Protection Rating | IP65 / IP67 / IP68 |
| Contact | CuSn |
| Contact Surface | Ni / Au |
| Knurl | Zinc Die-Cast, Nickel-Plated |
| Gripping Body | TPU, Flame-Retardant, Self-Extinguishing |
| Fixed Installation | 5 x Outer Diameter |
| Flexing | 10 x Outer Diameter |
| Plug/Socket | -25°C to +90°C |
| Fixed Installation | -40°C to +80°C |
| Flexing | -25°C to +80°C |
| Coding | A-Standard |
| Class-ID | EC001855 |
| Class Description | Sensor-Actuator Patch Cord |
| Application Range | For Increased Mechanical Stress And Harsh Operating Conditions |
