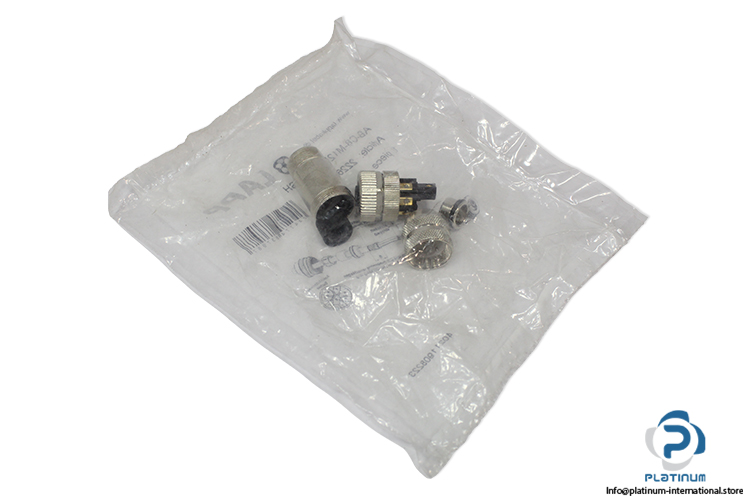

Lapp AB-C8-M12FS-PG9-SH Sensor/Actuator Connector
New
In stock15 unitsReady to ship
Sensor/Actuator Connector
LAPP AB-C8-M12FS-PG9-SH straight M12 connector, 8-position, A-coded, shielded, IP67 rated with screw termination and Pg9 cable connection for industrial automation applications.aAB-C8-M12FS-PG9-SHActuatorAutomationCodedconnectionConnectorIndustrialIP67LappM12screwSensorShielded
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

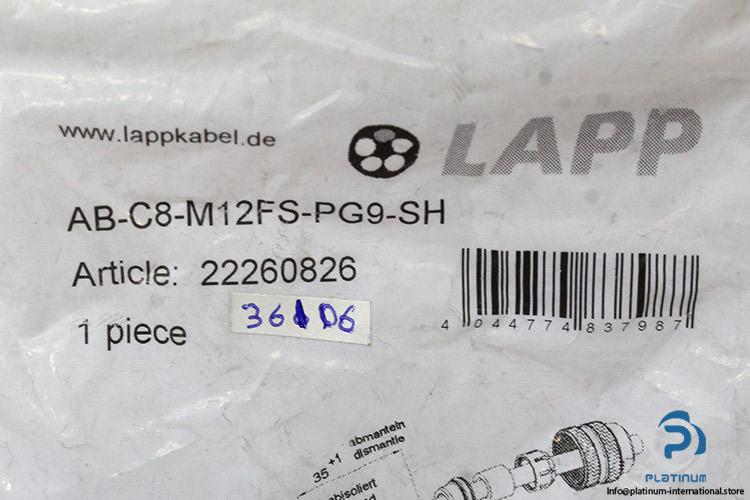

LAPP AB-C8-M12FS-PG9-SH Sensor/Actuator Connector
The LAPP AB-C8-M12FS-PG9-SH is a straight M12 sensor/actuator connector designed for secure and reliable signal transmission in industrial automation systems. This 8-position, A-coded connector features a shielded design with metal knurl and Pg9 cable screw connection, ensuring robust mechanical stability and protection in demanding environments.
Manufacturer: LAPP
Type: Sensor/Actuator Connector
Model: AB-C8-M12FS-PG9-SH
Art No: 22260826
| Connector Type | Straight Socket |
| Number Of Positions | 8-Pos. |
| Interface | M12, A-Coded |
| Shielding | Shielded |
| Connection Type | Screw Connection |
| Cable Screw Connection | Pg9 |
| Outer Diameter, Cable | 6.0 “ 8.0 mm |
| Termination Cross Section (AWG) | 18 “ 24 |
| Termination Cross Section (mm²) | 0.25 “ 0.75 |
| Mating Cycles | ‰¥ 100 |
| Ambient Temperature | -40 To +85 °C |
| Protection Degree | IP 67 |
| Electrical Properties Rated Voltage | 30 V |
| Rated Current | 2 A |
| Contact Resistance | ‰¤ 3 m„¦ |
| Insulation Resistance | ‰¥ 100 M„¦ |
| Proof Voltage, Contact-Contact | ‰¥ 0.65 kV |
| Proof Voltage, Contact-Housing | ‰¥ 0.65 kV |
| Overvoltage Category | II |
| Pollution Degree | 3 |
| Contact Carrier | PA |
| Contact Carrier Inflammability Class (UL 94) | V0 |
| Contacts Base Material | CuSn |
| Standard | M12-Connector According To DIN EN 61076-2-101 |
