LD 200/24V Automatic Electronic Condensate Drain
Used
In stock1 unitReady to ship
Automatic Electronic Condensate Drain
The LD 200/24V condensate drain operates at 24 V, handling pressures up to 16 bar and flow up to 10 liters per hour. It features IP65 protection, M12 alarm connection, and compact construction for reliable air system drainage.175301200/24V24AiralarmAutomaticCompressedCondensateconnectionDevicedrainElectronicENIndustrialIP65LDM12SystemVValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

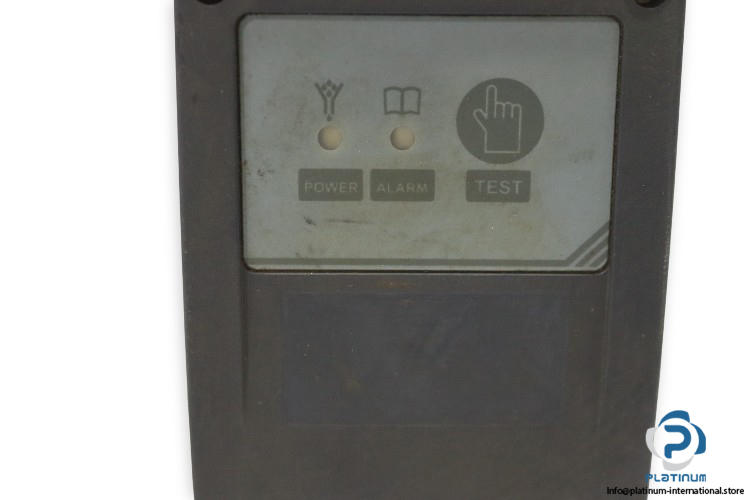

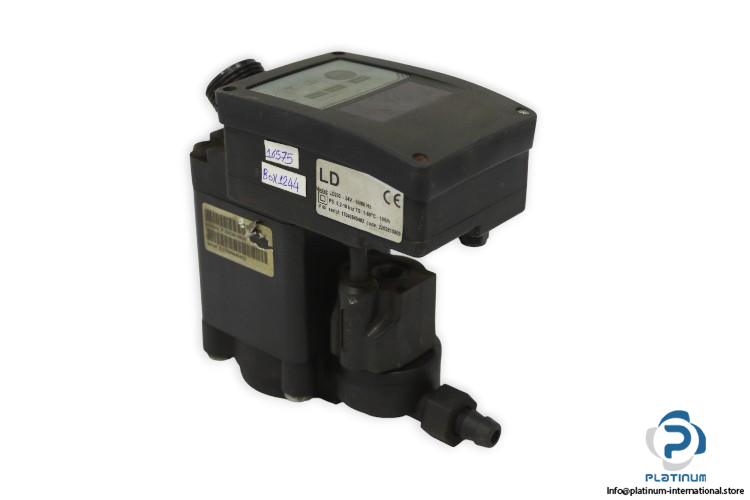

LD 200/24V Automatic Electronic Condensate Drain
The LD 200/24V Automatic Electronic Condensate Drain is designed to efficiently remove condensate from compressed air systems. It offers reliable electronic control, high discharge capacity, and durable IP65 protection for consistent operation in industrial environments.
Type: Automatic Electronic Condensate Drain

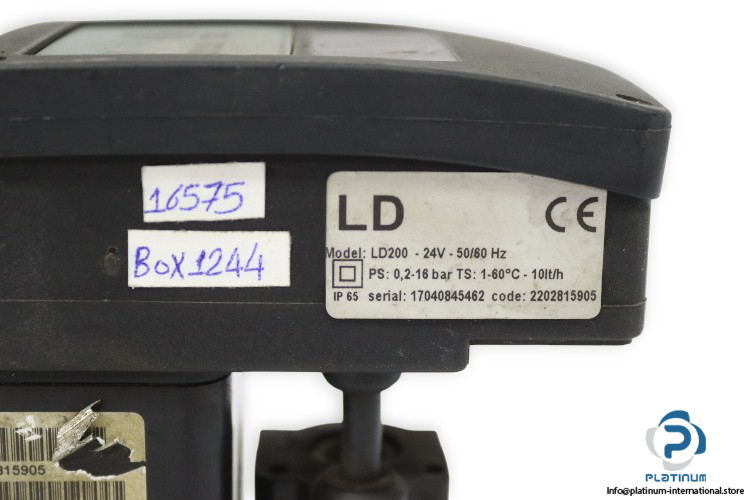

Model: LD 200/24V

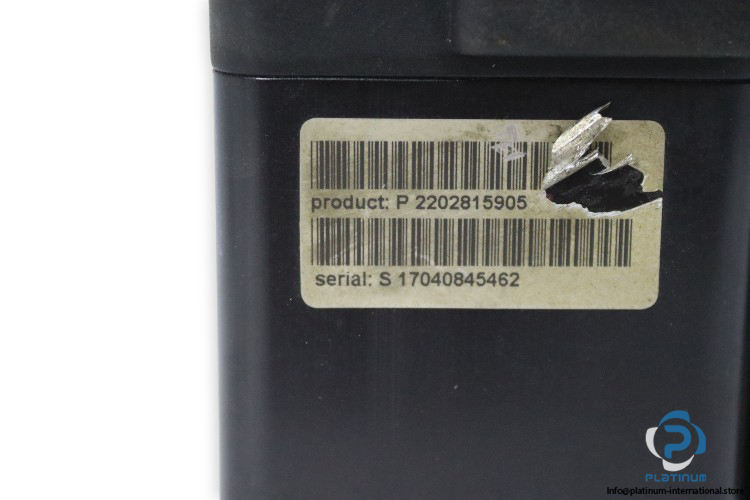

Serial Number: 17040845462
Code: 2202815905
Series: LD
| Rated Voltage | 24 V, 50/60 Hz |
| Pressure Range (PS) | 0.2 to 16 bar |
| Flow Capacity | 10 liters per hour |
| Temperature Range | 1 to 60 degree Celsius |
| Protection Class | IP65 |
| Electric Connection | EN 175301-803 Type B |
| Alarm Connection | M12 Code A 4 poles |
| Inlet Connection | 1 x G1 by 2 F |
| Connection | G3 by 4 |
| Dimension | 155 x 163 x 69 millimeters |
