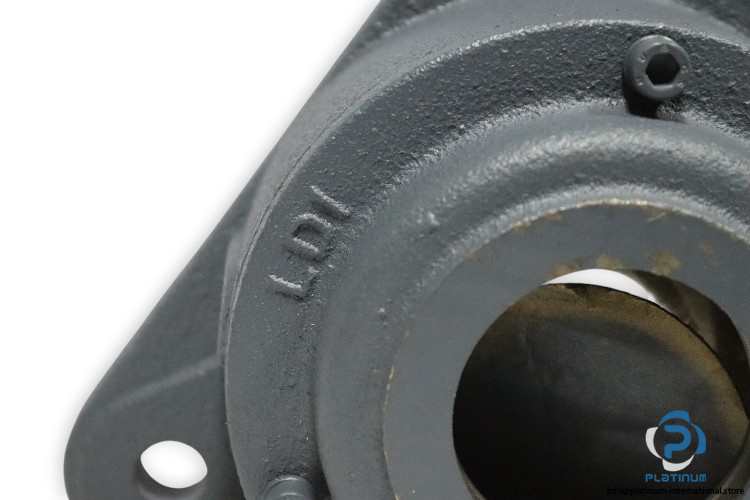

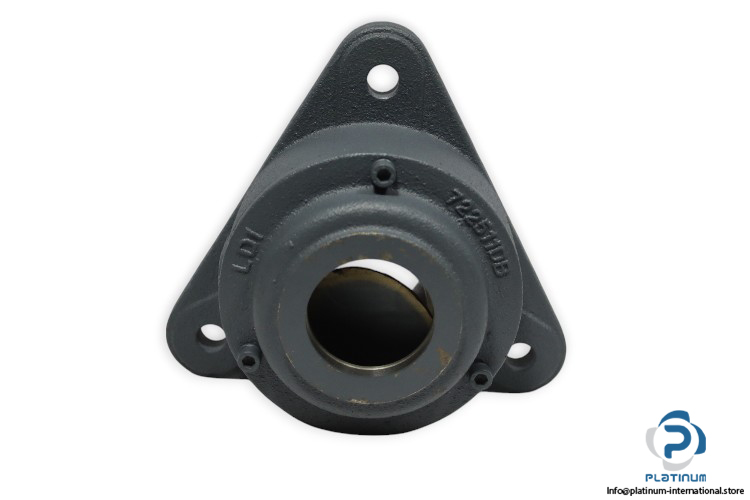

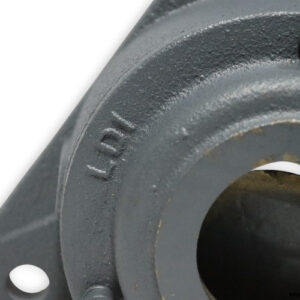

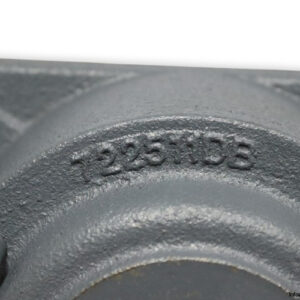

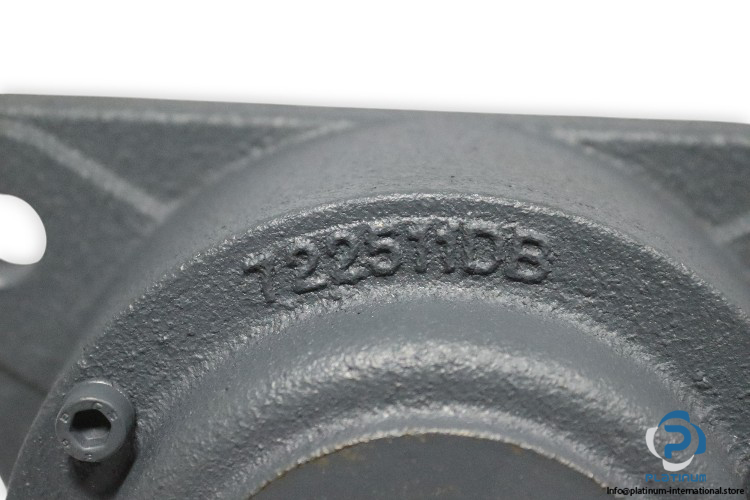

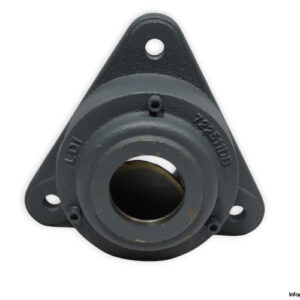

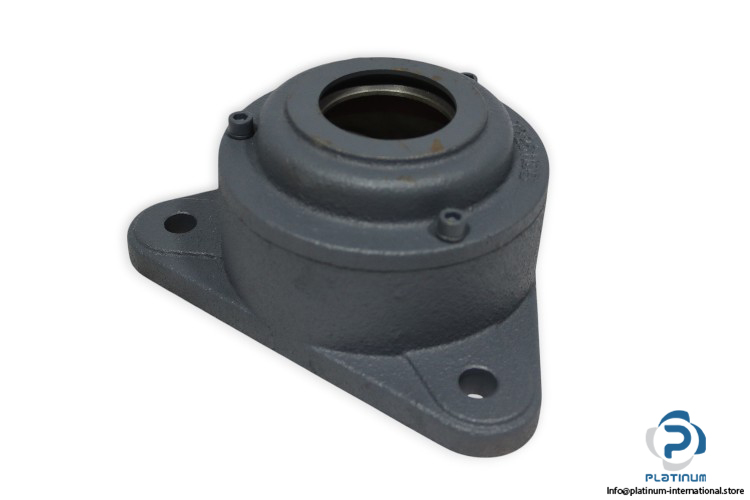

LDI 722511DB Flanged Housing Unit

LDI Flanged Housing Unit 722511 DB

Manufacturer: LDI

Type: Flanged Housing Unit

Model: 722511 DB

The LDI Flanged Housing Unit 722511 DB is a high-quality and reliable solution for supporting bearings in a wide range of industrial applications. Designed for use with stepped cylindrical shafts or through shafts, this flanged housing unit ensures smooth and stable operation. With a robust construction, it provides secure mounting, contributing to the longevity and performance of machinery. The unit is available in different suffixes to cater to specific bearing and shaft requirements, providing versatility and flexibility for various industrial setups.

Technical Specifications:

• Bore Diameter (d): 50 mm
• Outer Diameter Cover: 128 mm
• Housing Length: 192 mm
• Housing Foot Height: 12 mm
• Bearing Center Height: 65 mm
• Housing Height: 172 mm
• Mounting Hole/Punches Distance: 170 mm
• Mounting Hole Diameter: 14 mm
• Suffix:
  • -D: Bearing Housing for Bearing with Withdrawal Sleeve for Stepped Cylindrical Shaft
  • -B: Bearing Housing for Through Shaft

This versatile flanged housing unit is designed to meet the demanding needs of various industrial machinery, offering superior performance and easy installation in a wide range of applications.
