Legrand 4 004 05 Modular Distribution Block
New
In stock4 unitsReady to ship
29,99$
Modular Distribution Block
LEGRAND 4 004 05 4-pole modular distribution block rated at 100A, 500V insulation, 26kA peak withstand current, designed for compact power distribution in electrical panels.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

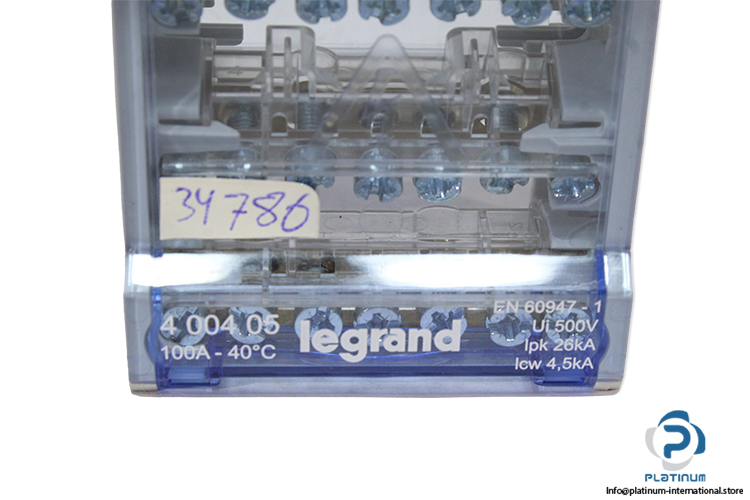

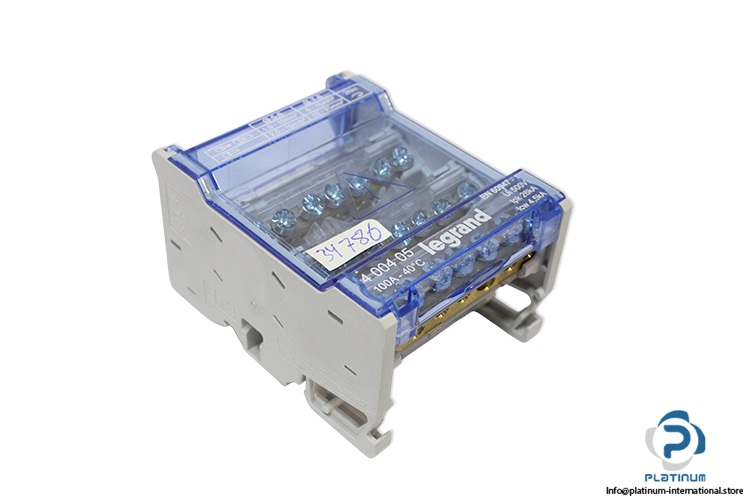

LEGRAND 4 004 05 Modular Distribution Block

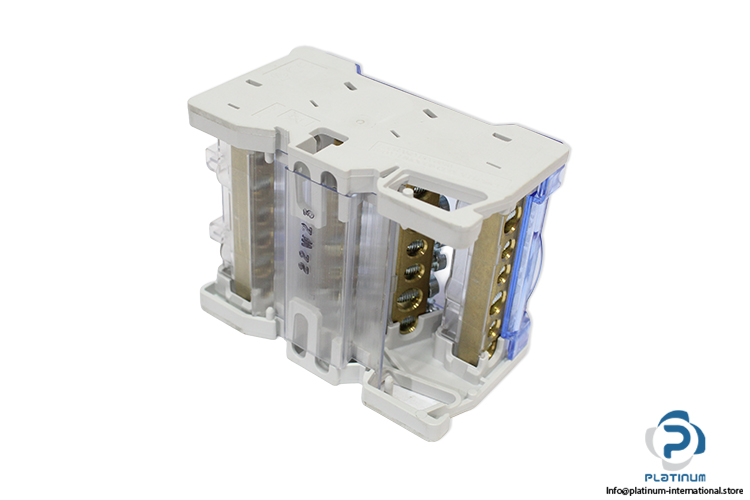

The LEGRAND 4 004 05 is a 4-pole monobloc modular distribution block designed for efficient and compact power distribution within electrical panels. Featuring staggered bars and multiple connection points per busbar, it provides reliable grouping of incoming and outgoing circuits in residential and small commercial installations.
Manufacturer: LEGRAND
Type: Modular Distribution Block
Model: 4 004 05

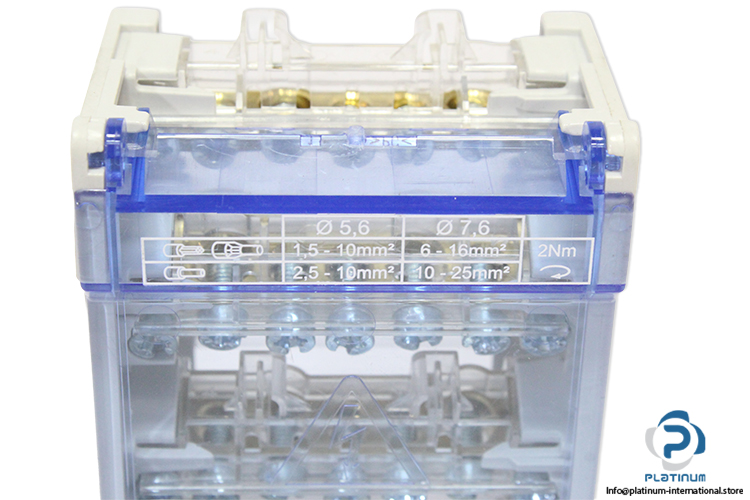

Connections Per Bar (Rigid Conductors mm²):
Used for distributing power within electrical panels, commonly in residential or small commercial settings. It enables grouping of incoming supply lines and multiple outgoing circuits in a compact modular solution.
| Configuration | 4-Pole (Tétrapolaire) Monobloc Modular Distribution Block With Staggered Bars |
| Current Rating | 100 A At 40°C |
| Connections | 7 Connections Per Busbar |
| Insulation Voltage | 500 V |
| Peak Withstand Current | 26 kA |
| Incomer | 10 To 25 mm² |
| Outgoing Lines | 1 x 10 To 25 mm², 5 x 2.5 To 10 mm² |
| Number Of Modules | 4 |
| Standard | EN 60947-1 |
