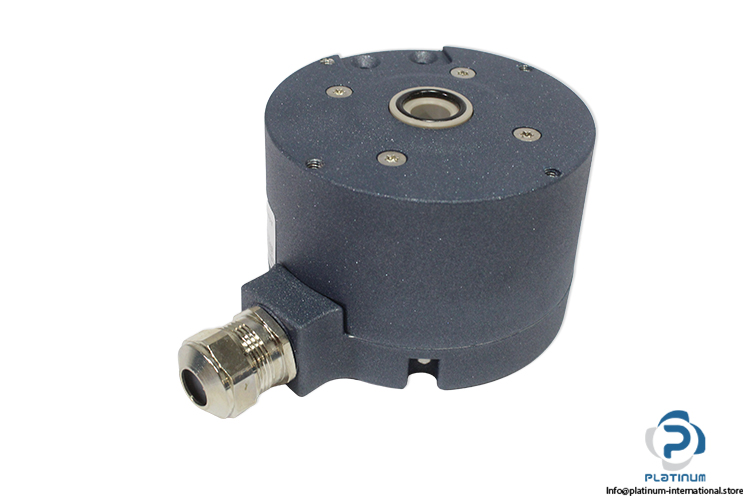

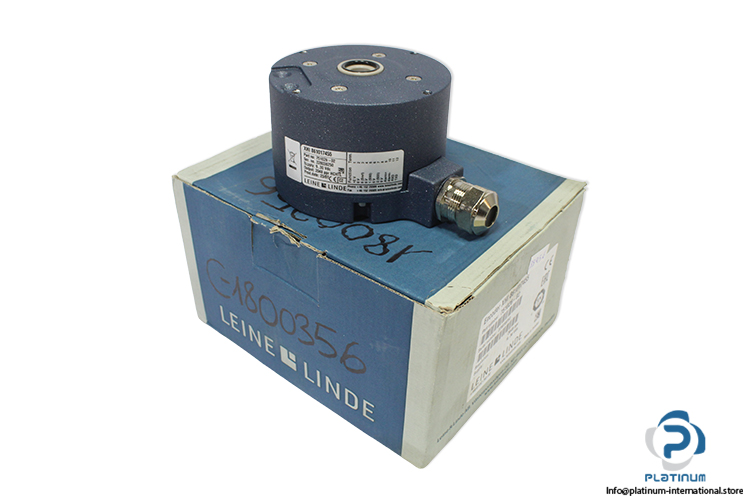

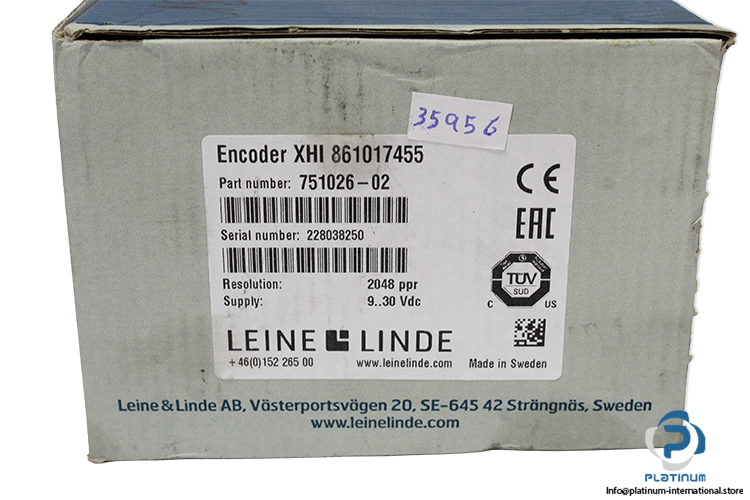

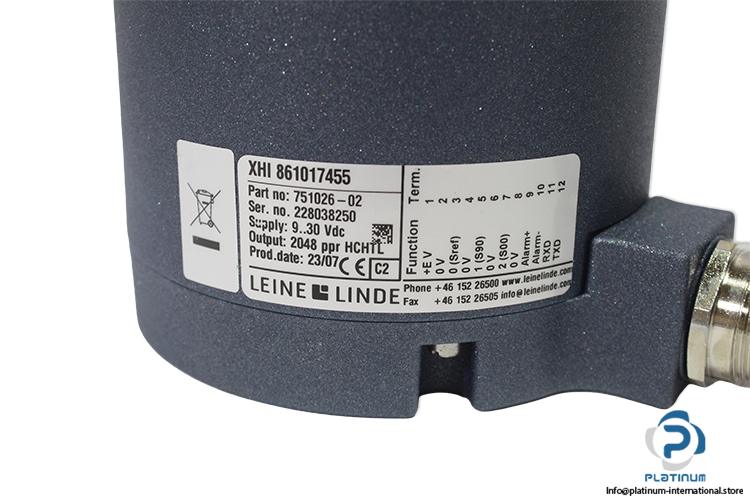

Leine Linde XHI 861017455 / 751026-02 Incremental Encoder

In stock2 unitsReady to ship

1 333,33$

Incremental Encoder Leine Linde incremental encoder with 2048 ppr resolution, HTL output, blind hollow shaft, and IP66 protection for reliable industrial feedback applications.

Manufacturer
LEINE LINDE
SKU
1100707
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.751026-02
Serial number228038250
Cover materialAluminium (coated)
Shaft load (axial/radial)100 N / 300 N
Rotational speed max6000 rpm
Shaft materialStainless steel with insulated peek insert
Short circuit protectedYes
Polarity protectedYes
Operating temperature20 °C .. +85 °C
Ingress protection class[IEC 60529] IP67 (IP66 at shaft inlet)
Vibration [IEC 6006826]200 m/s²
Shock [IEC 60068227]1500 m/s²
Current consumption60 mA at 24 Vdc (Max. 80 mA)
Output load± 40 Ma
Output frequency max200 kHz
Cable length max350 m at 100 kHz
Channel separation90° el ± 25° el
Dividing error±50° el
Shaft typedia 12 mm blind hollow shaft
Flange type86 flange
Resolution2048 ppr
Power supply9 - 30 Vdc
Output signalHCHTL
Connection typeCable gland + ADS Classic
Connecting directionRadial Cable gland dimension M20 for Ø8 11 mm cables
Number of channels3
Advanced Diagnostic SystemADS Classic
Stock keyCON003
ConditionNew
SKU1100707
Weight1,15

More From LEINE LINDE

Leine Linde RHI 594 Rotary Encoder
Used

LEINE LINDE

Leine Linde RHI 594 Rotary Encoder

SKU: 1084741

Qty: 1

166,66$
Leine Linde RSI 503 2048PPR Incremental Encoder
Used

LEINE LINDE

Leine Linde RSI 503 2048PPR Incremental Encoder

SKU: 1044994

Qty: 2

440,00$

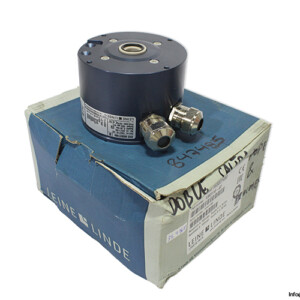

Leine Linde XHD 865027490 B Incremental Encoder
