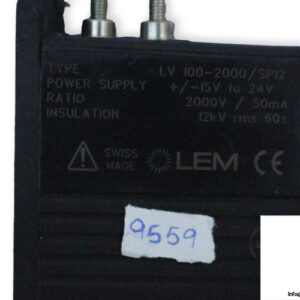

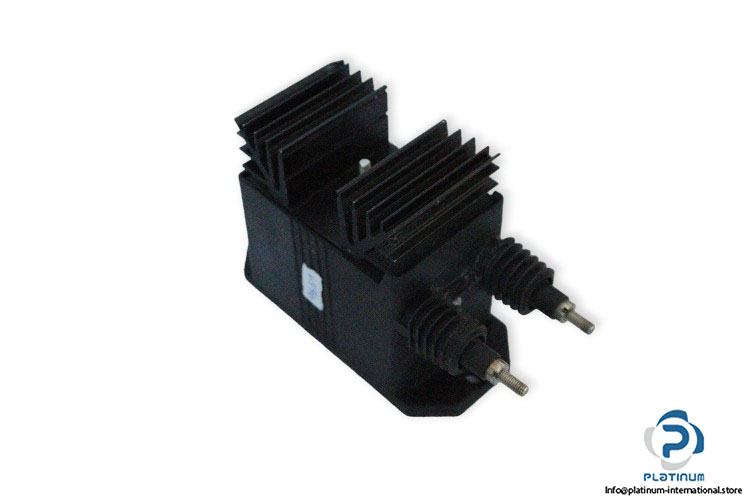

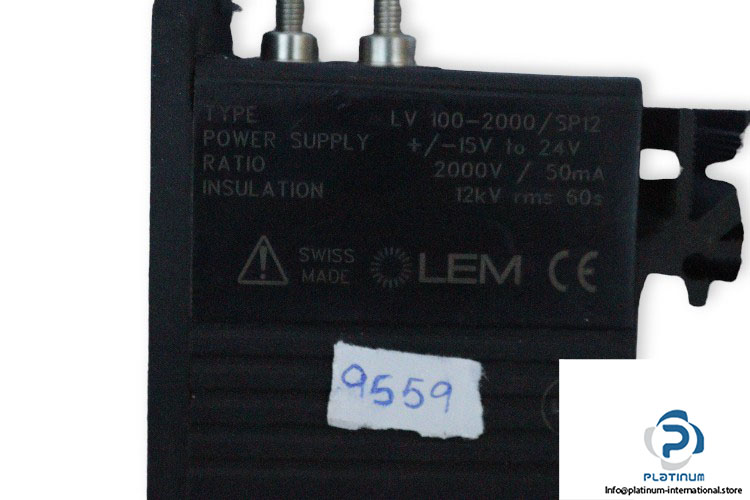

LEM LV 100-2000/SP12 Voltage Transducer

Manufacture: Lem
Type: Voltage Transducer
Model: LV 100-2000/SP12

Applications
● Single or three phase inverters
● Propulsion and braking choppers
● Propulsion converters
● Auxiliary converters
● Battery chargers
Features
● Closed loop (compensated) voltage transducer using the Hall effect
● Insulating plastic case recognized according to UL 94-V0
● Primary resistor ‒ incorporated within the housing
Primary nominal RMS voltage V_PN: 2000 V
Primary nominal RMS current I_PN: 5 mA
Total primary power loss: 10 W
Connection of primary: 2 M5 threaded studs
Measuring resistance R_M: with ±15 V @ ±2000 V_max (0 … 210 Ω) ,@ ±3000 V_max (0 … 125 Ω)
with ±24 V @ ±2000 V_max (0 … 410 Ω), @ ±3000 V_max (110 … 250 Ω)
Secondary nominal RMS current I_SN: 50 mA
Conversion ratio K_N: 2000 V / 50 mA
Supply voltage Uc: ±15 … 24 V

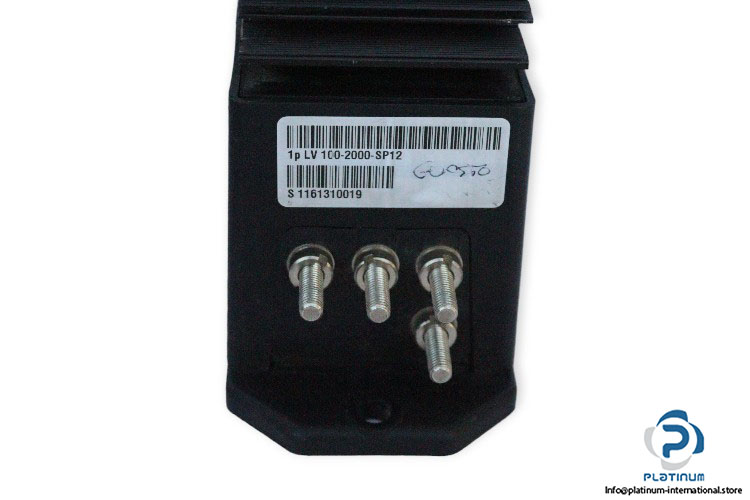

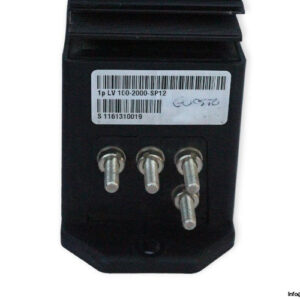

Connection of secondary: 4 M5 threaded studs
RMS voltage for AC insulation test, 50 Hz, 1 min Ud: 12 kV
Insulation test time: 60 s
Current consumption Ic: < 37 (@ ±24 V)+I_S mA
Ambient operating temperature: -40 … +85°C
Dimensions: 55.5 x 169.5 x 124 mm
