Lenze MCS 09L41-RS0B0-Z0D0-ST6S00N-R0SU Geared Servo Motor
Used
Available on request
GEARED SERVO MOTOR
LENZE MCS 09L41-RS0B0-Z0D0-ST6S00N-R0SU is a high-performance geared servo motor with 1.9 kW power, 4.5 Nm rated torque, and an IP65 protection class. It comes with a GFL05-2S helical gearbox delivering 657 Nm torque with a 14.538 ratio.09L411.9AutomationControlDriveGearGearboxGearedGFL05-2SHelicalHighIndustrialIP65kWLenzeMCSMotionmotorPrecisionServoSolutionsTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

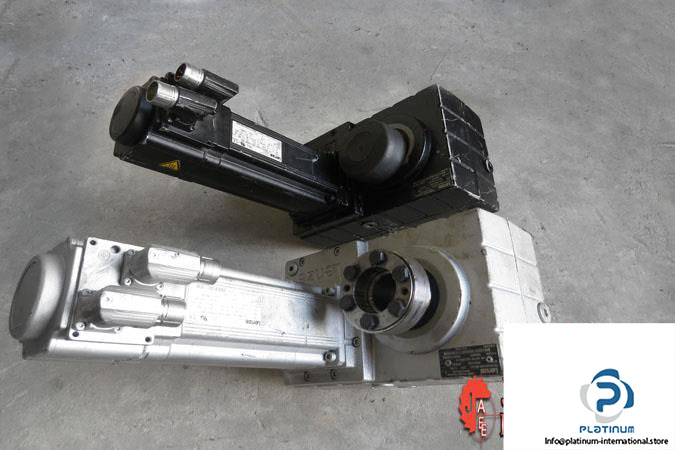

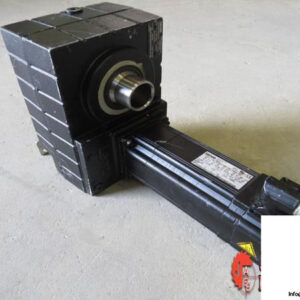

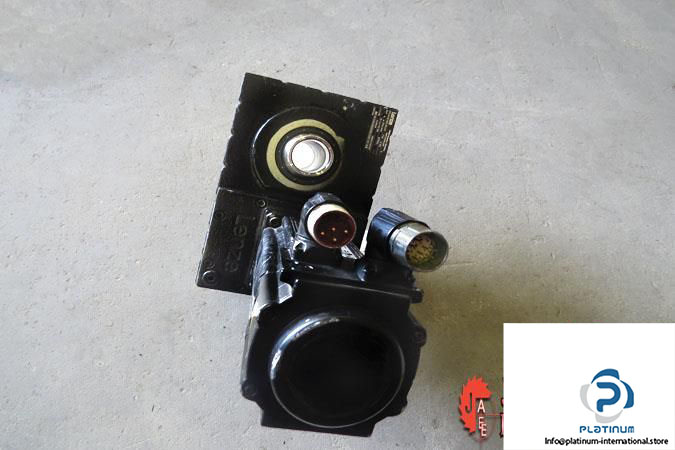

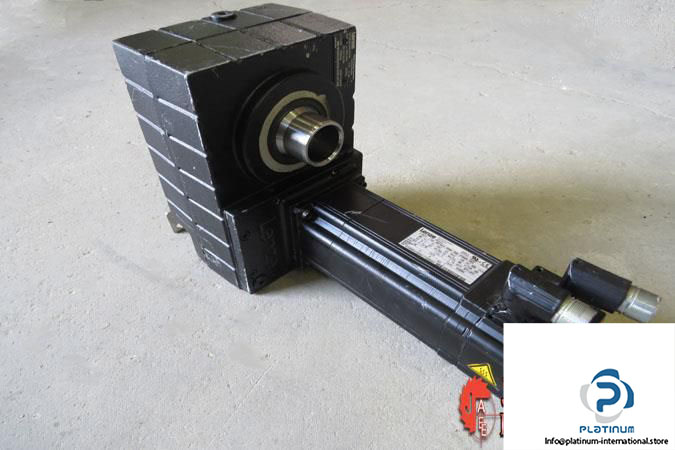

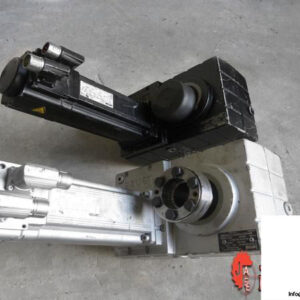

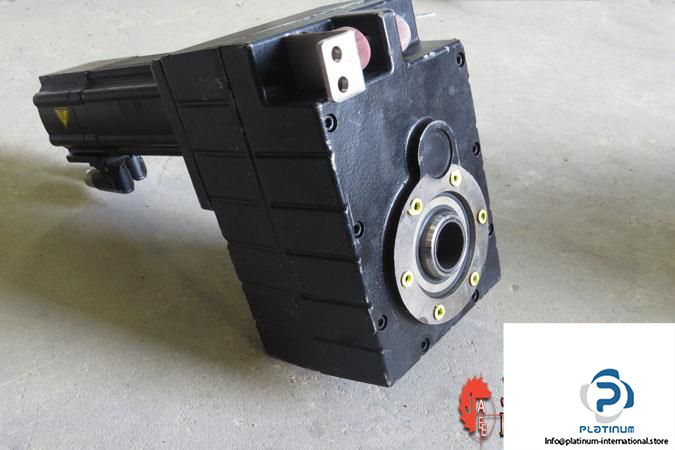

LENZE MCS 09L41-RS0B0-Z0D0-ST6S00N-R0SU GEARED SERVO MOTOR WITH GFL05-2S SHAFT-MOUNTED HELICAL GEARBOX
This powerful and precise LENZE geared servo motor combines high-performance servo technology with a robust helical gearbox. It is designed for demanding industrial automation systems requiring high torque, dynamic response, and long-lasting protection in tough environments.

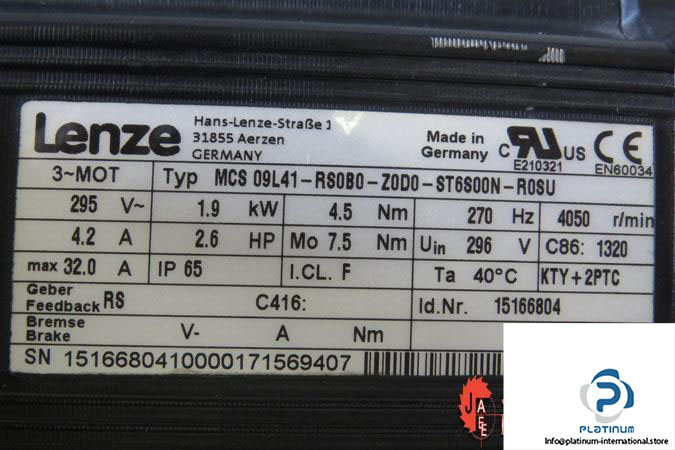

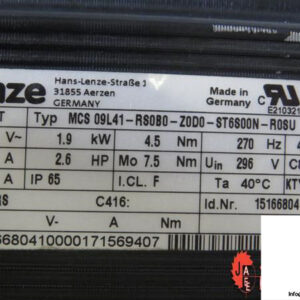

Manufacturer: LENZE
Type: Geared Servo Motor
Model: MCS 09L41-RS0B0-Z0D0-ST6S00N-R0SU
MRN: 1516680410000171569407
ID No.: 15166804
Servo Motor Technical Specifications
- Rated Voltage: 295 V
- Rated Current: 4.2 A
- Max Current: 32 A
- Motor Power: 1.9 kW
- Rated Torque: 4.5 Nm
- Stall Torque: 7.5 Nm
- Frequency: 270 Hz
- Rated Speed: 4050 rpm
- Input Voltage: 296 V
- Ambient Temperature: 40°C
- Protection: IP65
- Temperature Sensors: KTY + 2 PTC

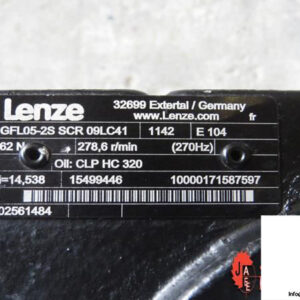

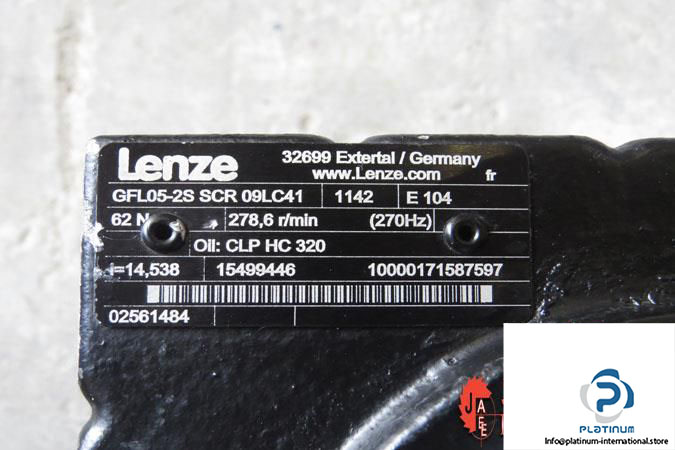

Attached Gearbox: LENZE GFL05-2S SCR 09LC41 1142 E104
- Part No.: 15499446 10000171587597
- Ref No.: 02561484
- Type: Shaft-Mounted Helical Gearbox
- Torque: 657 Nm
- Number of Stages: 2
- Speed at 270 Hz: 278.6 r/min
- Ratio: 14.538
- Ambient Temperature: 0 / 40°C
