Lenze MCS 19F30-RS0B0-A28N-ST5S00N-R0SU Servo Motor
Used
In stock5 unitsReady to ship

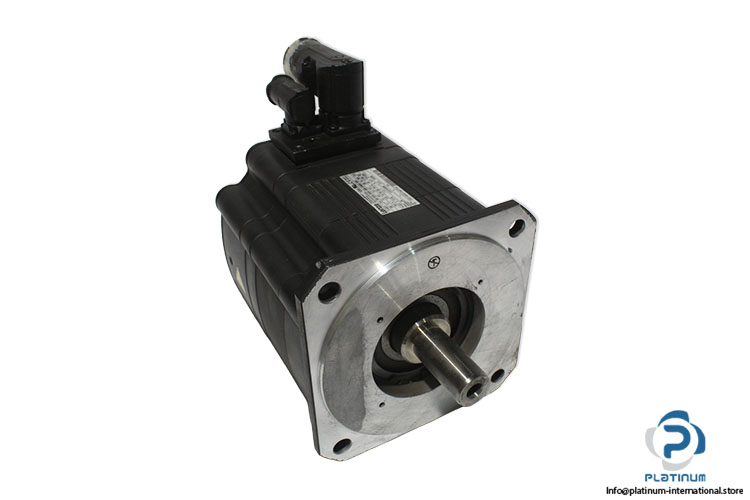

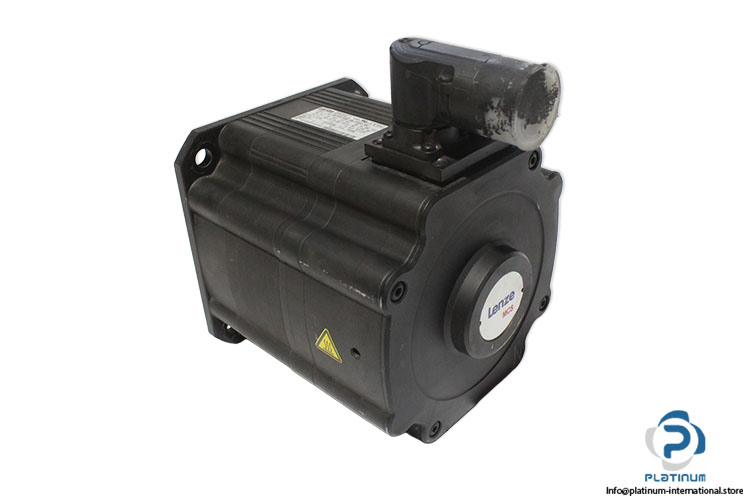

Servo Motor The LENZE MCS 19F30-RS0B0-A28N-ST5S00N-R0SU is a precision AC servo motor with resolver feedback, and IP65 protection, designed for reliable motion control and industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

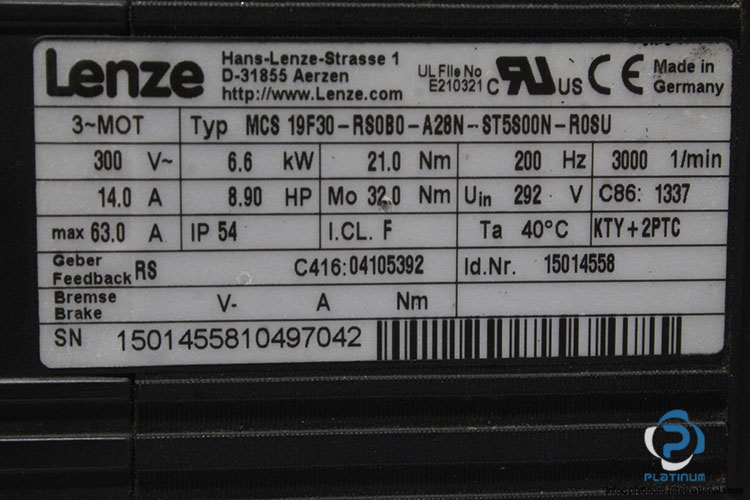

| Id.Nr. | 15014558 |
| SN | 1501455810497042 |
| Code | C416: 04105392 |
| Rated Torque[Nm] | 21 |
| Stall Torque[Nm] | 32 |
| Rated Power [kW] | 6.6 |
| Rated Voltage [VAC] | 300 |
| Input Voltage [VAC] | 292 |
| Rated Current [A] | 14 |
| Max Current [A] | 63 |
| Rated Speed [rpm] | 3000 |
| Max Ambient Temperature | 40°C |
| Rated Frequency [Hz] | 200 |
| Feedback System (Geber) | RS (Resolver) |
| Temperature Sensor | KTY + 2PTC |
| Insulation class | F |
| Protection Class | IP54 |

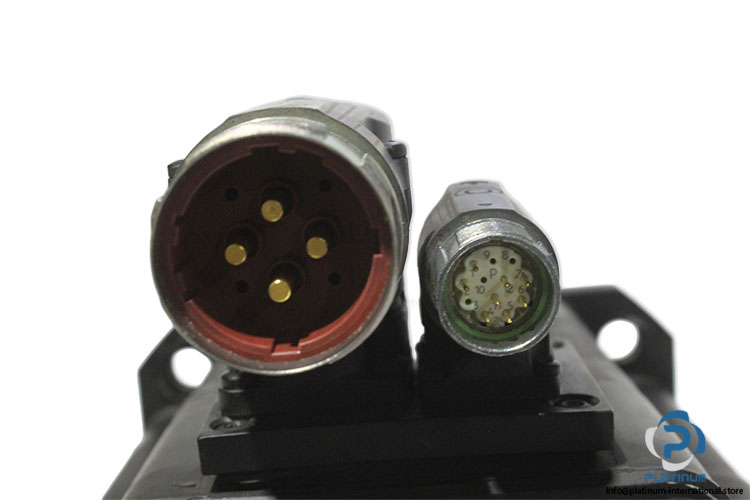

| Connection | Circular connector |
| Stock key | CON-003 |
| Condition | Used |
| SKU | 1100422 |
| Weight | 23,2 |
