Lenze MDEMA1M071-32 Gear Motor
Helical Geared Motor
Lenze MDEMA1M071-32 helical geared motor with integrated frequency inverter delivers smooth performance and energy-efficient operation. Power range up to 0.66 kW, ratio 5.667:1, and rated torque 14 Nm. Designed for conveyors, automation systems, and industrial machinery.Lenze MDEMA1M071-32 Helical Geared Motor with Integrated Frequency Inverter

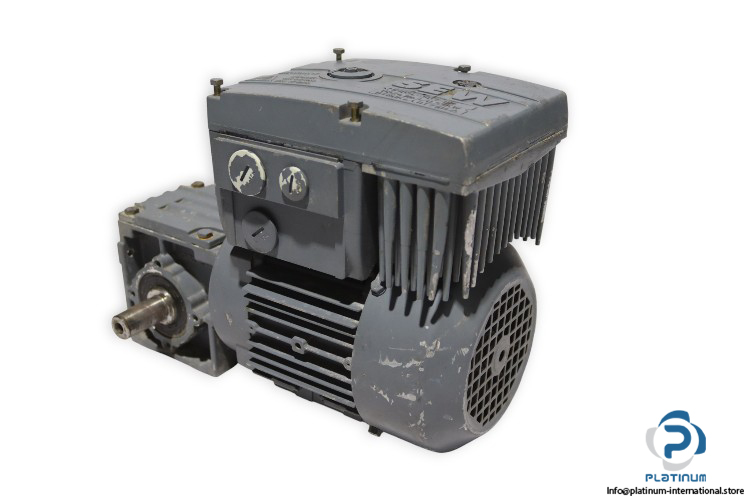

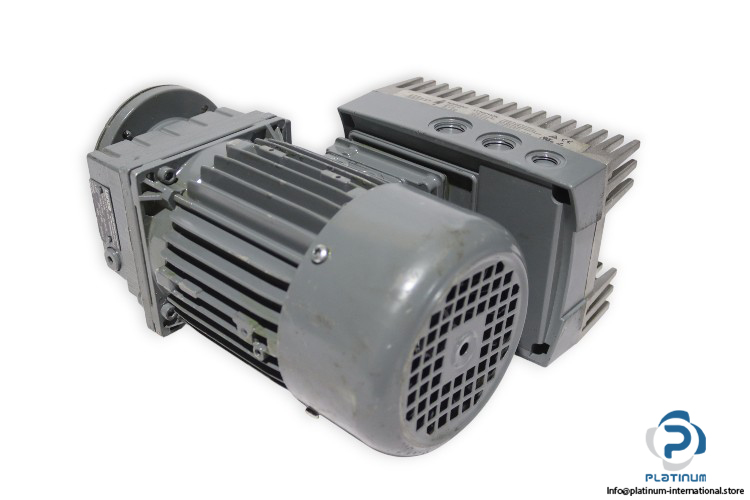

The Lenze MDEMA1M071-32 Helical Geared Motor is an advanced, high-performance drive solution that integrates a frequency inverter for precise speed control and efficient torque transmission. It is designed for modern automation systems that require compact construction, energy efficiency, and long-term operational reliability. Ideal for conveyors, material handling, and industrial machinery.
Manufacturer: Lenze
Type: Helical Geared Motor with Integrated Frequency Inverter
Model: MDEMA1M071-32
MAT. Nr.: 415901
AUF. Nr.: 10019074
Mot. Nr.: 00371634
Gearbox Attachment
This Lenze geared motor provides accurate motion control, superior mechanical strength, and excellent thermal efficiency. The integrated inverter simplifies installation and reduces the need for external control units, ensuring consistent torque delivery and optimized speed regulation. Built to comply with EN60034 standards and IP55 protection, it performs reliably in demanding industrial environments.

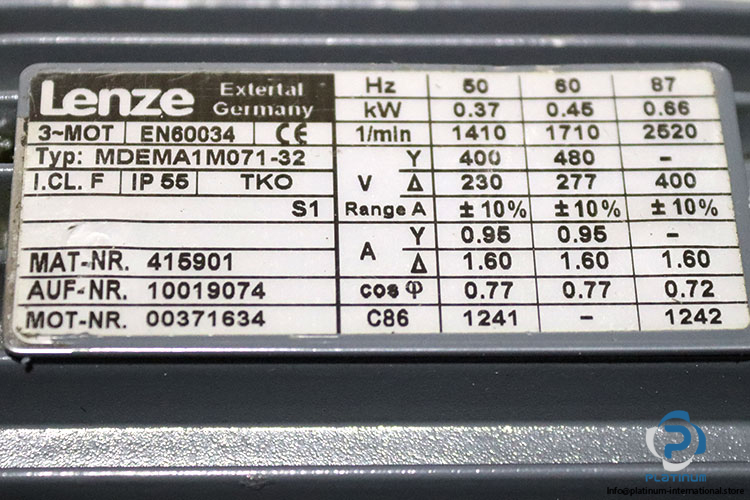

| Power (kW) | 0.37 (50 Hz), 0.46 (60 Hz), 0.66 (87 Hz) |
| Speed (rpm) | 1410 (50 Hz), 1710 (60 Hz), 2520 (87 Hz) |
| Voltage (Δ / Y) | 230 / 400 (50 Hz), 277 / 480 (60 Hz), 400 (87 Hz) |
| Current (A) | 1.60 / 0.95 (50 Hz), 1.60 / 0.95 (60 Hz), 1.60 (87 Hz) |
| Power Factor (cos φ) | 0.77 (50 Hz), 0.77 (60 Hz), 0.72 (87 Hz) |
| Standard | EN60034 |
| Protection Degree | IP55 |
| Thermal Class | F |
| Part No. | 1473999 / 00627976 |
| Code | 0608 15072597 |

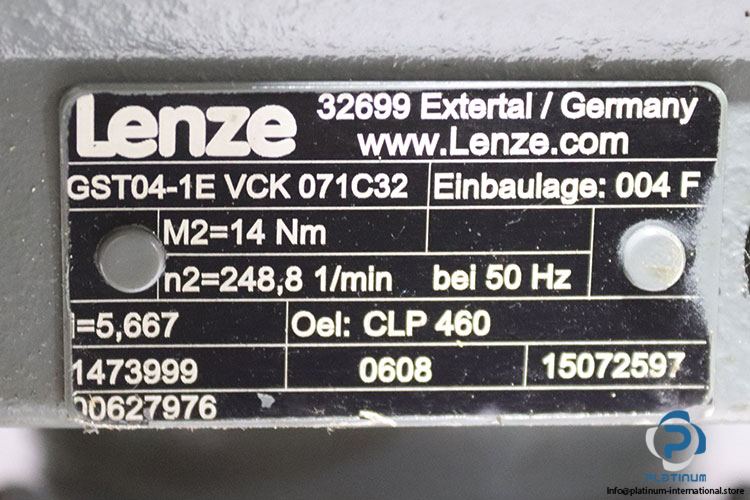

| Ratio (i) | 5.667 |
| Mounting Position | 004 F |
| Rated Output Torque (M2) | 14 Nm |
| Output Speed (n2) | 248.8 rpm at 50 Hz |
| Gear Ratio (i) | 5.667:1 |
| Lubrication | CLP 460 Oil |
