Lenze MDFKARS080-22 Servo Motor
Used
In stock1 unitReady to ship
“ 3.9 kW, 390V, 9.1A, 3.9 Nm torque, 3455 min»¹ speed, IP54 protection. Comes with 4656 EZ Brake for enhanced control.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

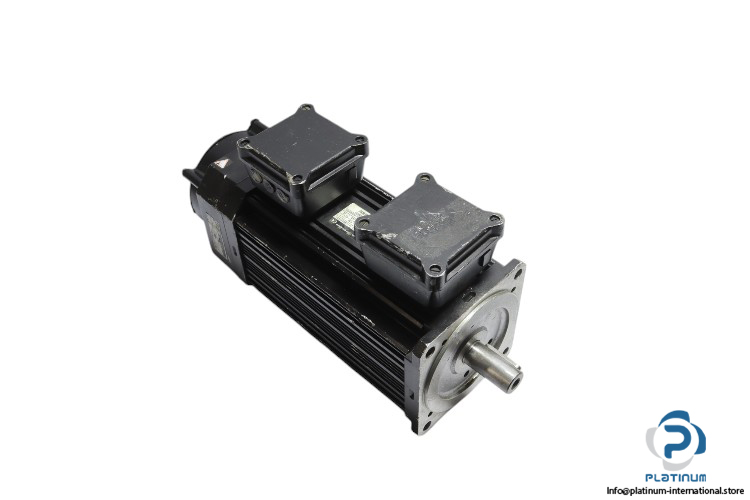

Lenze MDFKARS080-22 Servo Motor with 4656 EZ Brake
The Lenze MDFKARS080-22 Servo Motor is a high-performance motor engineered for precise motion control applications. With a robust design and a protection class of IP54, it is ideal for demanding industrial environments. This servo motor comes equipped with a 4656 EZ Brake for enhanced control and safety.
Technical Specifications:

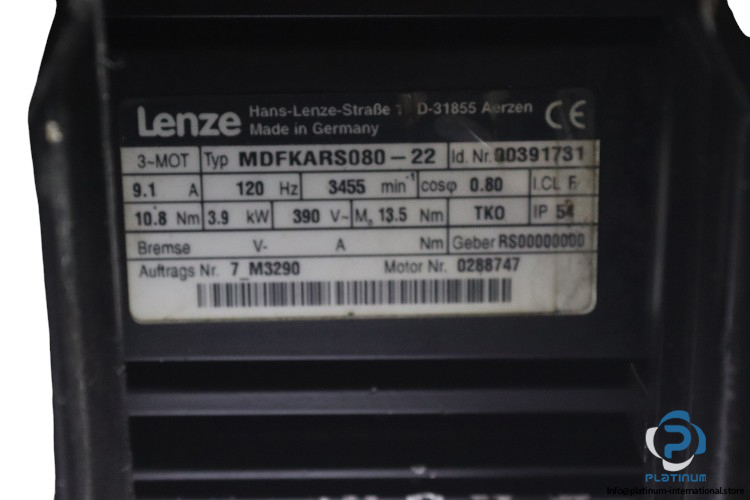

**Servo Motor Specifications:**
- Manufacturer: Lenze
- Type: Servo Motor
- Model: MDFKARS080-22
- Rated Power: 3.9 kW
- Rated Voltage: 390 V
- Rated Current: 9.1 A
- Rated Torque: 3.9 Nm
- Stall Torque: 13.5 Nm
- Rated Speed: 3455 min»¹
- Frequency: 120 Hz
- Protection Class: IP54
- Thermal Class: F
- Power Factor (cos): 0.80

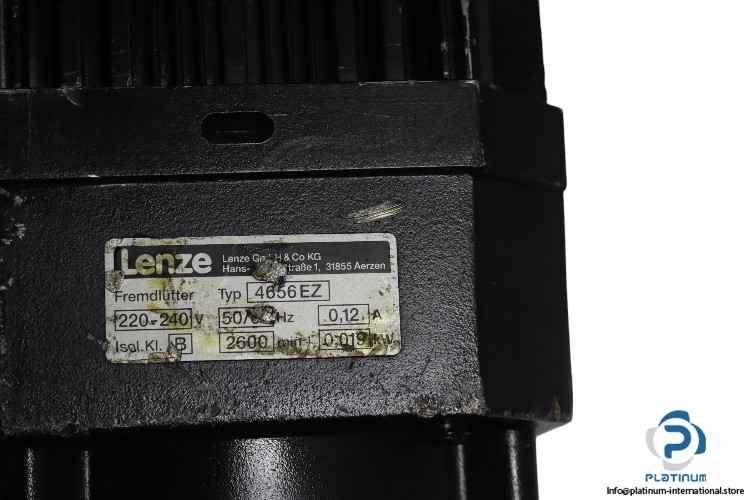

**4656 EZ Brake Specifications:**
- Rated Power: 0.019 kW
- Rated Voltage: 220-240 V AC
- Rated Current: 0.12 A
- Rated Speed: 2600 min»¹
- Frequency: 50/60 Hz
- Thermal Class: B
Designed for high efficiency and precision, the Lenze MDFKARS080-22 Servo Motor with an attached 4656 EZ Brake offers reliable performance for demanding motion control applications.
