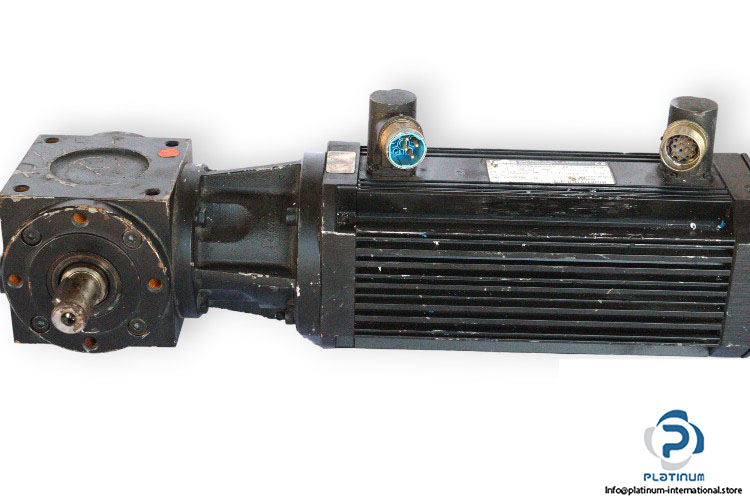

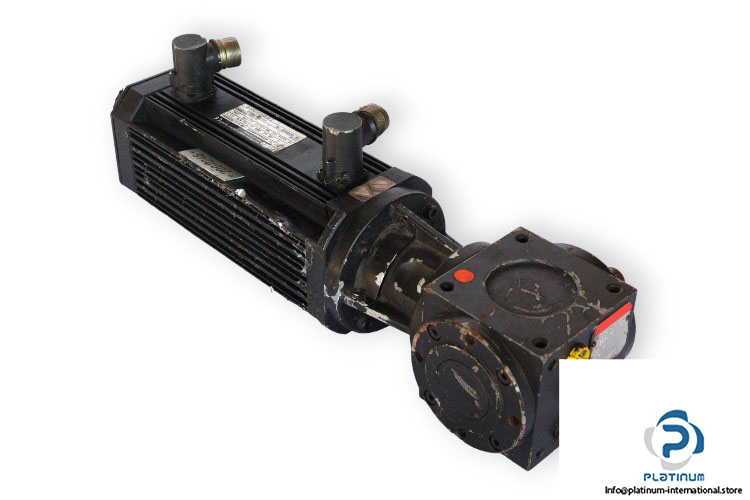

Lenze MDSKARS056-22 Servo Motor
Used
In stock1 unitReady to ship

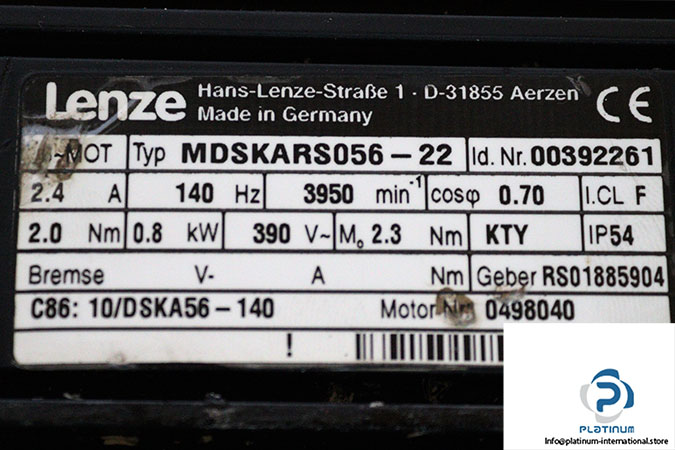

Type: Synchronous servo motors series Model: MDSKARS056-22 Id. Nr: 00392261
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Type: Synchronous servo motors series
Model: MDSKARS056-22
Id. Nr: 00392261
Speed n rated: 3950 rpm
Current I rated: 2.4 A
Voltage V rated: 390 V
Torque M rated: 2 Nm
Power Prated: 0.8 Kw
M0: 2.3 Nm
I0: 2.55 A
Maximum Speed: 8000 rpm
Maximum torque Mmax: 10 Nm
Inertia: 2.4 kgcm2

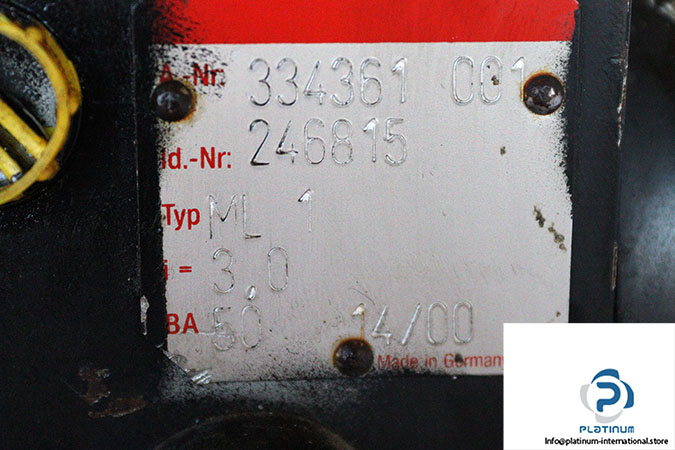

Gear type: ML
Gear ratio: 3,0
Frequency frated: 140 Hz
Protection class: IP54
Power Factor: COS 0.70
Modules: Resolver
