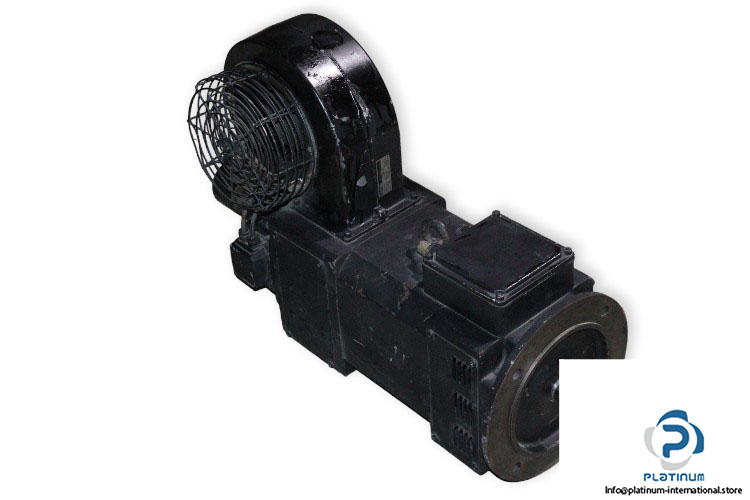

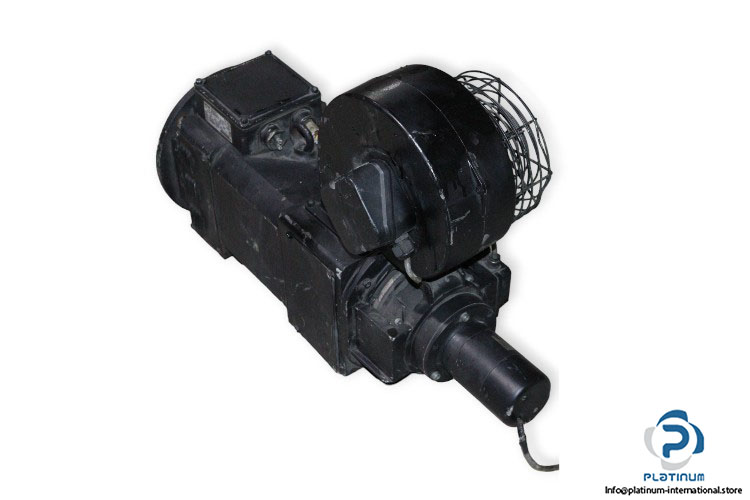

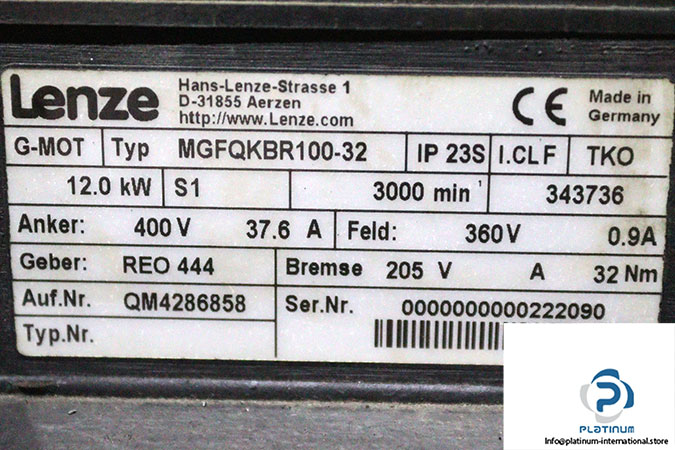

Lenze MGFQKBR100-32 DC Motor

Manufacturer: Lenze
Type: DC Motors
Model: MGFQKBR100-32

Rated Power [kW]: 12.0
Anker Voltage [Vdc]: 400
Feld Voltage [Vdc]: 360
Anker Current [Adc]: 37.6
Feld Current [Adc]: 0.9
Frequency [Hz]: 50
Rated Speed [rpm]: 3000
Insulation Class: F
Duty: S1
Protection Class [IP]: 23S
Brake Voltage [V]: 205
Brake Torque [Nm]: 32

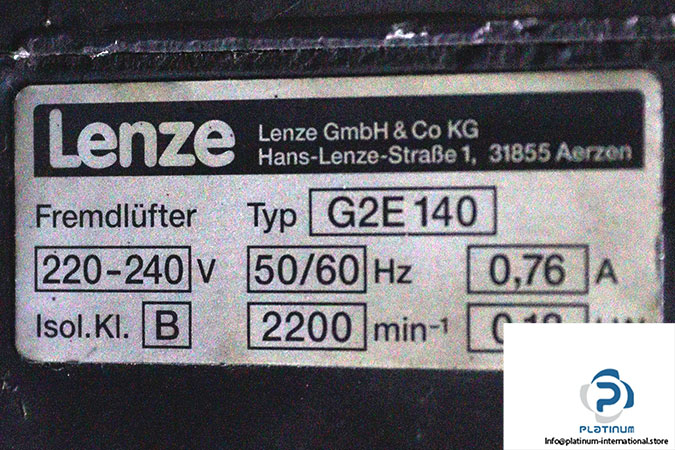

Attachments: Lenze G2E 140 Fan
Manufacturer: Lenze
Type: Fans
Model: G2E140
Rated Voltage [V]: 220-240
Rated Speed [rpm]: 2200
Rated Current [A]: 0.76
Rated Power [W]: 0.18
Frequency [Hz]: 50/60
Insulation Class: B
Protection Class [IP]: 44

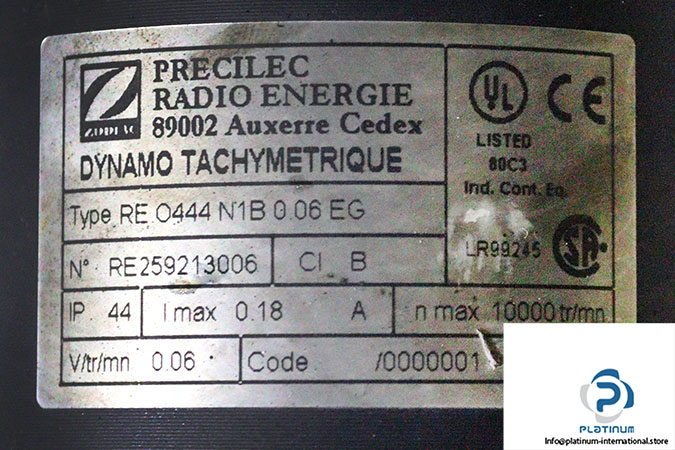

Dynamo RE O444 N1B 0 06 EG Tachometer Generator
Manufacturer: Dynamo
Type: Tachometer Generator
Model: REO444N1B006EG
Max. Current [A]: 0.18
Constant Voltage [V/krpm]: 0.06
Max. Speed [rpm]: 10000
Insulation Class: B
Protection Class [IP]: 44
